Precision control caliper 500 x 150 mm without points DIN 862

Preview: Precision control caliper 500 x 150 mm without points DIN 862 Preview: Technical drawing Precision control caliper 500 x 150 mm without points DIN 862
Precision control caliper 500 x 150 mm without points DIN 862

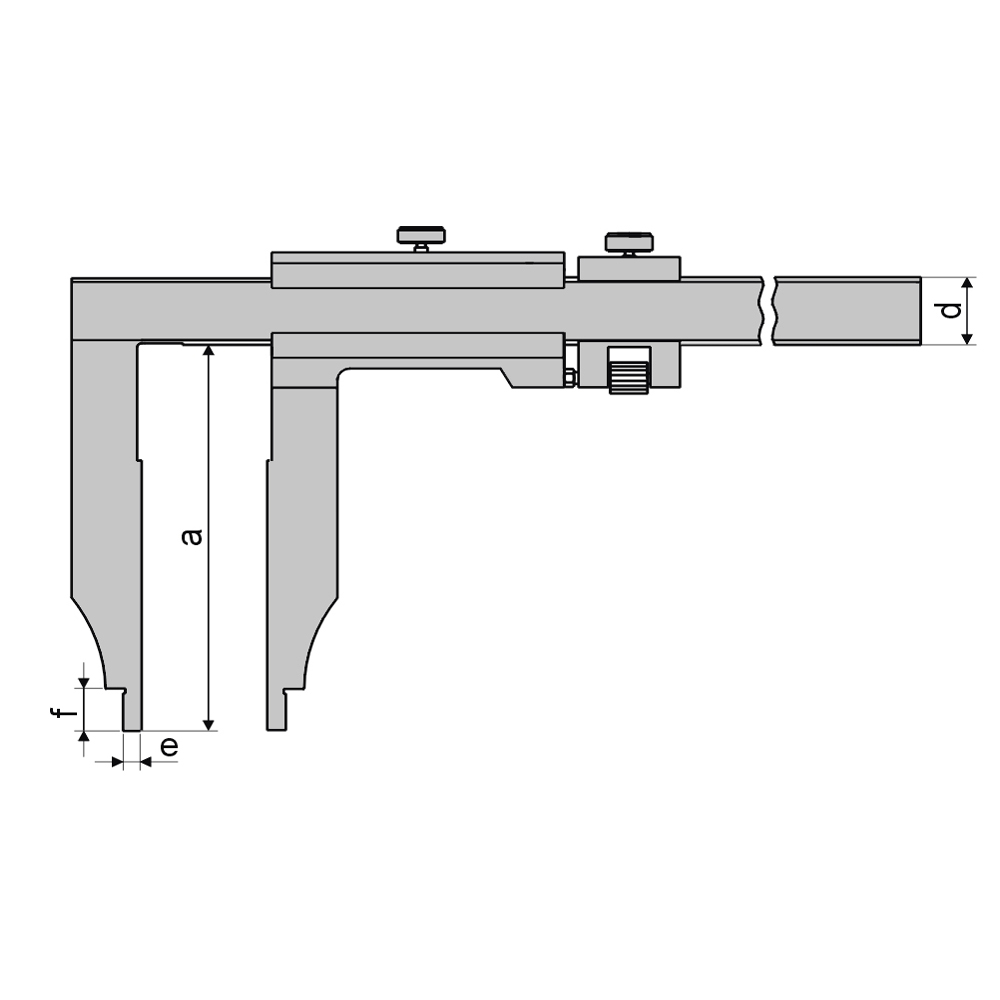

Technical drawing Precision control caliper 500 x 150 mm without points DIN 862

€198.60 *
€236.33 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 201.315
  • Customs tariff number: 9017 3000
  • European article number: 4054469101347
  • Weight: 1,9 kg
  • In stock: 4
Description Technical data Evaluations 0
Description
Precison control caliper 500 x 150 mm - made of stainless steel, hardened - satin chrome... more
Close menu
Product information "Precision control caliper 500 x 150 mm without points DIN 862"

Precison control caliper 500 x 150 mm

- made of stainless steel, hardened
- satin chrome finished
- monoblock
- for outside, inside and step measuring
- with fine adjustment
- reading 0,02 mm / 1/1000"
- accuracy DIN 862
- in case/box (for transport only)

Jaws 150 mm
Range 500 mm

Range: 0 - 500 mm
Type: analogue, made of stainless steel, hardened, with fine adjustment, without points
Nonius: 1/50 / 1/1000"
Jaws: 150 mm
Accuracy: DIN 862
Related links to "Precision control caliper 500 x 150 mm without points DIN 862"
Technical data
Messbereich mm Range mm Schnabellänge a mm  Jaws a mm... more
Zurück
Messbereich mm
Range mm		 Schnabellänge a mm
Jaws a mm		 Ablesung mm
Reading mm		 d mm e mm f mm
500 / 20" 150 0,02 / 1/1000" 31 10 15
