Double dial indicator 10 x 0,01 mm with tolerance marks

Preview: Double dial indicator 10 x 0,01 mm with tolerance marks Preview: Technical drawing Double dial indicator 10 x 0,01 mm with tolerance marks
Double dial indicator 10 x 0,01 mm with tolerance marks

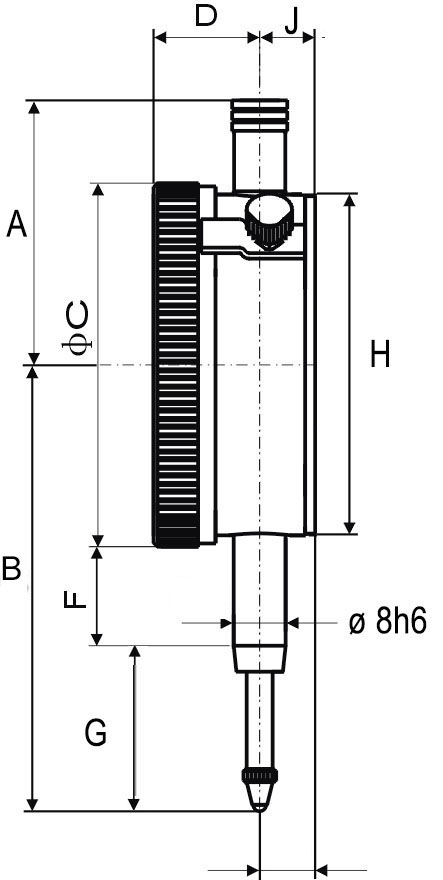

Technical drawing Double dial indicator 10 x 0,01 mm with tolerance marks

€75.00 *
€89.25 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 208.012
  • Customs tariff number: 9031 8020
  • European article number: 4054469103754
  • Weight: 0,6 kg
  • In stock: 6
Description Technical data Evaluations 0
Description
Double dial indicator 10 x 0,01 mm - with double dial indicator (front and backside) -... more
Close menu
Product information "Double dial indicator 10 x 0,01 mm with tolerance marks"

Double dial indicator 10 x 0,01 mm

- with double dial indicator (front and backside)
- accuracy according to manufacture standard
- metal casing
- with tolerance marks
- shank Ø 8 h6

Range: 10 mm

Range: 10 mm
Type: analogue, with metal casing
Reading: 0,01 mm
Accuracy: 17 µm
Ø : 58 mm
Related links to "Double dial indicator 10 x 0,01 mm with tolerance marks"
Technical data
Messbereich mm Range mm Ablesung mm Reading mm Genauigkeit... more
Zurück
Messbereich mm
Range mm		 Ablesung mm
Reading mm		 Genauigkeit µm
Accuracy µm		 Außenring mm
Dial diameter mm		 A + B mm F mm G mm H mm
10 0,01 17 58 110 18 20,5 53,5
