Digital twist drill caliper 118° lead angle

Preview: Digital twist drill caliper 118° lead angle Preview: Technical drawing Digital twist drill caliper 118° lead angle
Digital twist drill caliper 118° lead angle

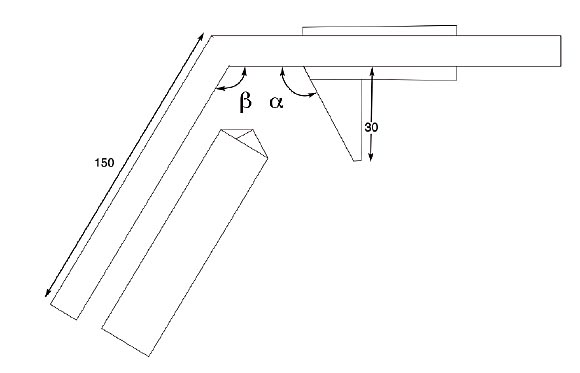

Technical drawing Digital twist drill caliper 118° lead angle

€131.40 *
€156.37 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 240.145
  • Customs tariff number: 9017 3000
  • European article number: 4054469168951
  • Weight: 0,4 kg
  • In stock: 38
Description Technical data Evaluations 0
Description
Digital twist drill caliper 118° - for precision measuring of knife length of twist drill... more
Close menu
Product information "Digital twist drill caliper 118° lead angle"

Digital twist drill caliper 118°

- for precision measuring of knife length of twist drill with lead angle 118°
- measuring system with 3 V
- electronic in metal casing
- made of stainless steel, hardened
- with on/off, zero, unit and hold button
  (with hold button the measuring value can be memorized for later reading)
- data output RB 5
- in case/box

Lead angle α: 118° / β: 121°
Range 0 - 50 mm

Related links to "Digital twist drill caliper 118° lead angle"
Technical data
Messbereich mm Range mm Einschnittwinkel °  lead angle... more
Zurück
Messbereich mm
Range mm		 Einschnittwinkel °
lead angle °		 α ß Genauigkeit mm
Accuracy mm		 a mm b mm d mm
50 118° 118° 121° 0,05 30 21 16
