Digital universal caliper 0 - 1000 mm range

Preview: Digital universal caliper 0 - 1000 mm range Preview: Technical drawing Digital universal caliper 0 - 1000 mm range Preview: Anwendungsbeispiel 1 Digital-Universal-Messschieber 0 - 1000 mm Messbereich Preview: Application example Digital universal caliper 0 - 1000 mm range Preview: Application example Digital universal caliper 0 - 1000 mm range
Digital universal caliper 0 - 1000 mm range

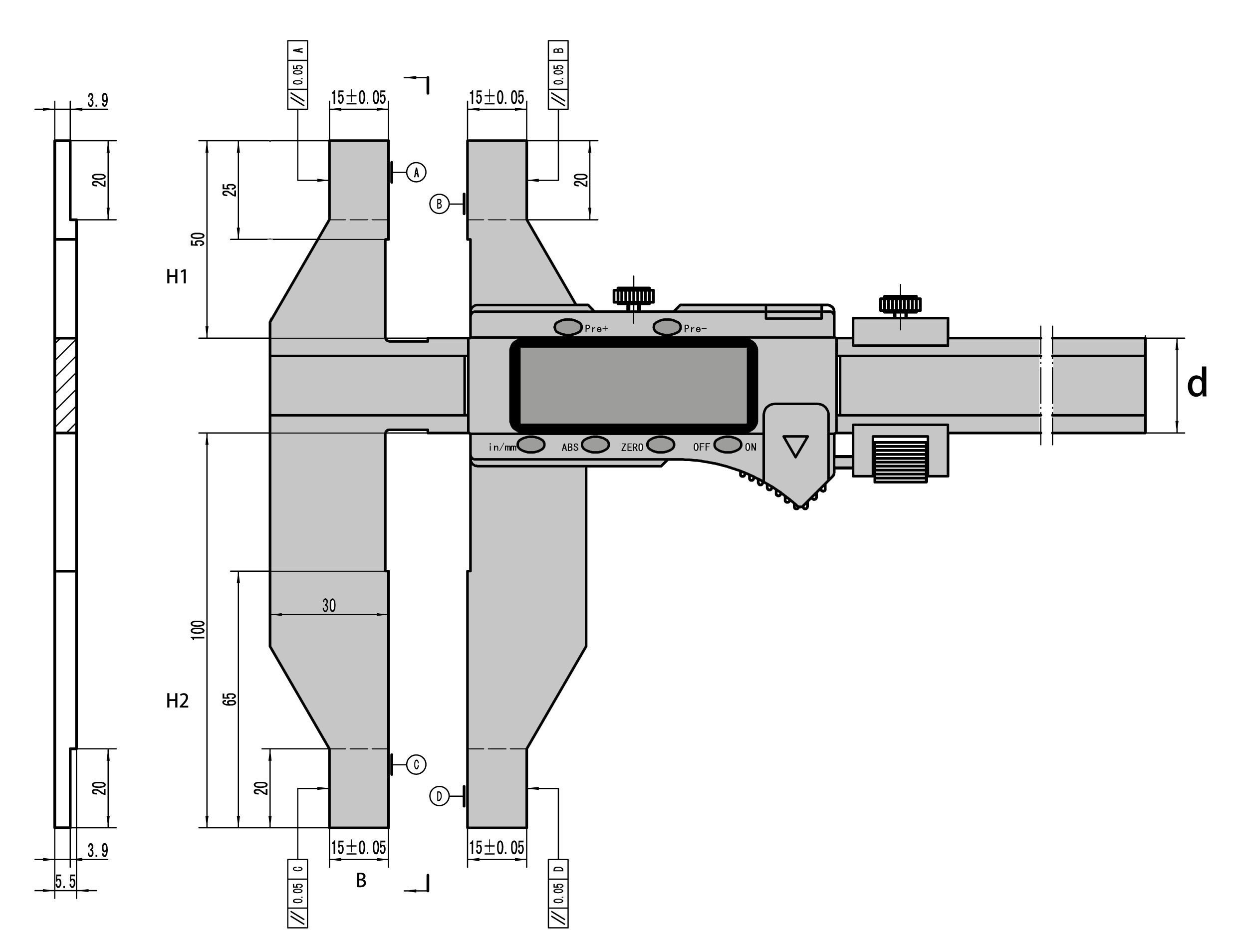

Technical drawing Digital universal caliper 0 - 1000 mm range
Anwendungsbeispiel 1 Digital-Universal-Messschieber 0 - 1000 mm Messbereich
Application example Digital universal caliper 0 - 1000 mm range
Application example Digital universal caliper 0 - 1000 mm range

€414.00 *
€492.66 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 240.204
  • Customs tariff number: 9017 3000
  • European article number: 4054469158273
  • Weight: 2,5 kg
  • In stock: 1
Description Technical data Product Safety Information Evaluations 0
Description
Digital universal caliper 0 - 1000 mm - for inside, outside, wall thickness or hole... more
Close menu
Product information "Digital universal caliper 0 - 1000 mm range"

Digital universal caliper 0 - 1000 mm

- for inside, outside, wall thickness or hole distance measuring
- made of stainless steel, hardened
- measuring tips can be mounted on above or down side
- numerous measuring inserts (optional)
- with ON/OFF, mm/inch, ABS/INC and ZERO/PRESET button
- data output (RB 2)
- reading 0,01 mm
- accuracy 0,06 mm
- in case/box

Range 0 - 1000 mm

Images 3 - 5: application examples

Delivery: base caliper without measuring tips,
matching size tips please order separate!

Range: 0 - 1000 mm
Type: digital, made of stainless steel, hardened, Measuring system with 3 V
Accuracy: 0,06 mm
Reading: 0,01 mm
Data output: RB 2
Related links to "Digital universal caliper 0 - 1000 mm range"
Technical data
Messbereich mm Range mm Genauigkeit mm Accuracy mm H1 mm... more
Zurück
Messbereich mm
Range mm		 Genauigkeit mm
Accuracy mm		 H1 mm H2 mm B mm d mm
0 - 1000 0,06 50 100 15 31
