Digital universal caliper 200 mm range 3V

Preview: Digital universal caliper 200 mm range 3V Preview: Technical drawing Digital universal caliper 200 mm range 3V Preview: Application example Digital universal caliper 200 mm range 3V Preview: Application example Digital universal caliper 200 mm range 3V Preview: Application example Digital universal caliper 200 mm range 3V

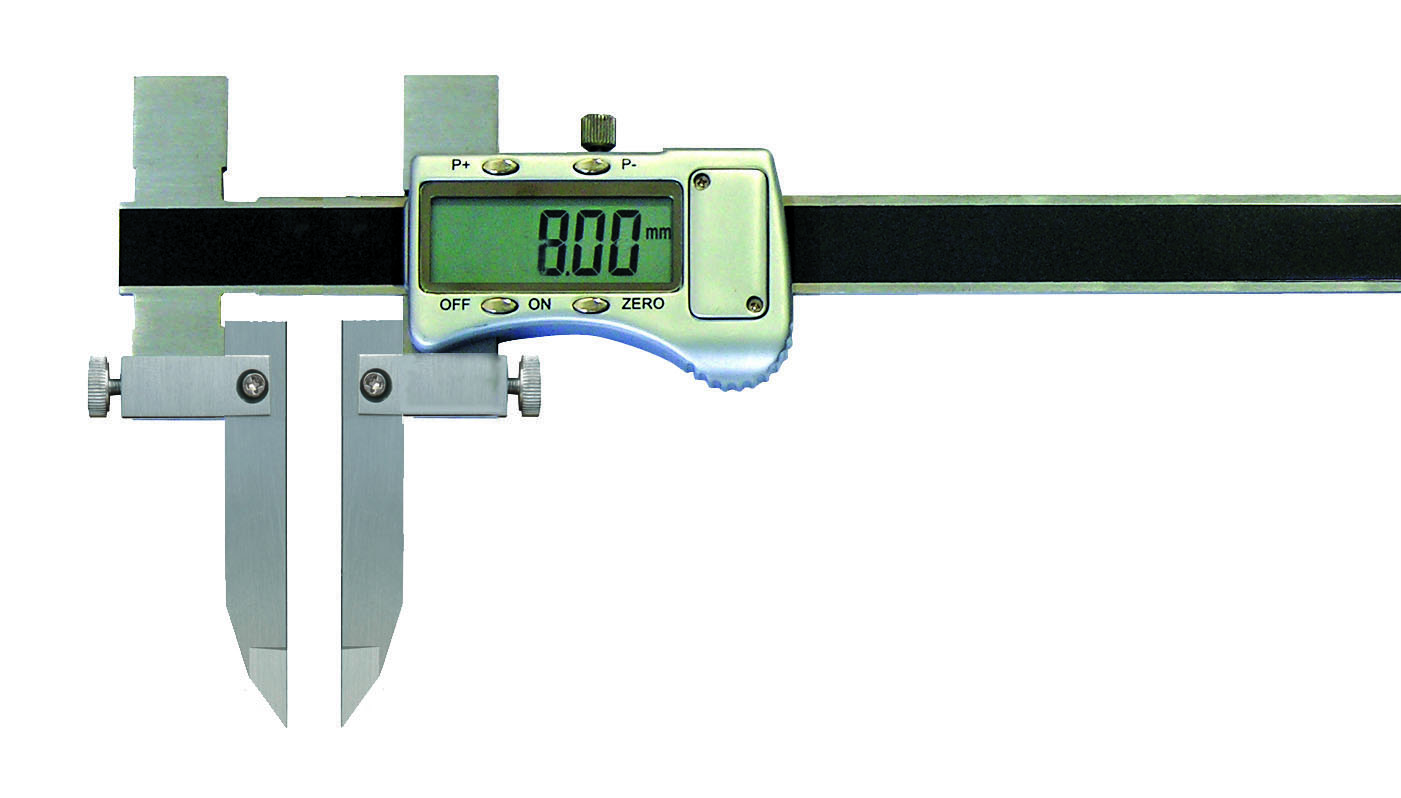

Digital universal caliper 200 mm range 3V

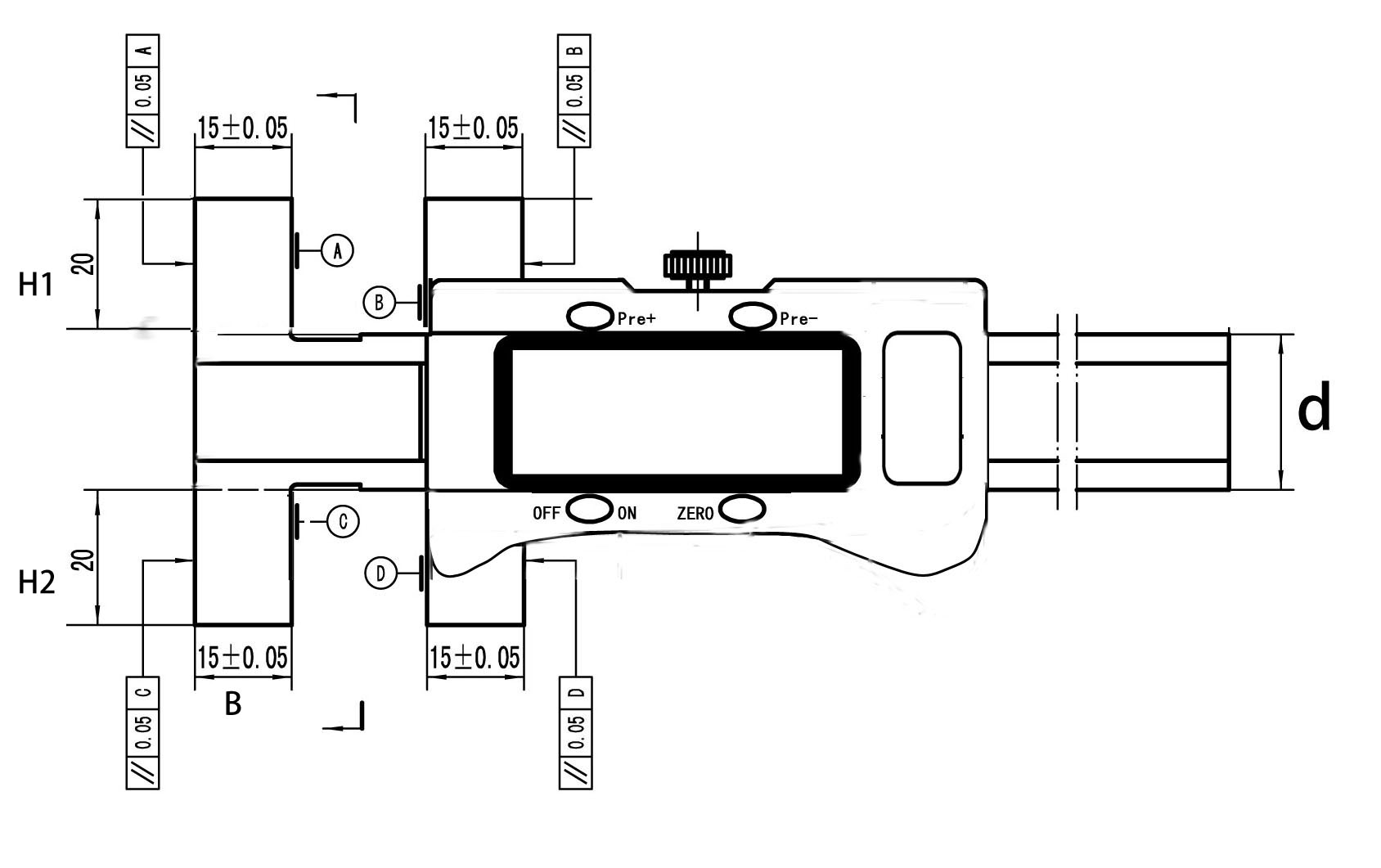

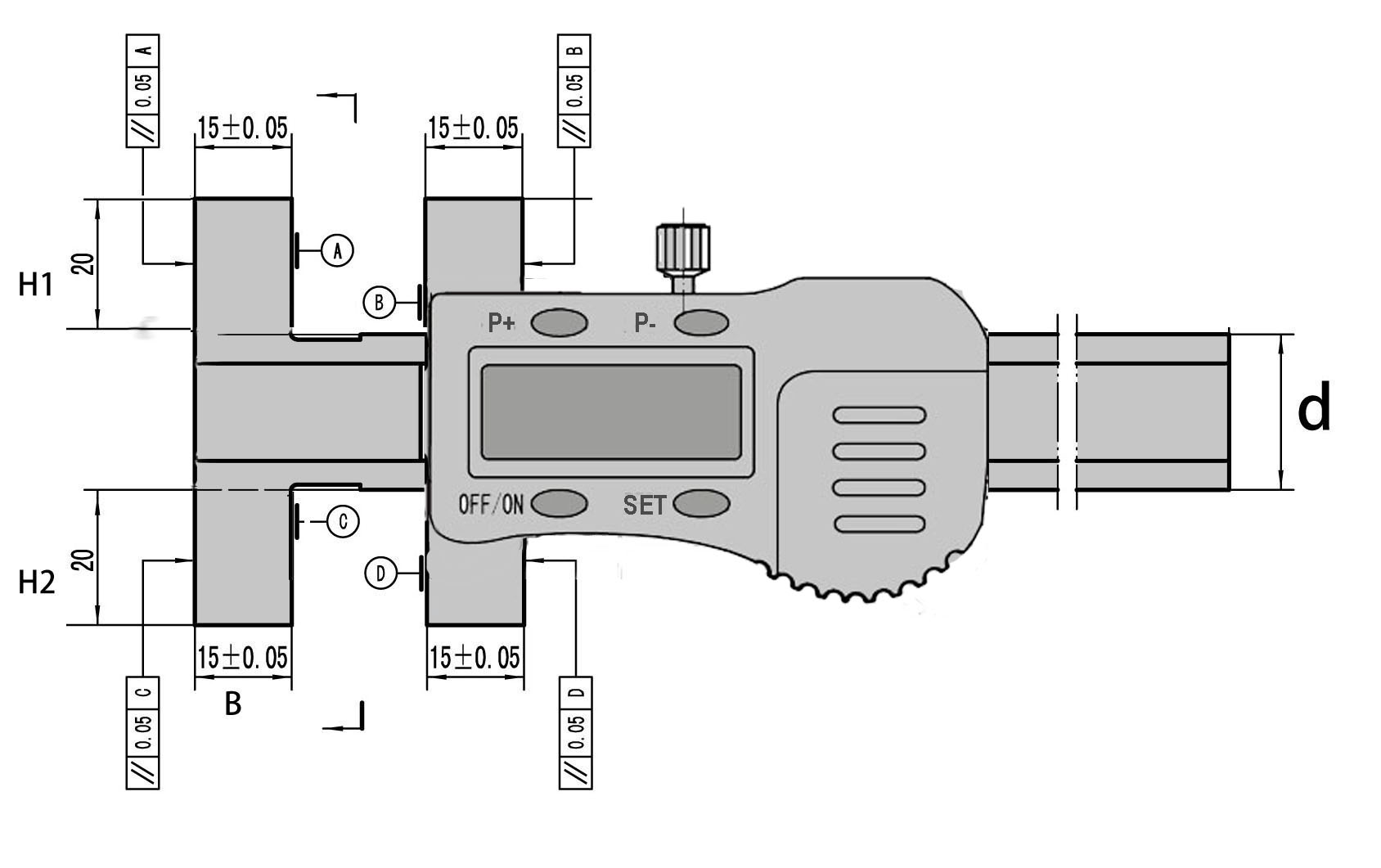

Technical drawing Digital universal caliper 200 mm range 3V

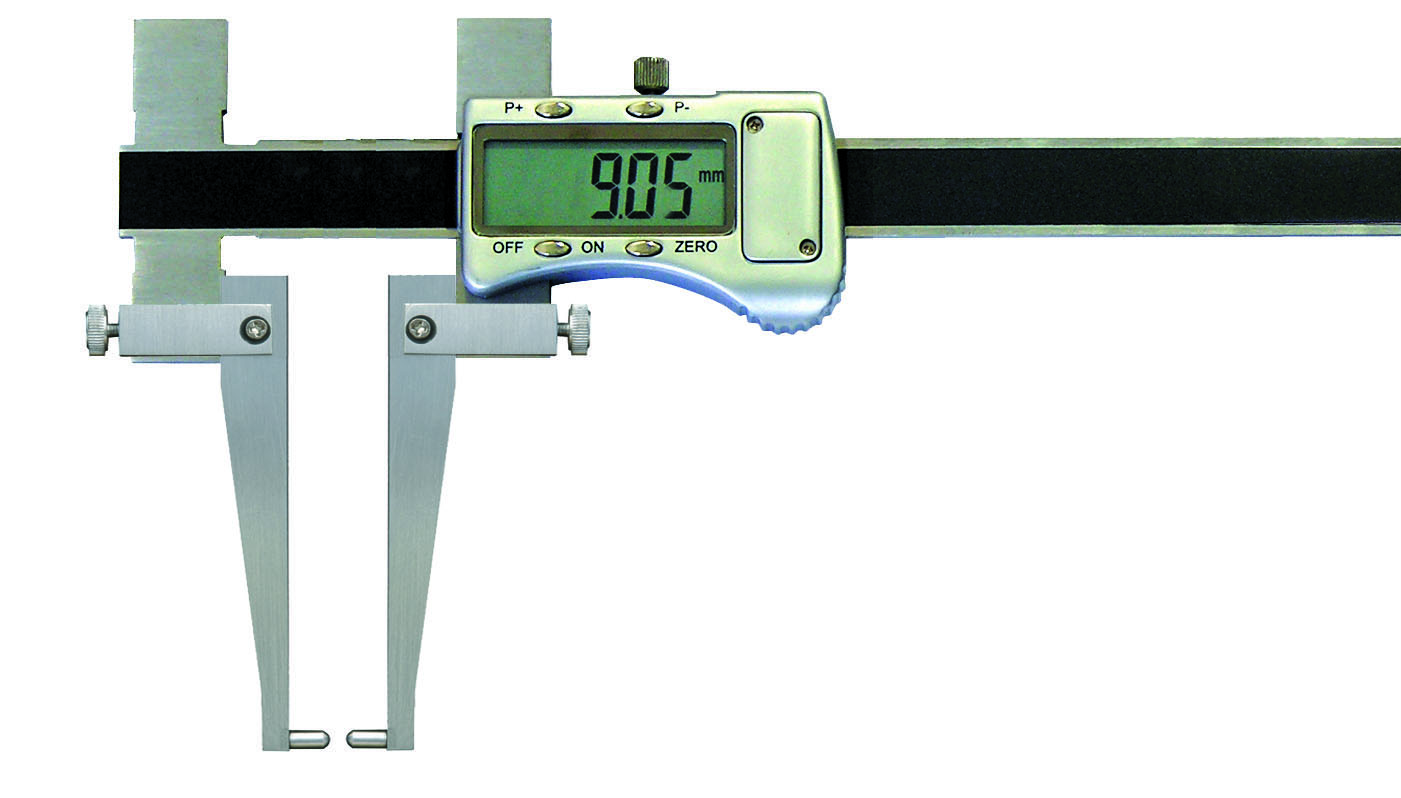

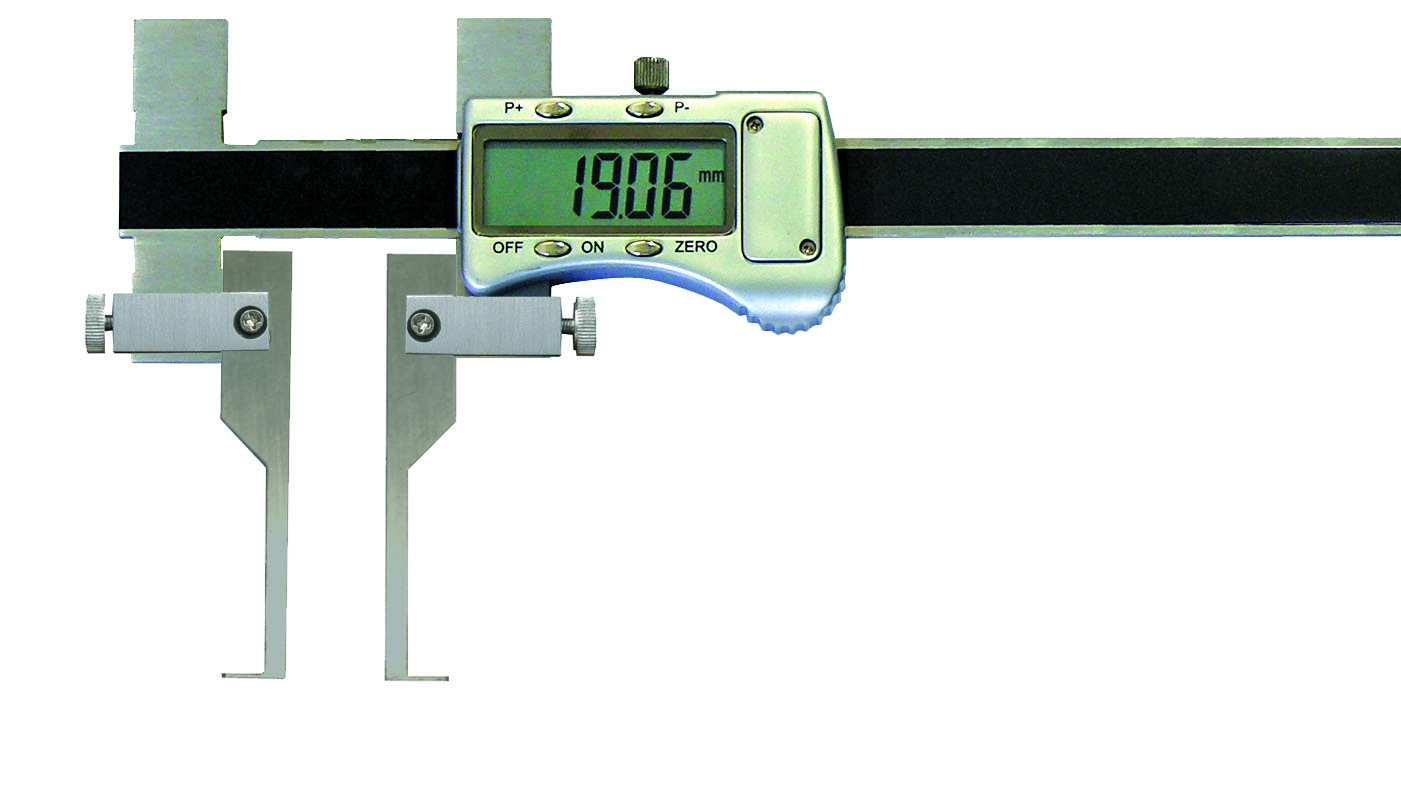

Application example Digital universal caliper 200 mm range 3V
Application example Digital universal caliper 200 mm range 3V
Application example Digital universal caliper 200 mm range 3V

€76.80 *
€91.39 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 240.201.N
  • Customs tariff number: 9017 3000
  • European article number: 4054469159973
  • Weight: 1,25 kg
  • In stock: 6
Description Technical data Product Safety Information Evaluations 0
Description
Digital universal caliper 0 - 200 mm - for inside, outside, wall thickness or hole... more
Close menu
Product information "Digital universal caliper 200 mm range 3V"

Digital universal caliper 0 - 200 mm

- for inside, outside, wall thickness or hole distance measuring
- made of stainless steel, hardened
- measuring tips can be mounted on above or down side
- numerous measuring inserts (optional)
- measuring system with 3 V
- metal casing
- with ON/OFF and ZERO/PRESET button
- data output (RB 5)
- reading 0,01 mm
- accuracy 0,04 mm

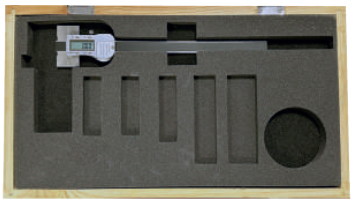

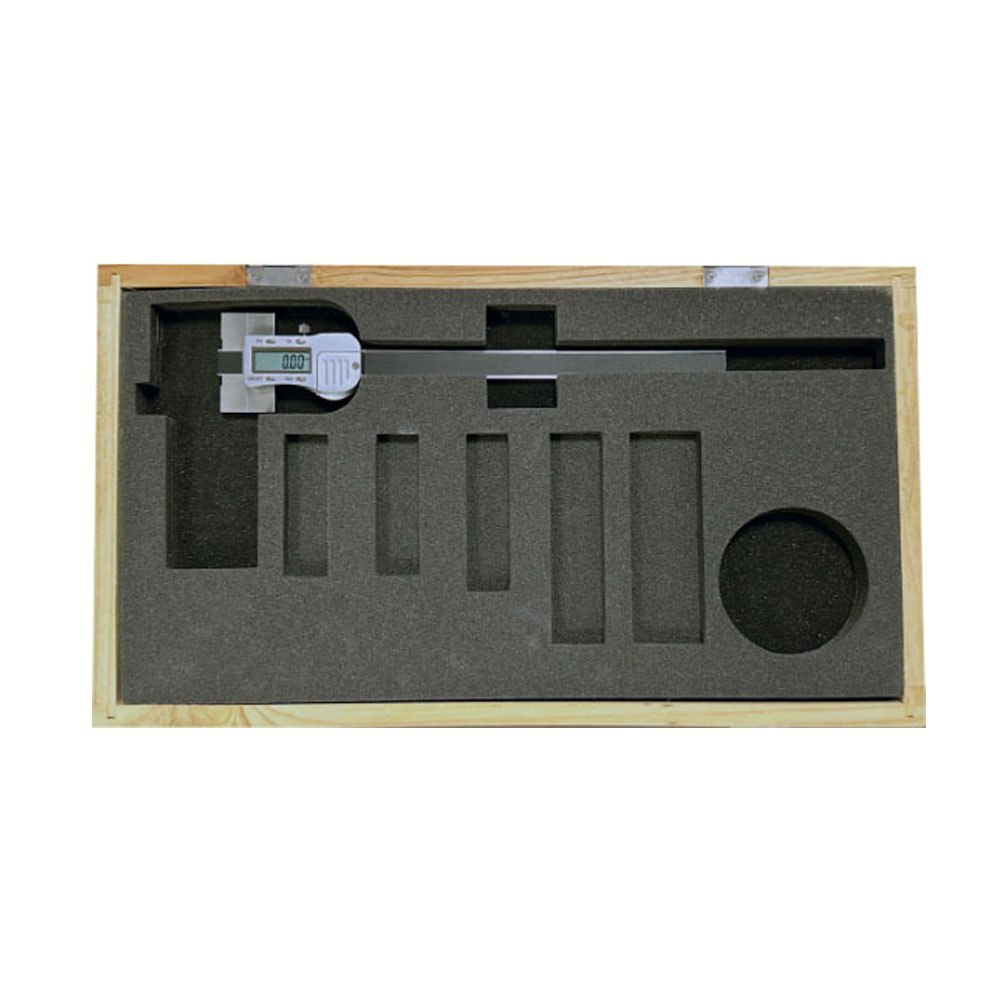

- in case/box

Range 0 - 200 mm

Images 3 - 5: application examples

Delivery: base caliper without measuring tips,
matching size tips please order separate!

Range: 0 - 200 mm
Type: digital, made of stainless steel, hardened, Measuring system with 3 V, with metal casing
Accuracy: 0,04 mm
Reading: 0,01 mm
Data output: RB 5
Related links to "Digital universal caliper 200 mm range 3V"
Technical data
Messbereich mm Range mm Genauigkeit mm Accuracy mm H1 mm... more
Zurück
Messbereich mm
Range mm		 Genauigkeit mm
Accuracy mm		 H1 mm H2 mm B mm d mm
0 - 200 0,04 20 20 15 16
