Digital micrometers head 0-50 mm range DIN 863

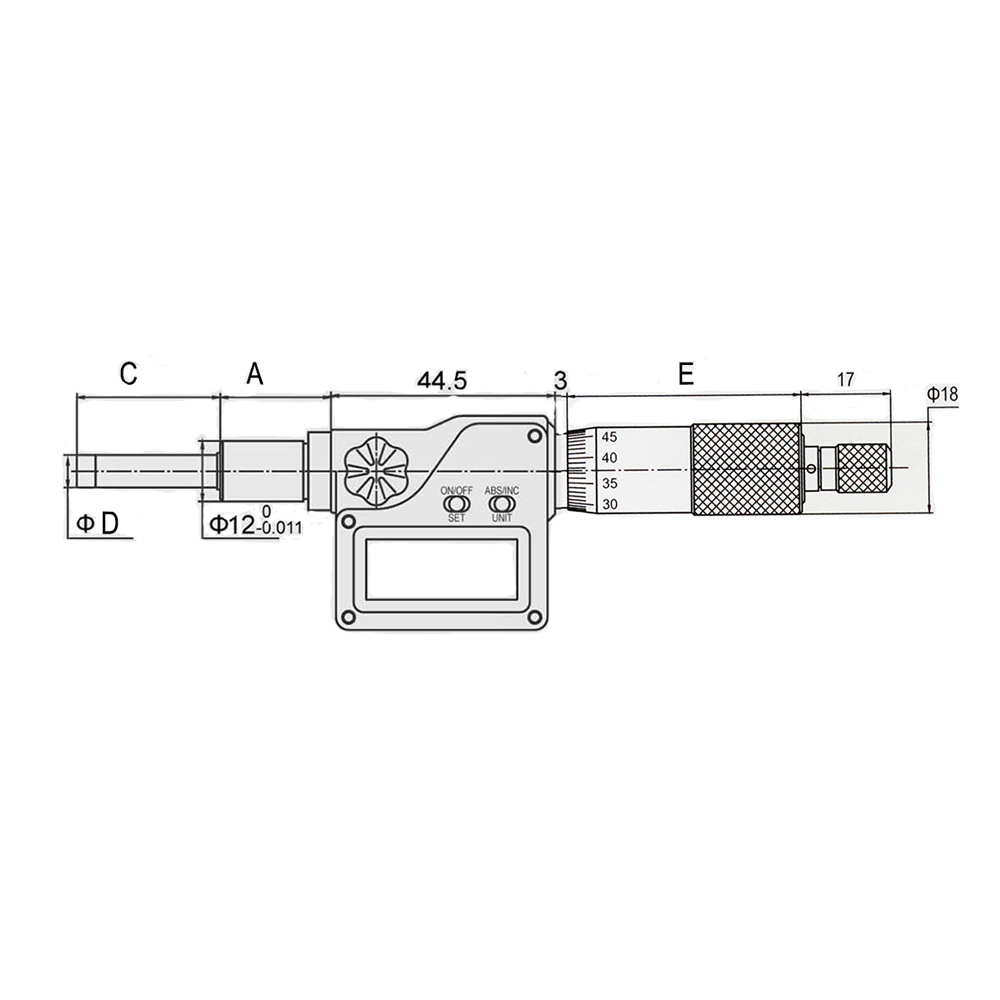

Preview: Digital micrometers head 0-50 mm range DIN 863 Preview: Technical drawing Digital micrometers head 0-50 mm range DIN 863
Digital micrometers head 0-50 mm range DIN 863
Technical drawing Digital micrometers head 0-50 mm range DIN 863

€192.00 *
€228.48 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 302.093.C
  • Customs tariff number: 9017 3000
  • European article number: 4054469114545
  • Weight: 0,5 kg
  • In stock: 5
Description Technical data Product Safety Information Evaluations 0
Description
Digital micrometers head 0-50 mm range - with carbide measung face Ø 6,5 mm - with ratchet... more
Close menu
Product information "Digital micrometers head 0-50 mm range DIN 863"

Digital micrometers head 0-50 mm range

- with carbide measung face Ø 6,5 mm
- with ratchet
- shank 12 h7
- reading 0,001 mm or 0,00005"
- display with on/off, abs/inc, unit and set button
- accuracy 0,006 mm, DIN 863

Measuring face: flat
Range: 0 - 50 mm

Related links to "Digital micrometers head 0-50 mm range DIN 863"
Technical data
Messbereich mm Range mm Messfläche Meas. Face Genauigkeit... more
Zurück
Messbereich mm
Range mm		 Messfläche
Meas. Face		 Genauigkeit mm
Accuracy mm		 A mm C mm D mm E mm
0- 50 planparallel
flat		 0,006 35,5 53 7,5 72
