Outside micrometer 25 - 50 mm with friction ratchet DIN 863

Preview: Outside micrometer 25 - 50 mm with friction ratchet DIN 863 Preview: Technical drawing Outside micrometer 25 - 50 mm with friction ratchet DIN 863
Outside micrometer 25 - 50 mm with friction ratchet DIN 863

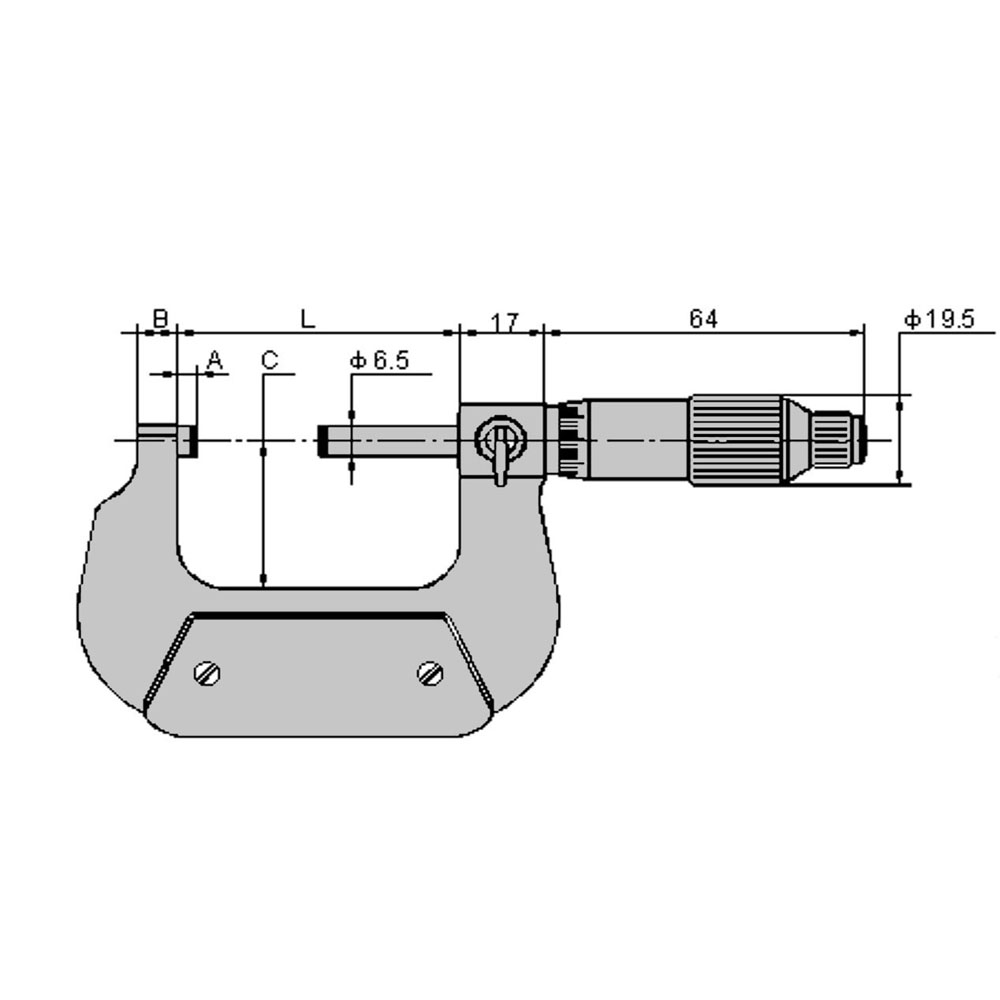

Technical drawing Outside micrometer 25 - 50 mm with friction ratchet DIN 863

€25.38 *
€30.20 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 304.229
  • Customs tariff number: 9017 3000
  • European article number: 4054469116464
  • Weight: 0,5 kg
  • In stock: 77
Description Technical data Evaluations 0
Description
Outside micrometer 25 - 50 mm with friction ratchet - with ratchet friction thimble - with... more
Close menu
Product information "Outside micrometer 25 - 50 mm with friction ratchet DIN 863"

Outside micrometer 25 - 50 mm with friction ratchet

- with ratchet friction thimble
- with carbide measuring faces
- scale chrome finished
- spindle Ø 6,5 mm, thread pitch 0,5 mm
- scale 0,01 mm
- accuracy DIN 863
- with standard
- in case/box

Range 25 - 50 mm

Range: 25 - 50 mm
Type: analogue, with carbide measuring faces, with ratchet friction timble
Reading: 0,01 mm
Accuracy: DIN 863
Related links to "Outside micrometer 25 - 50 mm with friction ratchet DIN 863"
Technical data
Messbereich mm Range mm A mm B mm C mm L mm 25 - 50... more
Zurück
Messbereich mm
Range mm		 A mm B mm C mm L mm
25 - 50 3,5 8 32 57
