Three point micrometer 1 - 15 mm range

Preview: Three point micrometer 1 - 15 mm range Preview: Technical drawing Three point micrometer 1 - 15 mm range
Three point micrometer 1 - 15 mm range

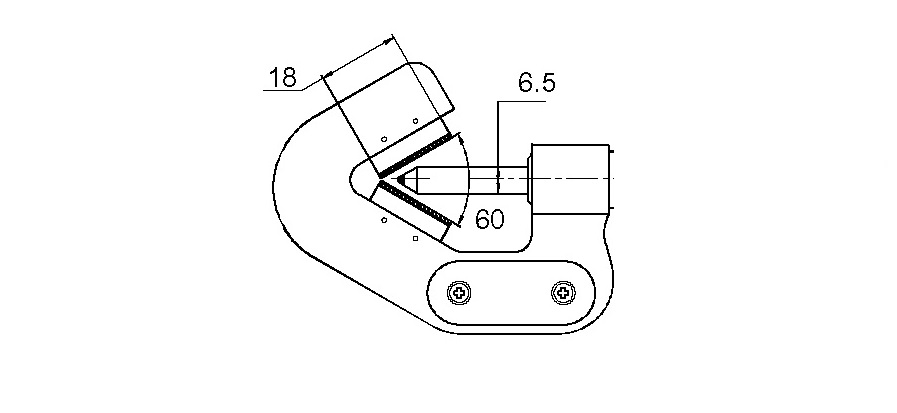

Technical drawing Three point micrometer 1 - 15 mm range

€140.40 *
€167.08 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 309.020
  • Customs tariff number: 9017 3000
  • European article number: 4054469117553
  • Weight: 0,4 kg
  • In stock: 5
Description Technical data Evaluations 0
Description
Three point micrometer 1 - 15 mm with setting standard - with carbide measuring face for... more
Close menu
Product information "Three point micrometer 1 - 15 mm range"

Three point micrometer 1 - 15 mm with setting standard

- with carbide measuring face for
  measuring 3 fluted taps, cutters etc.
- frame coated, thimble chrome finished
- with ratchet
- reading 0,01 mm
- accuracy 0,005 mm
- with setting standard 1 mm
- in case/box

Range 1 - 15 mm

Range: 1 - 15 mm
Type: analogue, Three point micrometer, with ratchet
Reading: 0,01 mm
Accuracy: 0,005 mm
Related links to "Three point micrometer 1 - 15 mm range"
Technical data
Messbereich mm Range mm Einstellmaß mm Standard mm... more
Zurück
Messbereich mm
Range mm		 Einstellmaß mm
Standard mm		 Genauigkeit  mm
Accuracy  mm
1 - 15 1 0,005
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Three point micrometer 1 - 15 mm range"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

Accessories 1 Similar products Customers also bought Customers also viewed
Accessories 1
Micrometer holder for mircrometer until 100 mm adjustable angle Micrometer holder for mircrometer until 100 mm...
€22.32 *
Stock: 3
Similar products

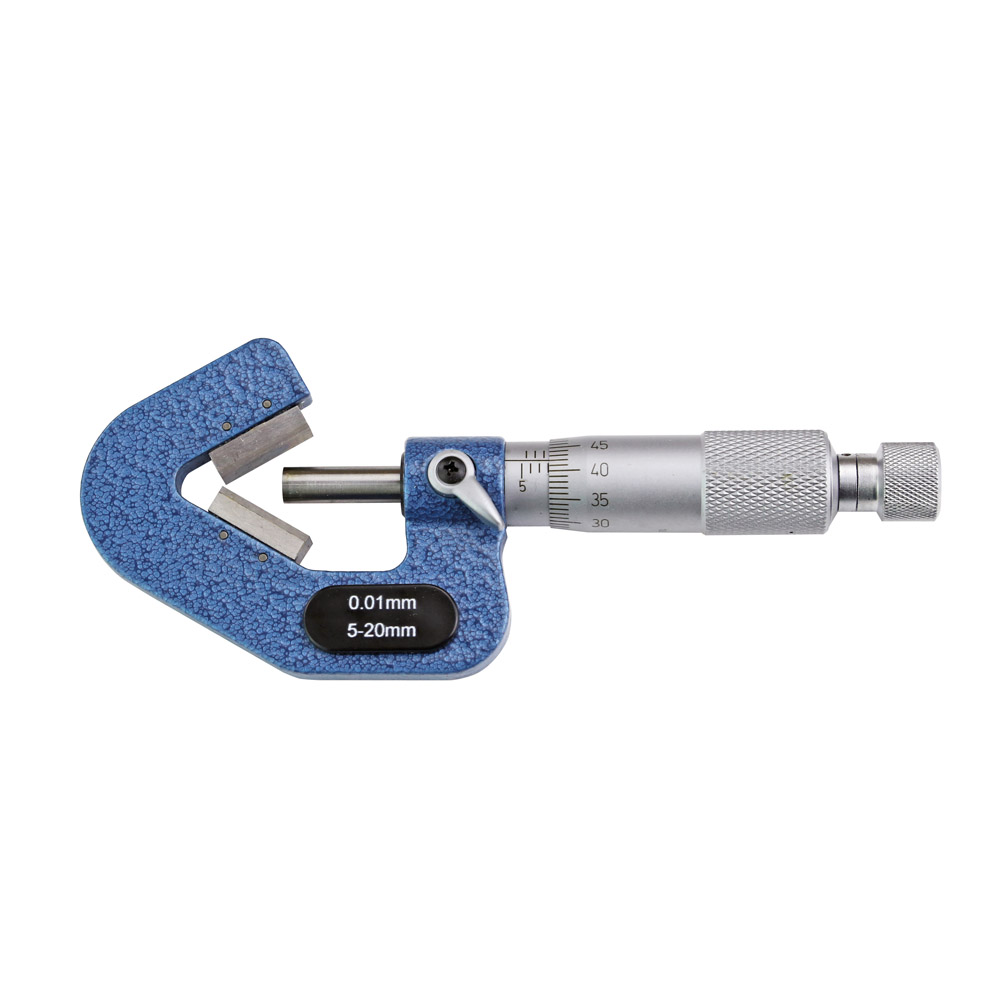

Three point micrometer 5 - 20 mm range Three point micrometer 5 - 20 mm range
€146.40 *
Stock: 10

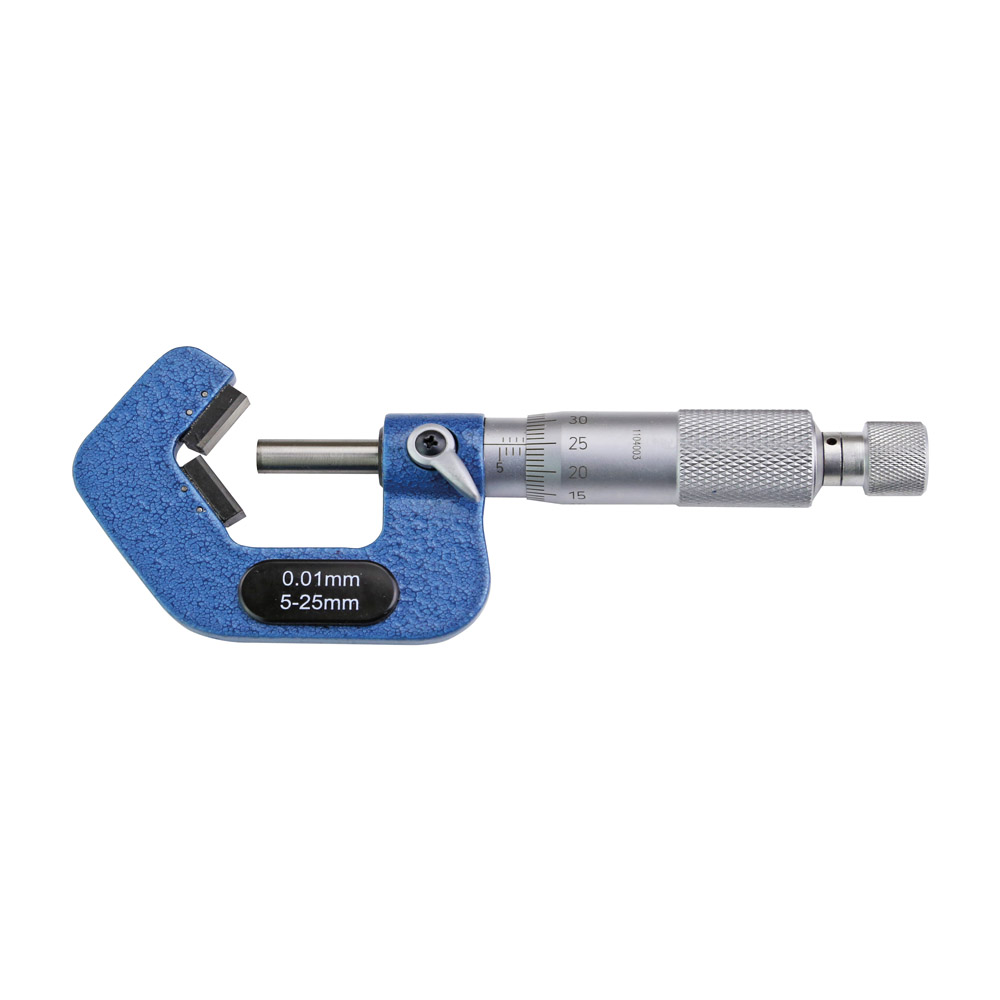

Five point micrometer 5 - 25 mm range Five point micrometer 5 - 25 mm range
