Three point internal micrometer 150 - 175 mm range reading 0,001 mm

Preview: Three point internal micrometer 150 - 175 mm range reading 0,001 mm Preview: Drawing Three point internal micrometer 150 - 175 mm range reading 0,001 mm
Three point internal micrometer 150 - 175 mm range reading 0,001 mm

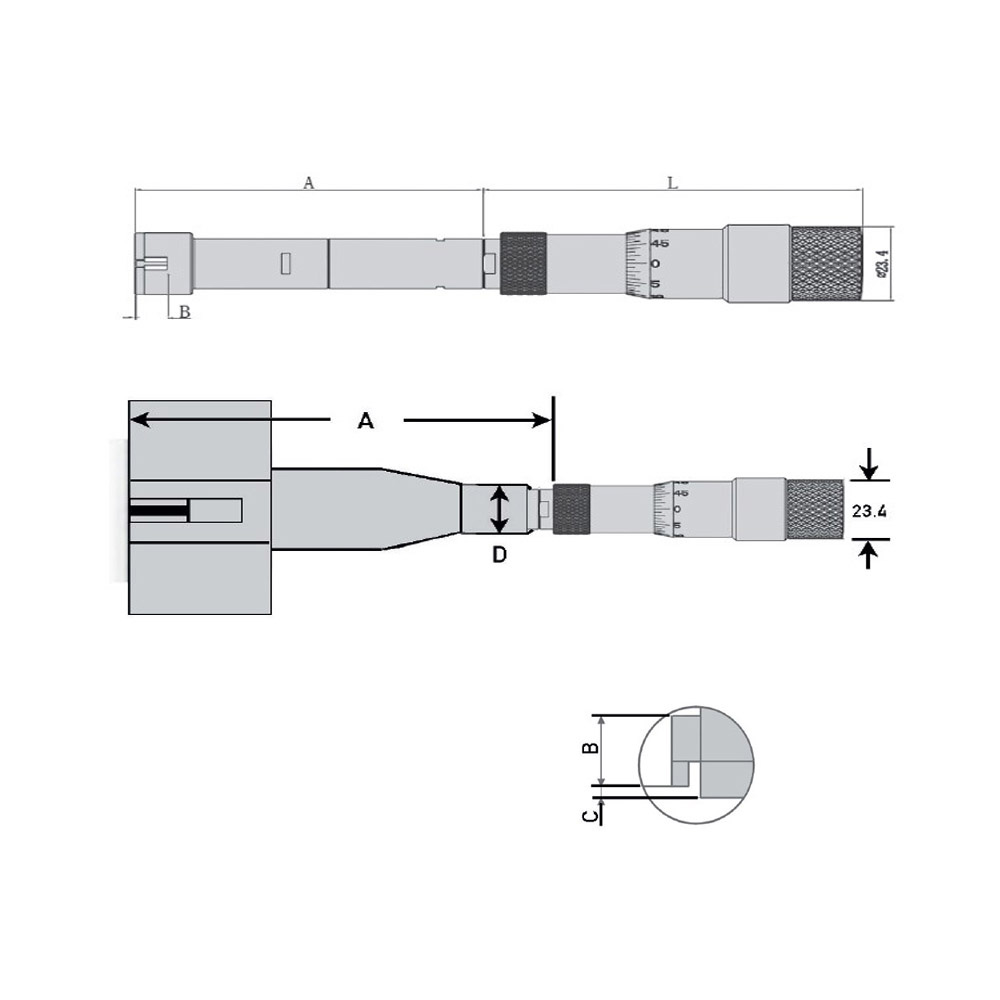

Drawing Three point internal micrometer 150 - 175 mm range reading 0,001 mm

€554.40 *
€659.74 incl. VAT

Prices plus VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 312.466
  • Customs tariff number: 9017 3000
  • European article number: 4054469156514
  • Weight: 3,5 kg
  • In stock: 0
Description Technical data Product Safety Information Evaluations 0
Description
Three point internal micrometer 150 - 175 mm range - reading 0,001 mm, accuracy* 0,007 µm,... more
Close menu
Product information "Three point internal micrometer 150 - 175 mm range reading 0,001 mm"

Three point internal micrometer 150 - 175 mm range

- reading 0,001 mm, accuracy* 0,007 µm, DIN 863
- without setting ring and extension
- with carbide measuring faces
- scale and nonius satin chrome finished
- suitable for measuring blind holes
- in case/box

Range: 150 - 175 mm
Type: analogue, with carbide measuring faces
usable for measuring of: blind hole
Reading: 0,001 mm
Accuracy: 0,007 mm
Related links to "Three point internal micrometer 150 - 175 mm range reading 0,001 mm"
Technical data
Messbereich mm Range mm Einstellring mm Setting ring mm... more
Zurück
Messbereich mm
Range mm		 Einstellring mm
Setting ring mm		 Verlängerung mm
Extension mm 		 C
mm		 B
mm		 A
mm		 Ablesung mm
Reading mm		 Genauigkeit* µm
Accuracy* µm
150 - 175  -  - 0,5 20,0 165 0,001 0,007

* bei vollanliegenden Messflächen / at full contact of the measuring faces
