Digital caliper 12 x 50 mm for measuring of hole reduction 90°

Preview: Digital caliper 12 x 50 mm for measuring of hole reduction 90° Preview: Technical drawing Digital caliper 12 x 50 mm for measuring of hole reduction 90° Preview: Technical drawing Digital caliper 12 x 50 mm for measuring of hole reduction 90°
Digital caliper 12 x 50 mm for measuring of hole reduction 90°

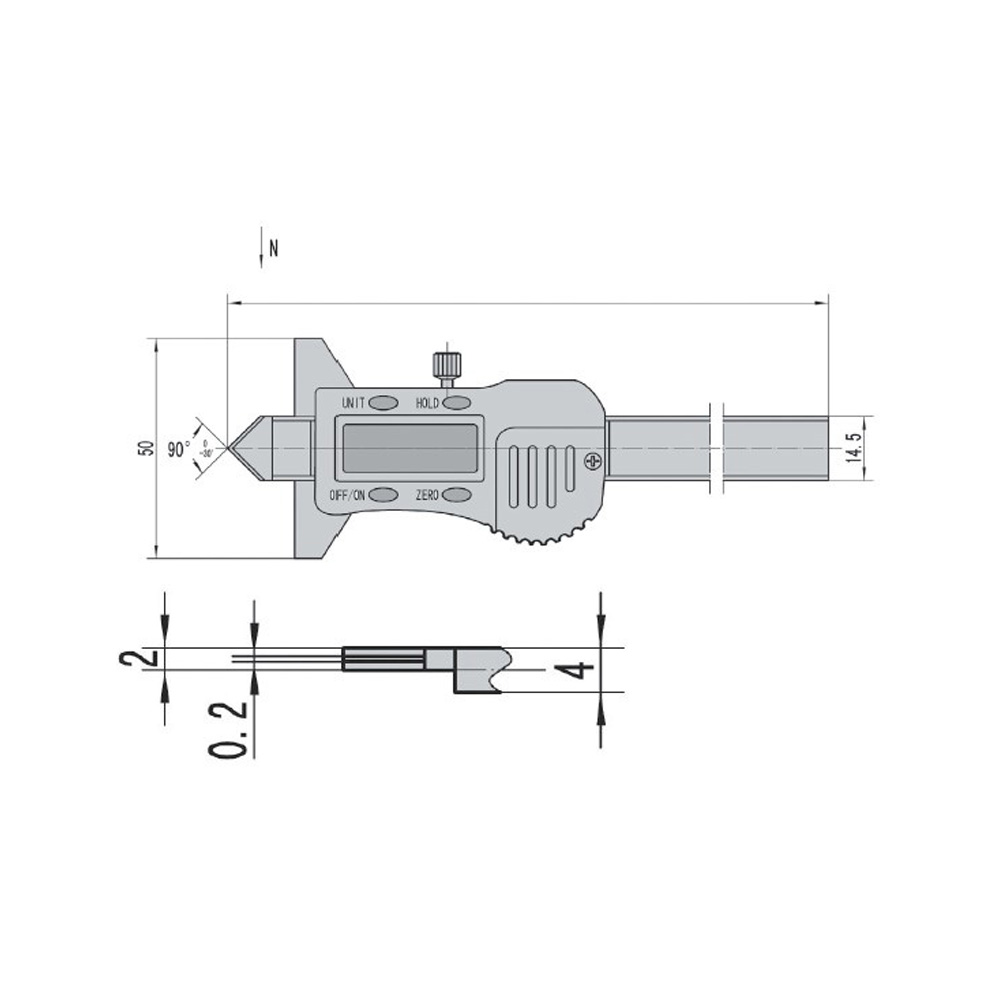

Technical drawing Digital caliper 12 x 50 mm for measuring of hole reduction 90°
Technical drawing Digital caliper 12 x 50 mm for measuring of hole reduction 90°

€70.80 *
€84.25 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 218.090
  • Customs tariff number: 9017 3000
  • European article number: 4054469160542
  • Weight: 0,28 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
Digital caliper for measuring of hole reduction 90° - made of stainless steel, hardened -... more
Close menu
Product information "Digital caliper 12 x 50 mm for measuring of hole reduction 90°"

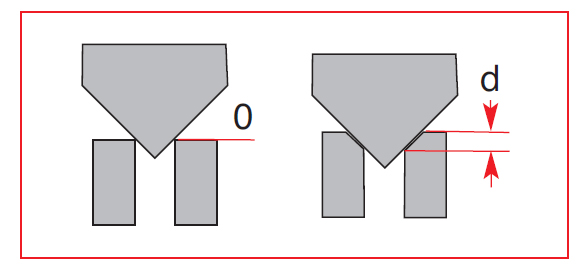

Digital caliper for measuring of hole reduction 90°

- made of stainless steel, hardened
- with metal casing
- reading 0,01 mm or 0,0005"
- accuracy 0,1 mm
- base 50 mm
- with on/off, zero, unit and hold button
- with RS232C data output (RB5)
- in case/box

Range 0 - 12 mm

Range: 0 - 12 mm
Type: digital, made of stainless steel, hardened, with metal casing
Base: 50 mm
Accuracy: 0,10 mm
Reading: 0,01 mm
Data output: RB 5
Related links to "Digital caliper 12 x 50 mm for measuring of hole reduction 90°"
Technical data
Messbereich mm Range mm Brückenlänge a mm  Base a mm... more
Zurück
Messbereich mm
Range mm		 Brückenlänge a mm
Base a mm		 Genauigkeit mm
Accuracy mm
12 50 0,1
