Three point internal micrometer analog

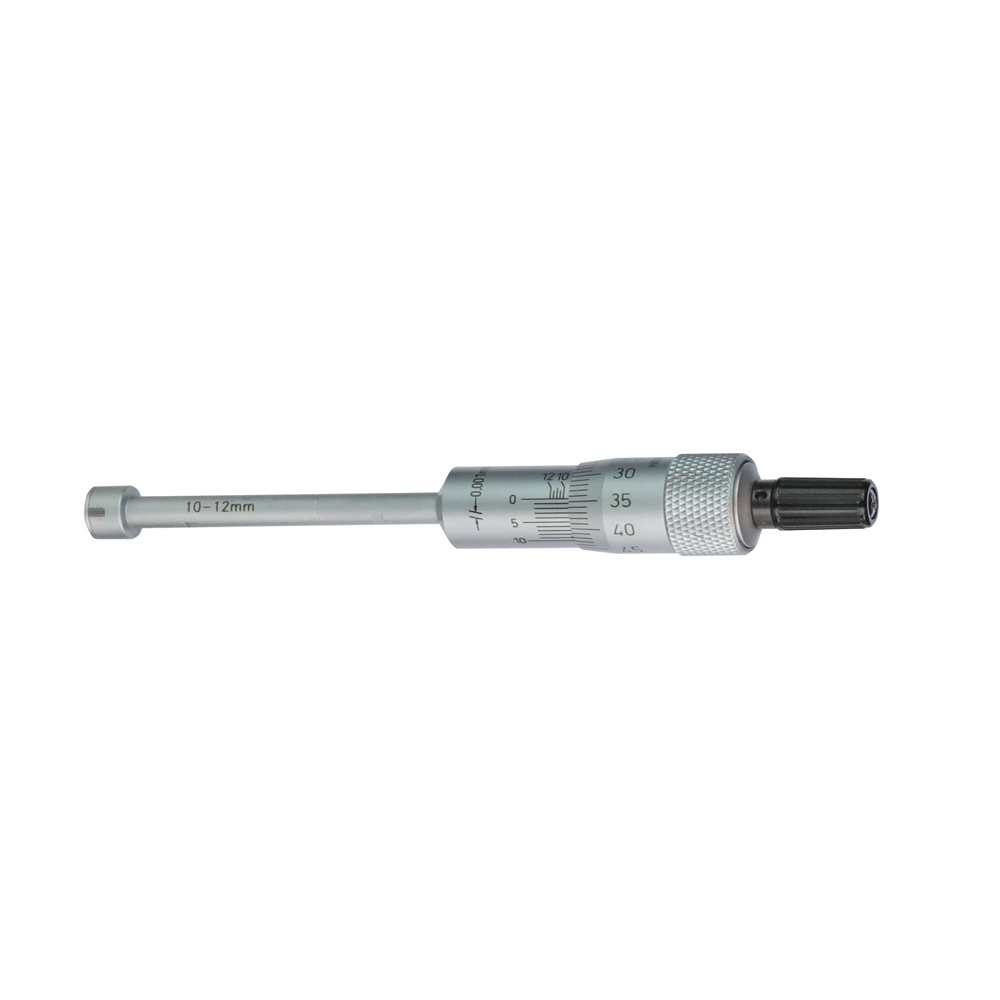

Three point internal micrometer 10 - 12 mm range - reading 0,001 mm, accuracy* 0,004 µm, DIN 863- with setting ring and extension- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 10-12 mm analogue - with setting gauge 10 mm and extension 100 x Ø 5,7 mm - for blind hole - satin chrome finished - DIN 863 - in case/box Range 10 - 12 mm

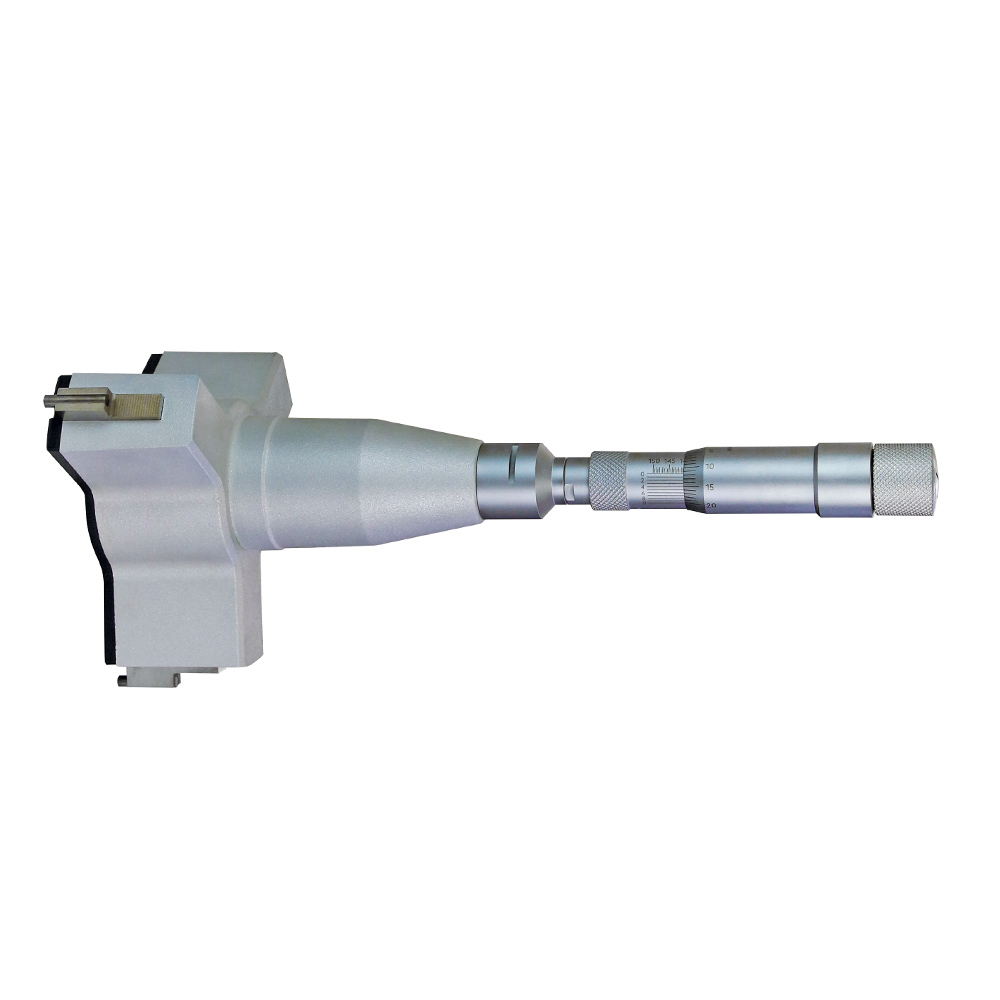

Three point internal micrometer 100 - 125 mm range - reading 0,001 mm, accuracy* 0,006 µm, DIN 863- without setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 12 - 16 mm range - reading 0,001 mm, accuracy* 0,005 µm, DIN 863- with setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 12-16 mm analogue - with setting gauge 12 mm and extension 150 x Ø 11,7 mm - for blind hole - with carbide measuring faces- satin chrome finished - DIN 863 - in case/box Range 12 - 16 mm
Three point internal micrometer 125 - 150 mm range - usable for measuring of through hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,006 mm- in case/box - delivery without setting ring gauge Range 125 - 150 mm
Three point internal micrometer 125 - 150 mm range - reading 0,001 mm, accuracy* 0,006 µm, DIN 863- without setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 150 - 175 mm range - usable for measuring of through hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,007 mm- in case/box - delivery without setting ring gauge Range 150 - 175 mm
Three point internal micrometer 150 - 175 mm range - reading 0,001 mm, accuracy* 0,007 µm, DIN 863- without setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer analogue 150-175 mm - usable for measuring of blind hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,007 mm- in case/box - delivery without setting ring gauge Range 150 - 175 mm

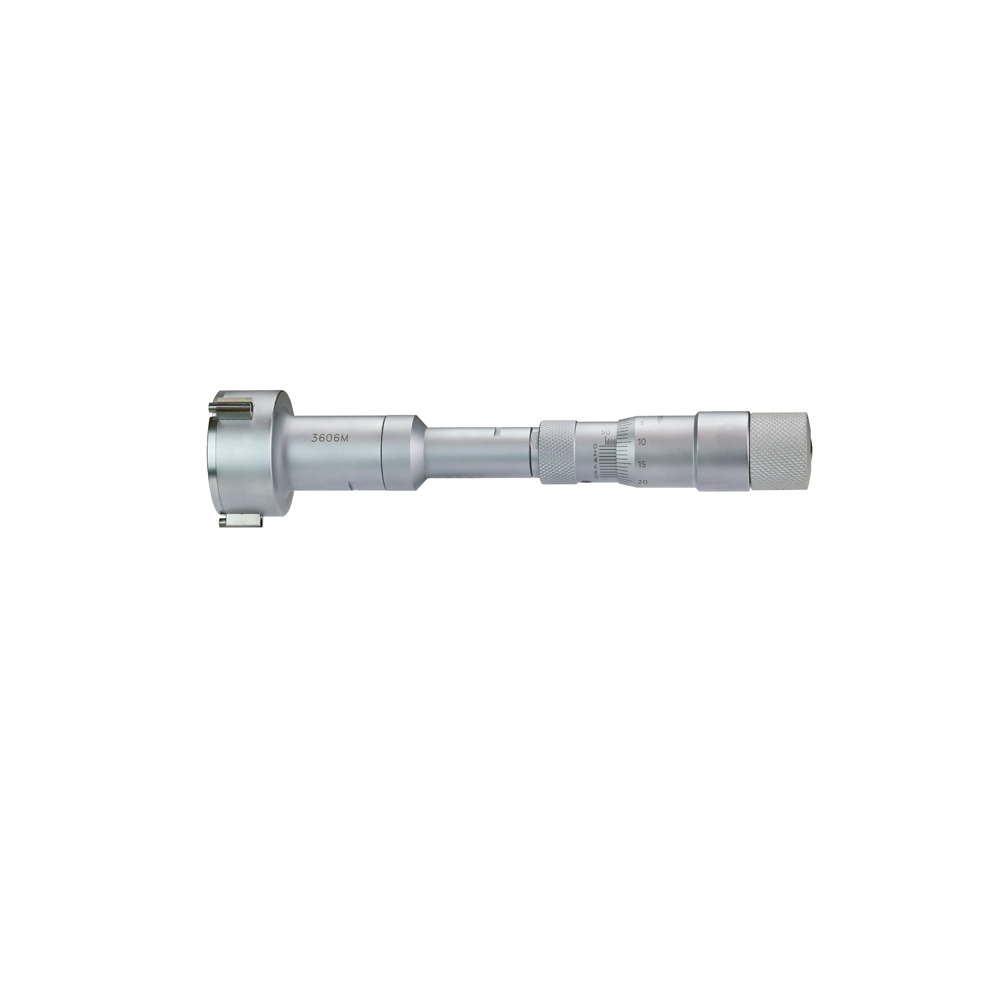

Three point internal micrometer 16 - 20 mm range - reading 0,001 mm, accuracy* 0,005 µm, DIN 863- with setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 16-20 mm analogue - with setting gauge 16 mm and extension 150 x Ø 11,7 mm - for blind hole - with carbide measuring faces- satin chrome finished - DIN 863 - in case/box Range 16 - 20 mm
Three point internal micrometer 175 - 200 mm range - usable for measuring of through hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,007 mm- in case/box - delivery without setting ring gauge Range 175 - 200 mm
Three point internal micrometer 175 - 200 mm range - reading 0,001 mm, accuracy* 0,007 µm, DIN 863- without setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer analogue 175-200 mm - usable for measuring of blind hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,007 mm- in case/box - delivery without setting ring gauge Range 175 - 200 mm
Three point internal micrometer 20 - 25 mm range - reading 0,001 mm, accuracy* 0,005 µm, DIN 863- with setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 20-25 mm analogue - with setting gauge 25 mm and extension 150 x Ø 16,0 mm - for blind hole - with carbide measuring faces- satin chrome finished - DIN 863 - in case/box Range 20 - 25 mm
Three point internal micrometer 200 - 225 mm range - usable for measuring of through hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,008 mm- in case/box - delivery without setting ring gauge Range 200 - 225 mm
Three point internal micrometer analogue 200-225 mm - usable for measuring of blind hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,008 mm- in case/box - delivery without setting ring gauge Range 200 - 225 mm
Three point internal micrometer 225 - 250 mm range - usable for measuring of through hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,008 mm- in case/box - delivery without setting ring gauge Range 225 - 250 mm
Three point internal micrometer analogue 225-250 mm - usable for measuring of blind hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,008 mm- in case/box - delivery without setting ring gauge Range 225 - 250 mm
Three point internal micrometer 25 - 30 mm range - reading 0,001 mm, accuracy* 0,005 µm, DIN 863- with setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 25-30 mm analogue - with setting gauge 25 mm and extension 150 x Ø 16,0 mm - for blind hole - with carbide measuring faces- satin chrome finished - DIN 863 - in case/box Range 25 - 30 mm
Three point internal micrometer 250 - 275 mm range - usable for measuring of through hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,009 mm- in case/box - delivery without setting ring gauge Range 250 - 275 mm
Three point internal micrometer analogue 250-275 mm - usable for measuring of blind hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,009 mm- in case/box - delivery without setting ring gauge Range 250 - 275 mm
Three point internal micrometer 275 - 300 mm range - usable for measuring of through hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,009 mm- in case/box - delivery without setting ring gauge Range 275 - 300 mm
Three point internal micrometer analogue 275-300 mm - usable for measuring of blind hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,009 mm- in case/box - delivery without setting ring gauge Range 275 - 300 mm
Three point internal micrometer 30 - 40 mm range - reading 0,001 mm, accuracy* 0,005 µm, DIN 863- with setting ring and extension- with carbide measuring faces- scale and nonius satin chrome finished- suitable for measuring blind holes- in case/box
Three point internal micrometer 30-40 mm analogue - with setting gauge 40 mm and extension 150 x Ø 23,4 mm - for blind hole - with carbide measuring faces- satin chrome finished - DIN 863 - in case/box Range 30 - 40 mm
Three point internal micrometer analogue 300-325 mm - usable for measuring of blind hole - with carbide measuring faces - with ratchet- scale and nonius satin chrome finished - depth 140 mm - reading 0,005 mm- accuracy 0,012 mm- in case/box - delivery without setting ring gauge Range 300 - 325 mm
