Three point internal micrometer 30 - 40 mm range reading 0,001 mm
€219.00*
Available, delivery time: 1-3 workdays
Product information "Three point internal micrometer 30 - 40 mm range reading 0,001 mm"
Three point internal micrometer 30 - 40 mm range
- reading 0,001 mm, accuracy* 0,005 µm, DIN 863
- with setting ring and extension
- with carbide measuring faces
- scale and nonius satin chrome finished
- suitable for measuring blind holes
- in case/box
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 30 - 40 mm |
| Reading: | 0,001 mm |
| Type: | analogue, with carbide measuring faces, with setting gauge and extension |
| usable for measuring of: | blind hole |

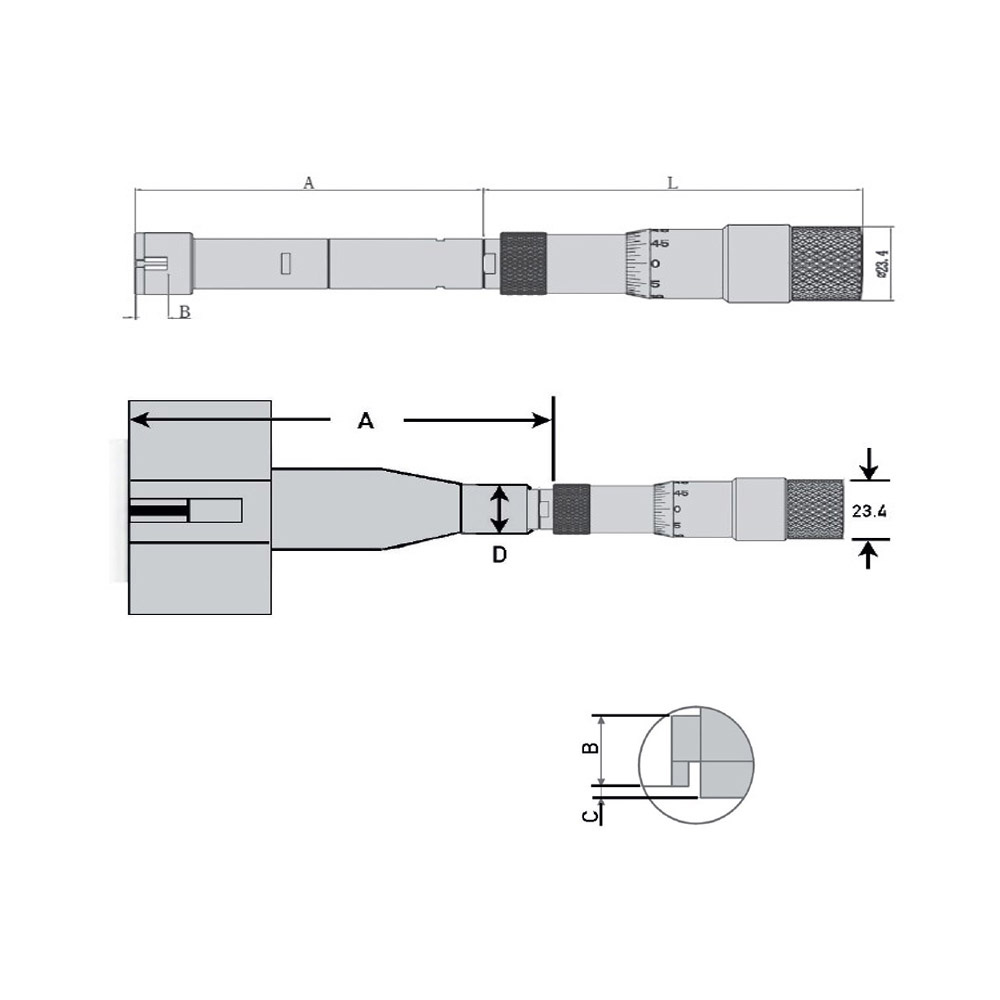

Technical Data
| Messbereich mm Range mm |
Einstellring mm Setting ring mm |
Verlängerung mm Extension mm |
C mm |
B mm |
A mm |
Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 30 - 40 | 40 | 152,4 x Ø 23,5 | 0,5 | 14,0 | 105 | 0,001 | 0,005 |
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
