Gauge blocks

Base - only for gauge holder 317.203 - 317.206 Size 110 x 65 x 35 mm

Base - only for gauge holder 317.103 - 317.116 Size 110 x 70 x 25 mm

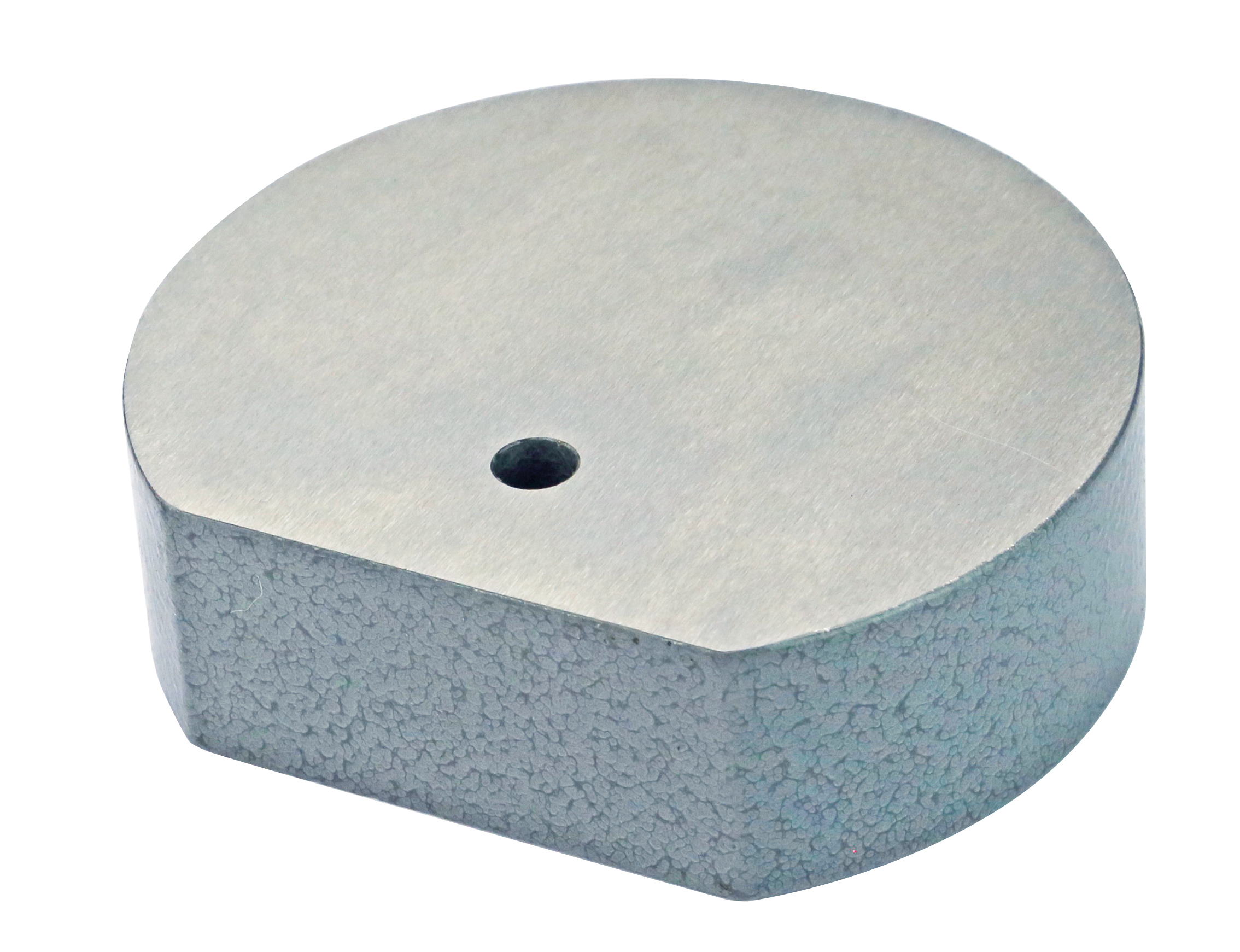

Base for gauge holders - Size mm: Ø 100 x 30

Center point - accessories for gauge holder- 1 piece- point mm: Ø 8 x 8- Size mm (L x B x H): 45 x 9 x 8

Ceramic gauge block set  32 pcs. degree 0 - gauge blocks made of ceramic, degree 0 - with certificate - in accuracy DIN EN ISO 3650/0 - in wooden case

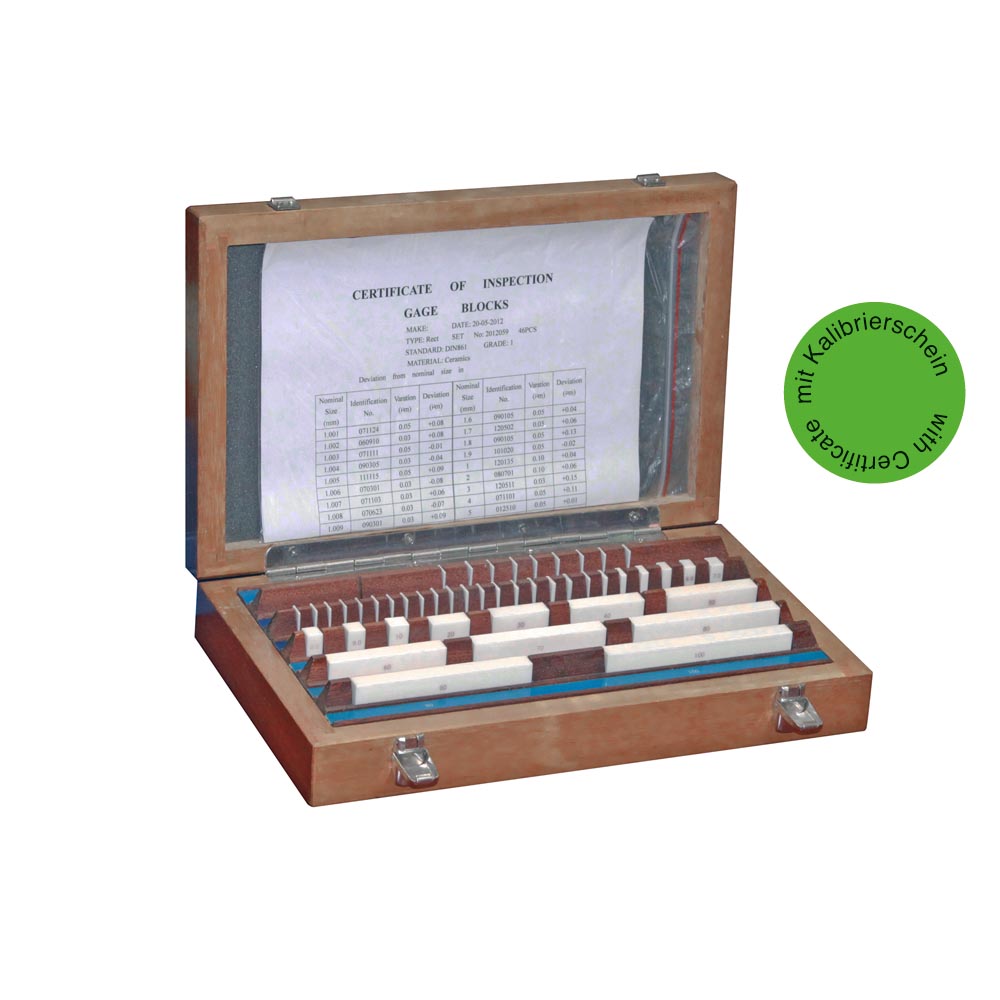

Ceramic gauge block set  32 pcs. degree 1 - gauge blocks made of ceramic, degree 1 - with certificate - in accuracy DIN EN ISO 3650/0 - in wooden case

Ceramic gauge block set 47 pcs. degree 0 - gauge blocks made of ceramic, degree 0 - with certificate - in accuracy DIN EN ISO 3650/0 - in wooden case

Ceramic gauge block set 47 pcs. degree 1 - gauge blocks made of ceramic, degree 1 - with certificate - in accuracy DIN EN ISO 3650/0 - in wooden case

Extension set for gauge connector - 4 pcs.- extension M 3 x Ø 6,5 mm, length 100 mm- suitable für gauge connector no. 317.132 / 317.133

Gauge accessories set - for using of gauge blocks to measuring or adjustment of measuring instruments- in aluminium case Gauge accessories set, 12 pcs/ set : - 1 x holder 0 - 50 mm- 1 x holder 0 - 100 mm- 1 x holder 100 - 200 mm- pair jaws ( R 2 x 10, R 5 x 5, R 10 x 40)- 1 x scriber- 1 x center point- 1 x base

Gauge block for checking of calipers, single - made of special steel- accuracy to DIN EN ISO 3650- Degree 1 Size mm: 131,4

Gauge block for checking of calipers, single - made of special steel- accuracy to DIN EN ISO 3650- Degree 1 Size mm: 281,2

Gauge block for checking of calipers, single - made of ceramic- accuracy to DIN EN ISO 3650- Degree 1 Size mm: 41,3

Gauge block for checking of calipers, single - made of special steel- accuracy to DIN EN ISO 3650- Degree 1 Size mm: 41,3

Gauge block for checking of calipers, single - made of special steel- accuracy to DIN EN ISO 3650- Degree 1 Size mm: 481,1

Gauge block for checking of calipers, single - made of ceramic- accuracy to DIN EN ISO 3650- Degree 1 Size mm: 131,4

Gauge block set for checking of micrometers to DIN 863, with plane glass - made of special steel,hardened - accuracy to DIN EN ISO 3650/1 - in wooden case Pcs./ Set: 15Plane glass: 30 mmSize mm: 1,4/ 2,5/ 5,1 / 7,7 / 10,3 / 12,9 / 15,0 / 17,6 / 20,2 / 22,8 / 25,0 / 50 / 75 / 100

Gauge block set - degree 2 - made of special steel, hardened - in accuracy DIN EN ISO 3650/2 - in wooden case- with certification Gauge blocks/set: 47Size mm: 1 x 1,005 / 20 x 1,01-1,20 / 7 x 1,30-1,90 / 9 x 1-9 / 10 x 10-100 Figure 1: set with 87 gauge blocks

Gauge block set for checking of micrometers to DIN 863 - made of special steel,hardened - accuracy to DIN EN ISO 3650/1 - in wooden case Pcs./ Set: 10Size mm: 2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15,0 / 17,6 / 20,2 / 22,8 / 25,0

Gauge block set for checking of micrometers to DIN 863 - made of special steel,hardened - accuracy to DIN EN ISO 3650/1 - in wooden case Pcs./ Set: 11Size mm: 1,4 / 2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15,0 / 17,6 / 20,2 / 22,8 / 25,0

Gauge block set for checking of micrometers to DIN 863, with plane glass - made of special steel,hardened - accuracy to DIN EN ISO 3650/1 - in wooden case Pcs./ Set: 12Plane glass: 30 mmSize mm: 1,4/ 2,5/ 5,1 / 7,7 / 10,3 / 12,9 / 15,0 / 17,6 / 20,2 / 22,8 / 25,0

Gauge block set for checking of micrometers to DIN 863 - made of special steel,hardened - accuracy to DIN EN ISO 3650/1 - in wooden case Pcs./ Set: 14Size mm: 1,4 / 2,5 / 5,1 / 7,7 / 10,3 / 12,9 / 15,0 / 17,6 / 20,2 / 22,8 / 25,0 / 50 / 75 / 100

Gauge block set for checking of calipers - made of special steel, hardened - accuracy to DIN EN ISO 3650/2 - in case- Degree 2 Pcs./ Set: 3Set ring : 20 mmSize mm: 41,3 / 131,4

Gauge block set - degree 1 - made of special steel, hardened - in accuracy DIN EN ISO 3650/1 - in wooden case- with certification Gauge blocks/set: 32Size mm: 1 x 1,005 / 9 x 1,01-1,09 / 9 x 1,10-1,90 / 9 x 1-9 / 4 x 10-30, 50 Figure 1: set with 87 gauge blocks

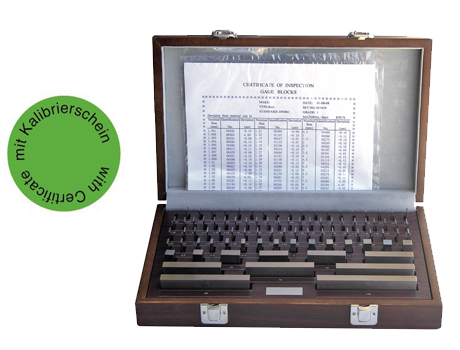

Gauge block set - degree 2 - made of special steel, hardened - in accuracy DIN EN ISO 3650/2 - in wooden case- with certification Gauge blocks/set: 32Size mm: 1 x 1,005 / 9 x 1,01-1,09 / 9 x 1,10-1,90 / 9 x 1-9 / 4 x 10-30, 50 Figure 1: set with 87 gauge blocks

Gauge block set - degree 1 - made of special steel, hardened - in accuracy DIN EN ISO 3650/1 - in wooden case- with certification Gauge blocks/set: 47Size mm: 1 x 1,005 / 20 x 1,01-1,20 / 7 x 1,30-1,90 / 9 x 1-9 / 10 x 10-100 Figure 1: set with 87 gauge blocks

Gauge block set for checking of calipers - made of special steel, hardened - to VDI/ VDE/ DGW 2618- accuracy to DIN EN ISO 3650 - in wooden case- Degree 1 Pcs./ Set: 5Set ring : 4 mm + 25 mmSize mm: 30,0 / 41,3 / 131,4

Gauge block set 5 pcs. for checking of calipers- with certificate- to VDI/ VDE/ DGW 2618- 5 pcs. per set for calipers until 200 mm- made of special steel, hardened- accuracy to DIN EN ISO 3650/1- setting rings 4 mm + 25 mm- gauge blocks 30 / 41,3 / 131,4 mm - in wooden case

Gauge block set for checking of calipers, ceramic - block gauge made of ceramic - to VDI/ VDE/ DGQ 2618- setting ring made of hardened steel- accuracy to DIN EN ISO 3650 - in wooden case- Degree 1 Pcs./ Set: 5Set ring : 4 mm + 25 mmSize mm: 30,0 / 41,3 / 131,4

Gauge block set for checking of micrometers to DIN 863 - made of special steel,hardened - accuracy to DIN EN ISO 3650/1 - in wooden case Pcs./ Set: 5Size mm: 5,1 / 10,3 / 15,0 / 20,2 / 25,0
