Werka measuring tools

32 pcs. Gauge Block Set Degree 0 - according to DIN EN ISO 3650- made from high qualitiy alloy steel- hardness ≥ HRC 64- with certificate- in wooden box

32 pcs. Gauge Block Set Degree 1- according to DIN EN ISO 3650- made from high qualitiy alloy steel- hardness ≥ HRC 64- with certificate- in wooden box

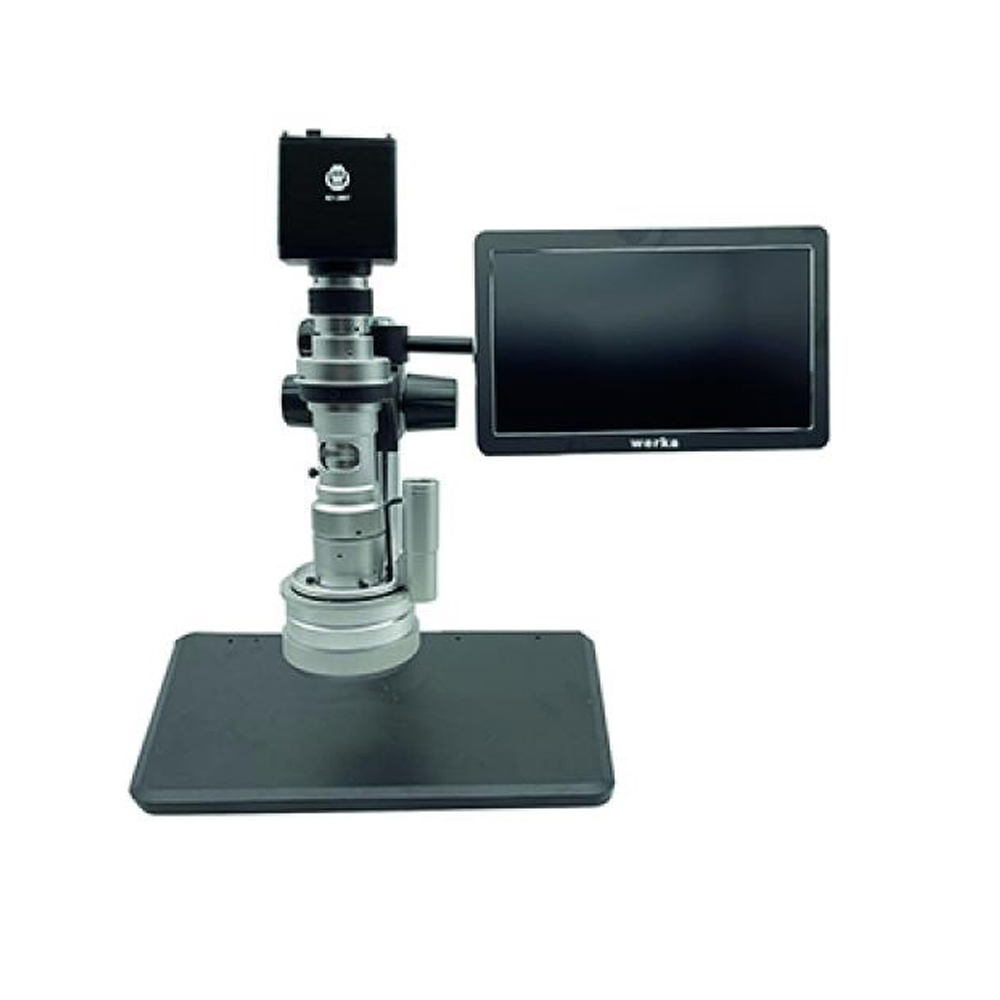

3D Motorized Rotation Video Microscope - 360° rotation lens, high defination, according to enterprise standard- 1080P high-defination 3D image- automatic white balance and exposure- with picture taking and video shooting function saved into a flash drive- rotation driven by an import DC motor, 45° view angle- step zomm lens 0.7X - 4.5X, ratio 6.4:1- with an  operation software- 2 M Pixel Camera, with a 13" display- camera with HDMI port (1x) and USB port (2x)- with a controller- with a worktable stand- Delivery: 1 x Main unit, 1 x 13" display, 1x rotation controller, 1 x worktable, 1 x 16G flash drive, 1 x wireless mouse, 1 x Packing list, 1 x Manual

47 pcs. Gauge Block Set Degree 0 - according to DIN EN ISO 3650- made from high qualitiy alloy steel- hardness ≥ HRC 64- with certificate- in wooden box

47 pcs. Gauge Block Set Degree 1- according to DIN EN ISO 3650- made from high qualitiy alloy steel- hardness ≥ HRC 64- with certificate- in wooden box

87 pcs. Gauge Block Set Degree 0 - according to DIN EN ISO 3650- made from high qualitiy alloy steel- hardness ≥ HRC 64- with certificate- in wooden box

87 pcs. Gauge Block Set Degree 1- according to DIN EN ISO 3650- made from high qualitiy alloy steel- hardness ≥ HRC 64- with certificate- in wooden box

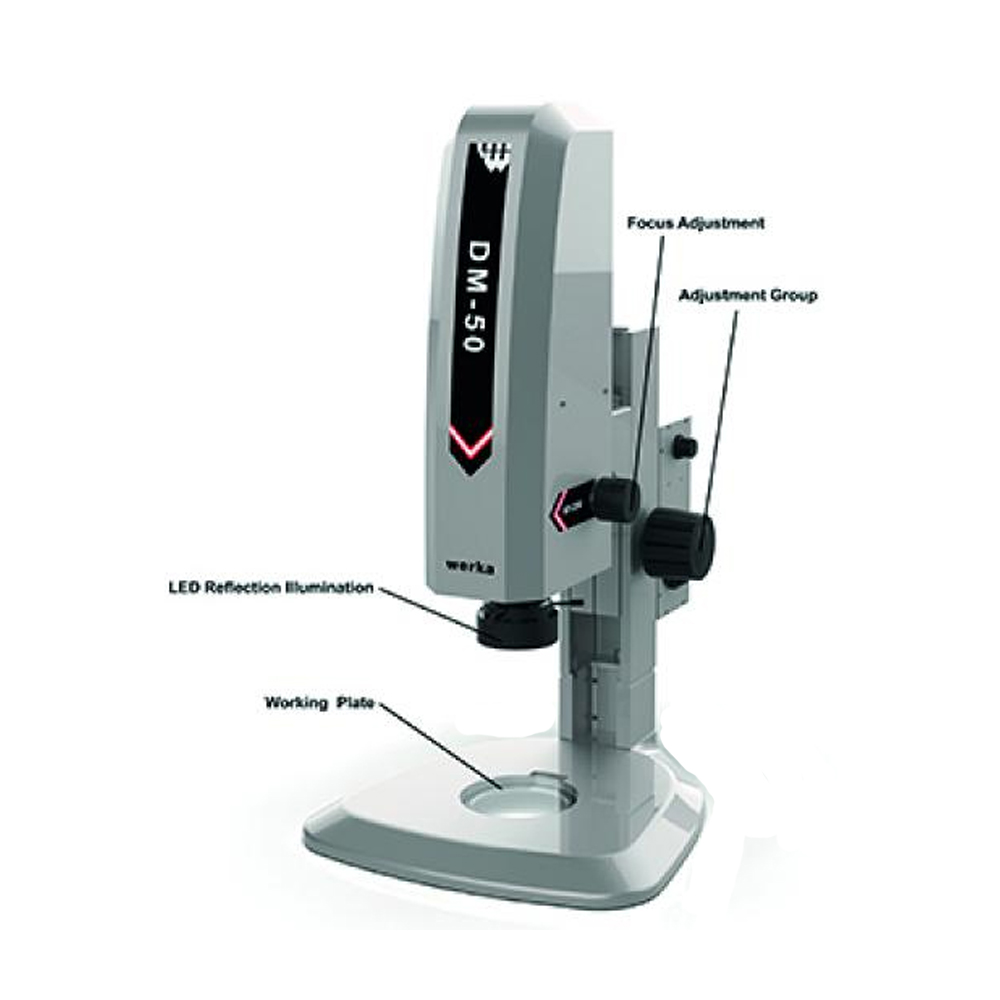

Auto Focus Video Measuring Microscope The DM-50 can measure straight lines, angles, concentric circles, parallel lines, point to line distance, point and line to concentric circles, diameter, circumference and area, length and width of rectangle, and can calculate circumference and area. It can measure the polygon and calculate its area. All the corresponding measurement report can be output to USB disk., - it can be appied to incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields- integral design- built-in-high-definition HDMI integrated camera, directly connected to HDMI display, can take pictures or videos- with high definition 0.7 - 4.5X parallel continue zoom lens, it is much more convenience and fast to switch objective magnification- with adjustable LED surface reflection illumination, is able to control brightness independently- with 2 mega pixel auto focus camera, no need to waste time for manual focus frequently- with its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height and radius elements- Delivery: 1 x Instrument Main unit, 1 Monitor: 16:9, 21,5", 1x Mouse, 1 x USB Flash Disk, 1 x Power adapter DC 5V (Camera), DC 12 V (illumination), 1 x Operation manual, 1 x Warrenty card, 1 x Certificate, 1 x Packing list

Beveled Edge Square 100 x 70 mm- DIN 875/00- made of stainless steel- with two bevelled edges, hardened- working surface lapped- with certificate- in card box

Beveled Edge Square 150 x 100 mm- DIN 875/00- made of stainless steel- with two bevelled edges, hardened- working surface lapped- with certificate- in card box

Beveled Edge Square 200 x 130 mm- DIN 875/00- made of stainless steel- with two bevelled edges, hardened- working surface lapped- with certificate- in card box

Beveled Edge Square 50 x 40 mm- DIN 875/00- made of stainless steel- with two bevelled edges, hardened- working surface lapped- with certificate- in card box

Beveled Edge Square 75 x 50 mm- DIN 875/00- made of stainless steel- with two bevelled edges, hardened- working surface lapped- with certificate- in card box

Coating Thickness Gauge 0-1500 µm- widely used in manufacturing, such as metal manufacturing, chemical, commodity inspection and other measurement fields area- range 0-1500 µm- small in size, light in weight and easy to carry- 2 in 1 for steel and aluminium - adopt high-speed MCU and advanced algorithm to ensure the accuracy and efficiency of measurement- the instrument supports fast measurement and continiuos measurement, and the measurement speed can reach 0,3 s / time- the wear-resistant metal probe can ensure stable data when measuring on hard and rough surfaces, and the probe wears more than 500.000 times- wide measurement range, high precision and good stability, which can meet the measurement of ultra-thin coatings- automatic power off- large LCD-Display, easy to reading- in a prime plastic box

Depth caliper with double hook 150 mm range- accuracy according to DIN 862- stainless steel, hardened- scale and nonius satin chrome finished- measuring face with double hook - stop screw for the vernier - deliver with inspection report- in plastic box

Depth caliper with double hook 200 mm range- accuracy according to DIN 862- stainless steel, hardened- scale and nonius satin chrome finished- measuring face with double hook - stop screw for the vernier - deliver with inspection report- in plastic box

Depth caliper with double hook 300 mm range- accuracy according to DIN 862- stainless steel, hardened- scale and nonius satin chrome finished- measuring face with double hook - stop screw for the vernier - deliver with inspection report- in plastic box

Depth caliper analog 0 - 150 mm range- accuracy according to DIN 862- stainless steel, hardened - scale and nonius satin chrome finished - deliver with inspection report- in plastic box

Depth caliper analog 0 - 200 mm range- accuracy according to DIN 862- stainless steel, hardened - scale and nonius satin chrome finished - deliver with inspection report- in plastic box

Depth caliper analog 0 - 300 mm range- accuracy according to DIN 862- stainless steel, hardened - scale and nonius satin chrome finished - deliver with inspection report- in plastic box

Depth caliper analog 0 - 500 mm range- accuracy according to DIN 862- stainless steel, hardened - scale and nonius satin chrome finished - deliver with inspection report- in plastic box

Depth caliper analog 150 mm range with hook- accuracy according to DIN 862- stainless steel, hardened - scale and nonius satin chrome finished - double scales enable to use as normal depth gauge- deliver with inspection report- in plastic box

Depth caliper analog 300 mm range with hook- accuracy according to DIN 862- stainless steel, hardened - scale and nonius satin chrome finished - double scales enable to use as normal depth gauge- deliver with inspection report- in plastic box

Dial caliper 150 mm range- reading 0.01 mm- made of stainless steel- with fine adjustment wheel- with shock-proof function- flat depth rod- with locking screw- deliver with inspection report- in plastic box

Dial caliper 150 mm range- reading 0.01 mm- accuracy according to DIN 862- made of stainless steel- with upper set screw- with shock-proof function- flat depth rod- deliver with inspection report- in plastic box

Dial caliper 150 mm range- reading 0.02 mm- made of stainless steel- with fine adjustment wheel- with shock-proof function- flat depth rod- with locking screw- deliver with inspection report- in plastic box

Dial caliper 200 mm range- reading 0.01 mm- made of stainless steel- with fine adjustment wheel- with shock-proof function- flat depth rod- with locking screw- deliver with inspection report- in plastic box

Dial caliper 200 mm range- reading 0.01 mm- accuracy according to DIN 862- made of stainless steel- with upper set screw- with shock-proof function- flat depth rod- deliver with inspection report- in plastic box

Dial caliper 200 mm range- reading 0.02 mm- made of stainless steel- with fine adjustment wheel- with shock-proof function- flat depth rod- with locking screw- deliver with inspection report- in plastic box

Dial caliper 300 mm range- reading 0.01 mm- made of stainless steel- with fine adjustment wheel- with shock-proof function- flat depth rod- with locking screw- deliver with inspection report- in plastic box
