Depth caliper analog 0 - 500 mm range | DIN 862
Product number:
211-0160
Customs tariff number
90173000
European Article Number
6971570710160
Weight
0,91 kg
Stock:
0
Related links:
Request Item
Product information "Depth caliper analog 0 - 500 mm range | DIN 862 "
Depth caliper analog 0 - 500 mm range
- - accuracy according to DIN 862
- - stainless steel, hardened
- - scale and nonius satin chrome finished
- - deliver with inspection report
- - in plastic box

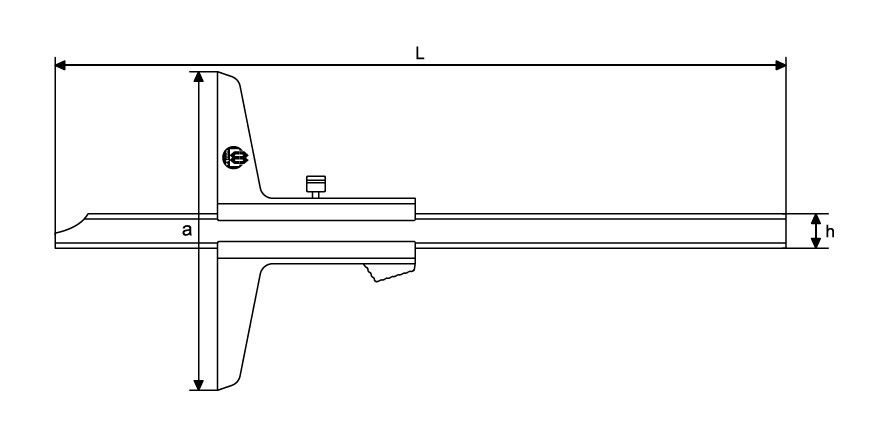

Technical Data
| Messbereich
Range |
Ablesung Reading |
Brückenlänge Length of Base |
Genauigkeit Accuracy |
L mm |
a mm |
h mm |
| 0 - 500 mm | 0,05 mm | 150 mm | 0,07 mm | 585 | 150 | 11,5 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
