Steel ruler

Advertising steel ruler 120 x 13 x 0,5 mm flexible - ideal as an advertising medium- made of stainless steel, INOX- front side with mm and 1/2 mm scale and place for logo (25 x 10 mm)- back side bright for promotion (150 x 10 mm) Logo and advertising with laser technology on request!

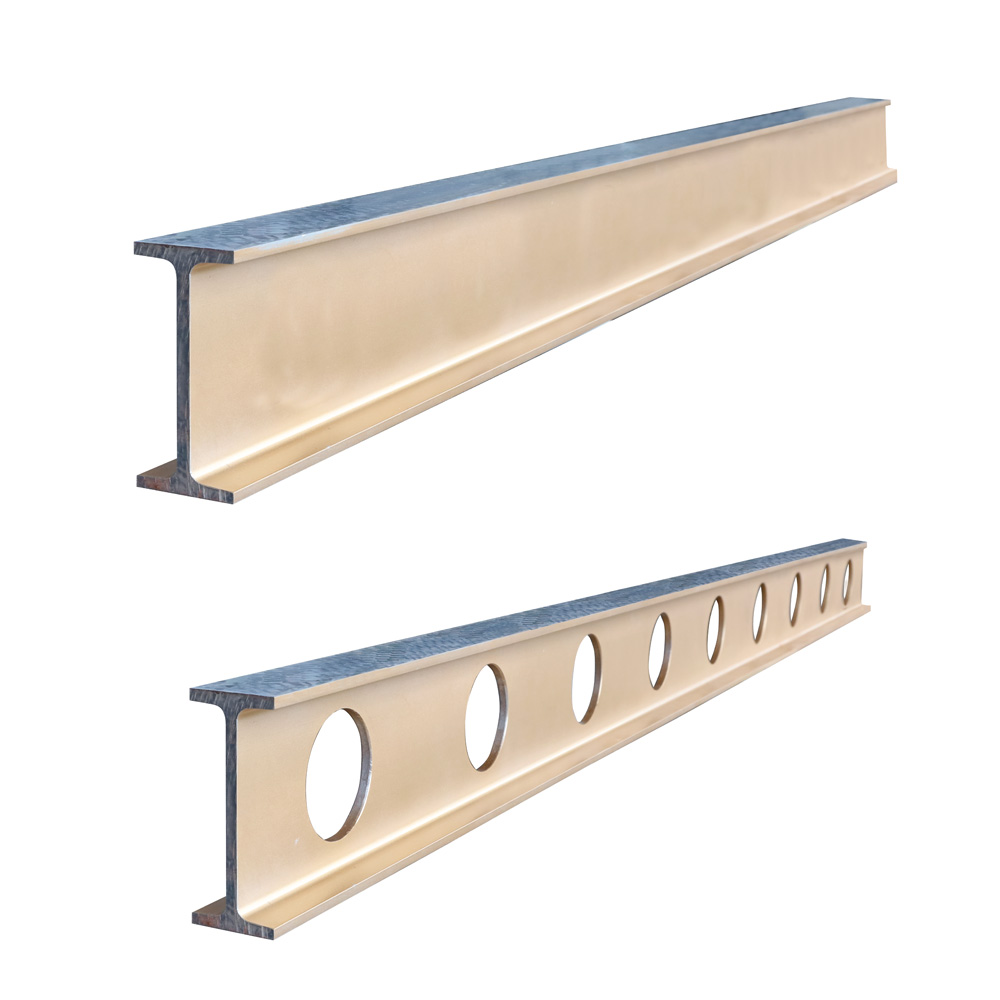

Assembly straight edge 1000 x 100 x 40 mm - „double-T" shape- accuracy DIN 874/0- made of aluminium magnesium alloy- tensile strength 47 kg/mm²- yield-point 110 kg/mm²- hardness HV 80- test surface scraped- very light compared to steel ruler

Assembly straight edge 1500 x 100 x 40 mm - „double-T" shape- accuracy DIN 874/1- made of aluminium magnesium alloy- tensile strength 47 kg/mm²- yield-point 110 kg/mm²- hardness HV 80- test surface scraped- very light compared to steel ruler

Assembly straight edge 2000 x 100 x 40 mm - „double-T" shape- accuracy DIN 874/1- made of aluminium magnesium alloy- tensile strength 47 kg/mm²- yield-point 110 kg/mm²- hardness HV 80- test surface scraped- very light compared to steel ruler

Assembly straight edge 2500 x 150 x 80 mm - „double-T" shape- accuracy DIN 874/1- made of aluminium magnesium alloy- tensile strength 47 kg/mm²- yield-point 110 kg/mm²- hardness HV 80- test surface scraped- very light compared to steel ruler

Assembly straight edge 2500 x 150 x 80 mm - „double-T" shape- accuracy DIN 874/2- made of aluminium magnesium alloy- tensile strength 47 kg/mm²- yield-point 110 kg/mm²- hardness HV 80- test surface scraped- very light compared to steel ruler

Assembly straight edge 500 x 60 x 30 mm - „double-T" shape- accuracy DIN 874/0- made of aluminium magnesium alloy- tensile strength 47 kg/mm²- yield-point 110 kg/mm²- hardness HV 80- test surface scraped- very light compared to steel ruler

Assembly straight edge 750 x 60 x 30 mm - „double-T" shape- accuracy DIN 874/0- made of aluminium magnesium alloy- tensile strength 47 kg/mm²- yield-point 110 kg/mm²- hardness HV 80- test surface scraped- very light compared to steel ruler

Ruler 1000 mm, flexible - made of PET plastic, transparent and flexible- for measuring of distance, length and circumference- with 0,25 mm scale- profile 25 x 0,1 mm

Ruler 1000 x 50 x 5 mm with bevelled edge - made of aluminium, anodized- with mm-graduation- glare free

Ruler 1500 mm, flexible - made of PET plastic, transparent and flexible- for measuring of distance, length and circumference- with 0,25 mm scale- profile 25 x 0,1 mm

Ruler 300 mm, flexible - made of PET plastic, transparent and flexible- for measuring of distance, length and circumference- with 0,25 mm scale- profile 25 x 0,1 mm

Ruler 300 x 50 x 5 mm with bevelled edge - made of aluminium, anodized- with mm-graduation- glare free

Ruler 500 mm, flexible - made of PET plastic, transparent and flexible- for measuring of distance, length and circumference- with 0,25 mm scale- profile 25 x 0,1 mm

Ruler 600 x 50 x 5 mm with bevelled edge - made of aluminium, anodized- with mm-graduation- glare free

Sine bars of steel - for adjustment of angle based on sinus principle- with table, range 0 - 60°- hardened and ground- in case/ box Center distance mm: 100Parallelism µm: 2,5Accuracy µm: 2Width x Height mm: 24 x 32

Sine bars of steel - for adjustment of angle based on sinus principle- with table, range 0 - 60°- hardened and ground- in case/ box Center distance mm: 200Parallelism µm: 2,5Accuracy µm: 4Width x Height mm: 25 x 50

Steel ruler 1000 x 40 x 5 mm DIN 866/B - made of steel, grounded- with mm graduation- accuracy to DIN 866/B- size 1000 x 40 x 5 mm

Steel ruler 1000 mm with bevelled edge and mm graduation - with mm graduation- made of steel, grounded- size 1000 x 40 x 5 mm

Steel ruler 1000 x 40 x 5 mm with bevelled edge - without mm graduation- made of steel, grounded- size 1000 x 40 x 5 mm

Steel ruler 1500 x 40 x 5 mm DIN 866/B - made of steel, grounded- with mm graduation- accuracy to DIN 866/B- size 1500 x 40 x 5 mm

Steel ruler 1500 mm with bevelled edge and mm graduation - with mm graduation- made of steel, grounded- size 1500 x 40 x 5 mm

Steel ruler 1500 x 40 x 5 mm with bevelled edge - without mm graduation- made of steel, grounded- size 1500 x 40 x 5 mm

Steel ruler 2000 x 40 x 5 mm DIN 866/B - made of steel, grounded- with mm graduation- accuracy to DIN 866/B- size 2000 x 40 x 5 mm Shipment with carrier !Please note our delivery conditions!

Steel ruler 2000 mm  - with mm graduation- made of steel, grounded- size 2000 x 40 x 5 mm Shipment with carrier !Please note our delivery conditions!

Steel ruler 2000 x 40 x 5 mm with bevelled edge - without mm graduation- made of steel, grounded- size 2000 x 40 x 5 mm Shipment with carrier !Please note our delivery conditions!

Steel ruler 300 x 40 x 5 mm DIN 866/B - made of steel, grounded- with mm graduation- accuracy to DIN 866/B- size 300 x 40 x 5 mm

Steel ruler 300 mm with bevelled edge and mm graduation - with mm graduation- made of steel, grounded- size 300 x 40 x 5 mm

Steel ruler 300 x 40 x 5 mm with bevelled edge - without mm graduation- made of steel, grounded- size 300 x 40 x 5 mm

Steel ruler 500 x 40 x 5 mm DIN 866/B - made of steel, grounded- with mm graduation- accuracy to DIN 866/B- size 500 x 40 x 5 mm
