Internal measuring instrument

75 mm extension for internal measuring instrument - length 75 mm, for extension of the range up to 50 - 180 mm - suitable for internal measuring instrument range 50 - 160 mm (order no. 208.024)

Depth extension for Internal measuring instrumentsfor extending the measuring depth by 185 mmsuitable for internal measuring instruments no. 208.022, no. 208.023, no. 208.024, no. 208.052 and no. 208.054

Digital internal measuring instrument range 10 - 18 mm - mount satin chrome finished- repeat accuracy 0.005 mm- with digital dial indicator:   - reading 0.01 mm   - accuracy 0.01 mm   - repeatability 0.01 mm   - meas. direction reversible   - measuring force ≤ 2.2 N   - preset: to set the init value- in case/box Depth: 100 mm Range: 10 - 18 mm

Digital internal measuring instrument range 18 - 35 mm - mount satin chrome finished- repeat accuracy 0.005 mm- with digital dial indicator:   - reading 0.01 mm   - accuracy 0.01 mm   - repeatability 0.01 mm   - meas. direction reversible   - measuring force ≤ 2.2 N   - preset: to set the init value- in case/box Depth: 150 mm Range: 18 - 35 mm

Digital internal measuring instrument range 35 - 50 mm - mount satin chrome finished- repeat accuracy 0.005 mm- with digital dial indicator:   - reading 0.01 mm   - accuracy 0.01 mm   - repeatability 0.01 mm   - meas. direction reversible   - measuring force ≤ 2.2 N   - preset: to set the init value- in case/box Depth: 150 mm Range: 35 - 50 mm

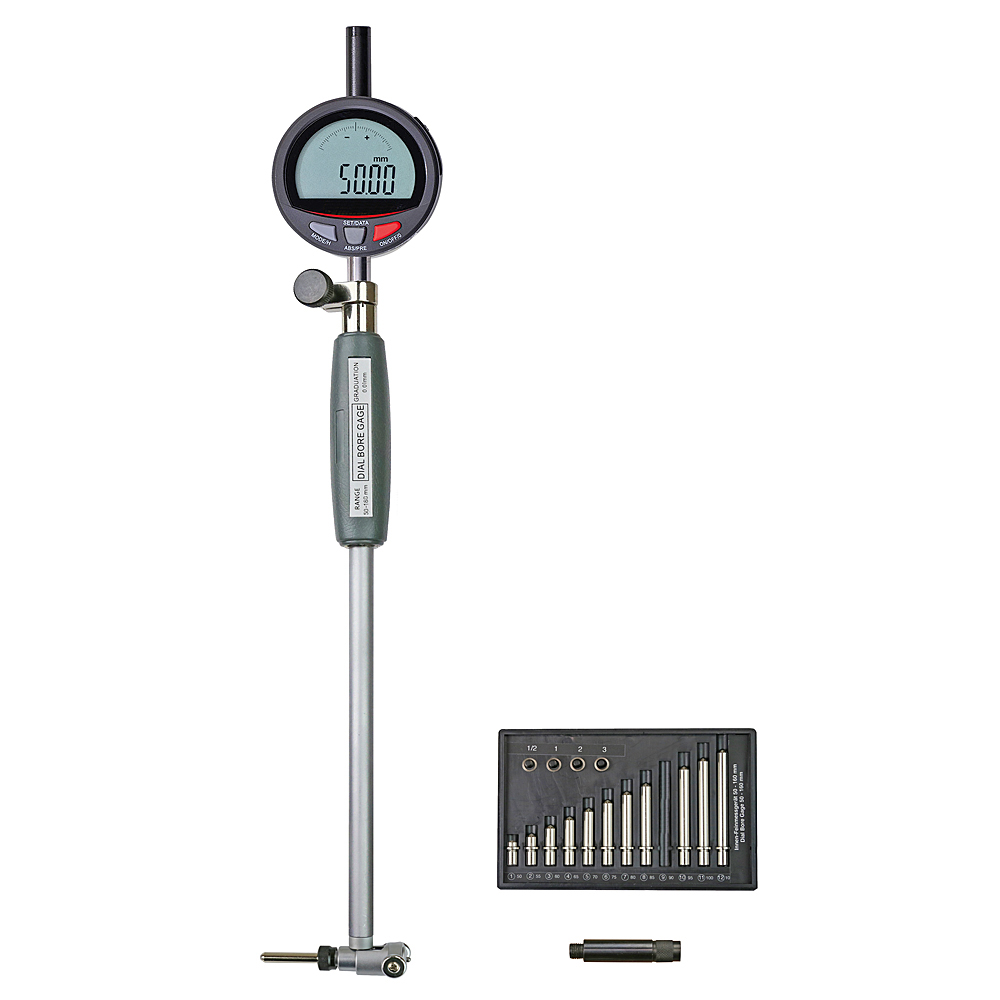

Digital internal measuring instrument range 50 - 160 mm - mount satin chrome finished- repeat accuracy 0.005 mm- with digital dial indicator:   - reading 0.01 mm   - accuracy 0.01 mm   - repeatability 0.01 mm   - meas. direction reversible   - measuring force ≤ 2.2 N   - preset: to set the init value- in case/box Depth: 150 mm Range: 50 - 160 mm

100 mm extension for internal measuring instrument - length 100 mm, Ø 18 mm, M 14, for extension of the range- suitable for internal measuring instrument range 160 - 250 mm and 250 - 450 mm

Extension 1000 mm for internal measuring instrument - for depth extension of internal measuring instruments range 160 - 250 mm and 250 - 450 mm with  extra long rod- extension 1000 mm

Extension 1000 mm for internal measuring instrument - for depth extension of internal measuring instruments range 50 - 160 mm with  extra long rod- extension 1000 mm

50 mm extension for internal measuring instrument - length 50 mm, Ø 18 mm, M 14, for extension of the range- suitable for internal measuring instrument range 160 - 250 mm and 250 - 450 mm

55 mm extension for internal measuring instrument - length 55 mm, Ø 14 mm, M 14, for extension of the range- suitable for internal measuring instrument range 50 - 160 mm and 50 - 180 mm

Internal measuring instrument range 10 - 18 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 100 mm Range: 10 - 18 mm

Internal measuring instrument 10 - 18 mm range - measuring face made of carbide- mount satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy: 0,005 mm - in case/box Range: 10 - 18 mm

Internal measuring instrument range 100 - 250 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 220 mm Range: 100 - 250 mm

Internal measuring instrument range 100 - 300 mm - repeat accuracy 0,005 mm- large measuring range- satin chrome finished - with dial indicator, reading 0,01 mm - in case/box Range: 100 - 300 mmDepth: 250 mmMeasuring tips: 6Extensions: 50 + 100 mm

Internal measuring instrument range 160 - 250 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 400 mm Range: 160 - 250 mm

Internal measuring instrument 160 - 250 mm with extra long rod - mount satin chrome finished - with dial indicator, reading 0,01 mm- repeat accuracy 0,02 mm- in case/box Range: 160 - 250 mmDepth: 500 mmMeasuring tips: 10Extensions: 50 mm

Internal measuring instrument 160 - 250 mm range with extra long rod - with extra long rode- mount satin chrome finished - with dial indicator, reading 0,01 mm- repeat accuracy 0,02 mm- in case/box Range: 160 - 250 mmDepth: 1000 mmMeasuring tips: 10Extensions: 50 mm

Internal measuring instrument range 18 - 35 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 150 mm Range: 18 - 35 mm

Internal measuring instrument 18 - 35 mm range - measuring face made of carbide- mount satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy: 0,005 mm - in case/box Range: 18 - 35 mm

Internal measuring instrument range 250 - 450 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 320 mm Range: 250 - 450 mm

Internal measuring instrument 250 - 450 mm with extra long rod - mount satin chrome finished - with dial indicator, reading 0,01 mm- repeat accuracy 0,02 mm- in case/box Range: 250 - 450 mmDepth: 500 mmMeasuring tips: 4Extensions: 100 mm

Internal measuring instrument 250 - 450 mm depth 1000 mm - with extra long rod, mount satin chrome finished - with dial indicator, reading 0,01 mm- repeat accuracy 0,02 mm- in case/box Range: 250 - 450 mmDepth: 1000 mmMeasuring tips: 4Extensions: 100 mm

Internal measuring instrument range 30 - 100 mm - repeat accuracy 0,005 mm- large measuring range- mount satin chrome finished - with dial indicator, reading 0,01 mm - in case/box Range: 30 - 100 mmDepth: 250 mmMeasuring tips: 5Extensions: 25 + 25 mm

Internal measuring instrument range 35 - 50 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 150 mm Range: 35 - 50 mm

Internal measuring instrument 35 - 50 mm range - measuring face made of carbide- mount satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy: 0,005 mm - in case/box Range: 35 - 50 mm

Internal measuring instrument 35 - 70 mm with extended range - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy: 0,005 mm - in case/box Depth: 150 mm Measuring tips: 8 Shim ring: 0,5, 1, 2, 3 mm Extensions:  - Range: 35 - 70 mm

Internal measuring instrument range 50 - 100 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 150 mm Range: 50 - 100 mm

Internal measuring instrument range 50 - 160 mm - satin chrome finished - with dial indicator, reading 0,01 mm - repeat accuracy 0,005 mm - in case/box Depth: 150 mm Range: 50 - 160 mm

Internal measuring instrument 50 - 160 mm with extra long rod - mount satin chrome finished - with dial indicator, reading 0,01 mm- repeat accuracy 0,02 mm- in case/box Range: 50 - 160 mmDepth: 500 mmMeasuring tips: 6Extensions: 50 mm
