Auto Focus Video Measuring Microscope DM-50
€4,305.00*
€5,122.95 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
521-2013
Customs tariff number
80258900
European Article Number
6972727952013
Weight
20 kg
Stock:
1
Related links:
Request Item
Product information "Auto Focus Video Measuring Microscope DM-50"
Auto Focus Video Measuring Microscope

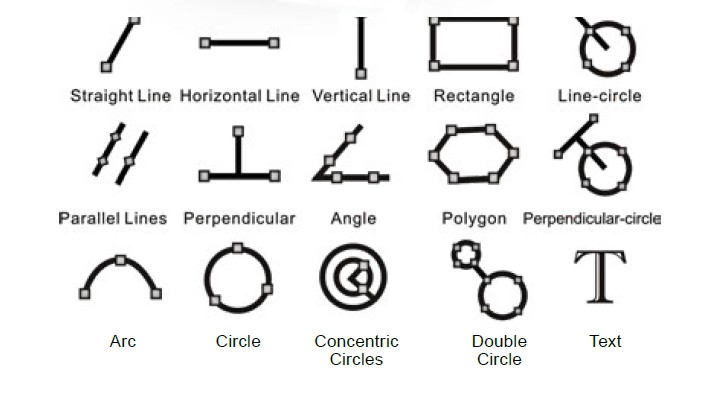

The DM-50 can measure straight lines, angles, concentric circles, parallel lines, point to line distance, point and line to concentric circles, diameter, circumference and area, length and width of rectangle, and can calculate circumference and area. It can measure the polygon and calculate its area. All the corresponding measurement report can be output to USB disk.,
- - it can be appied to incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields
- - integral design
- - built-in-high-definition HDMI integrated camera, directly connected to HDMI display, can take pictures or videos
- - with high definition 0.7 - 4.5X parallel continue zoom lens, it is much more convenience and fast to switch objective magnification
- - with adjustable LED surface reflection illumination, is able to control brightness independently
- - with 2 mega pixel auto focus camera, no need to waste time for manual focus frequently
- - with its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height and radius elements
- - Delivery: 1 x Instrument Main unit, 1 Monitor: 16:9, 21,5", 1x Mouse, 1 x USB Flash Disk, 1 x Power adapter DC 5V (Camera), DC 12 V (illumination), 1 x Operation manual, 1 x Warrenty card, 1 x Certificate, 1 x Packing list
Technical Data
| Electronic Magnification: | 8x - 206x (HDMI 16:9, 21,5" Monitor) |
| Optical Objective: | 0,7x - 4,5x zoom lens |
| Zoom ratio: | 6,5:1; 0,5x C-Mount camera adapter |
| Camera Parameters: | 2 M pixe (1920 x 1080) Image size: 1/2,8 " Frames per second: 1080P @ 60 fps |
| Measuring function: | Linear dimensions such as distance, perimeter, area, angle, radian, width, height and radius elements are measured |
| Measurement accuracy: | 0,02-0,003 mm |
| Illumination: | adjustable LED surface illumination |
| Microscope Stand: | Z-axis travel: 100 mm |
| Power supply: | AC 90-204 V. 50-60 Hz |
| Dimension: | L 375 x W 285 x H 500 mm |
| Net weight: | 6,5 kg |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
