Pin gauge set 40 pcs. for thread measuring

Preview: Gewinde Messstift-Satz Preview: Zeichnung 1 Gewinde Messstift-Satz Preview: Zeichnung 2 Gewinde Messstift-Satz Preview: Umrechnungstabelle Gewinde Messstift-Satz

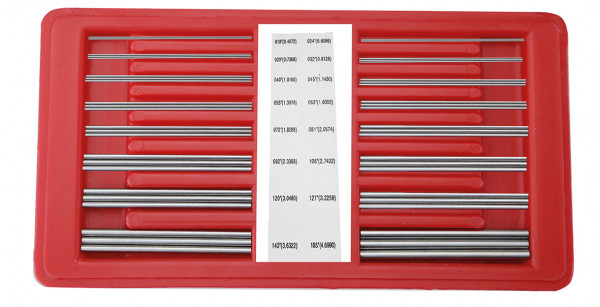

Gewinde Messstift-Satz

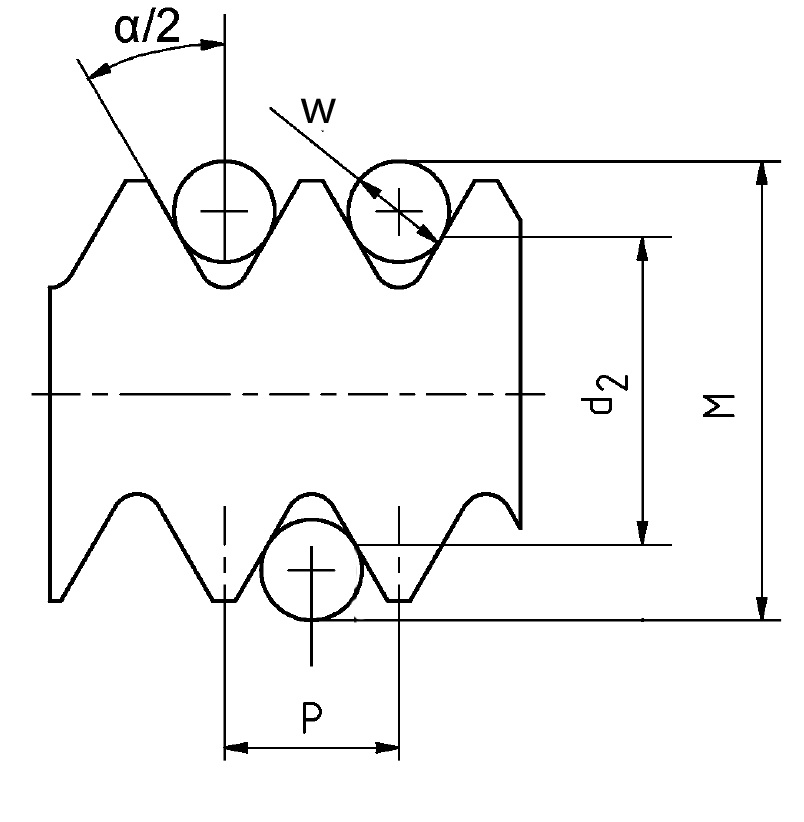

Zeichnung 1 Gewinde Messstift-Satz

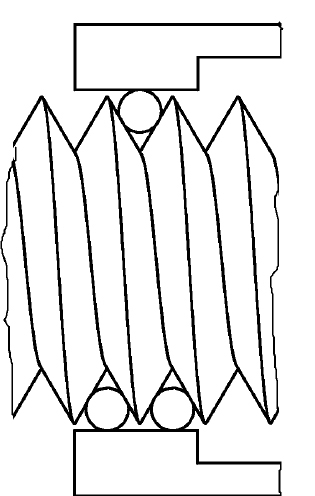

Zeichnung 2 Gewinde Messstift-Satz

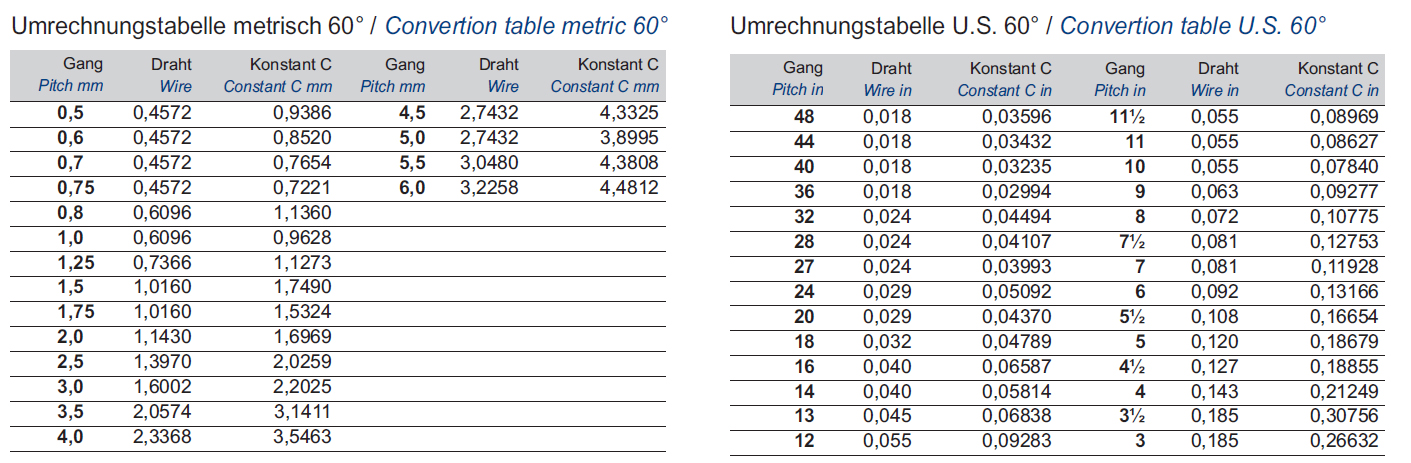

Umrechnungstabelle Gewinde Messstift-Satz

€54.90 *
€65.33 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 318.510
  • Customs tariff number: 9017 3000
  • European article number: 4054469129112
  • Weight: 0,4 kg
  • In stock: 9
Description Product Safety Information Evaluations 0
Description
Pin gauge set for thread measuring - for measuring of thread ( not thread gauge! ) - for... more
Close menu
Product information "Pin gauge set 40 pcs. for thread measuring"

Pin gauge set for thread measuring

- for measuring of thread ( not thread gauge! )
- for thread pitch 0,5 - 6 mm, metric 60° and 3 - 48 TPI, US 55°
- 70 mm long, 3 pcs. each size
- accuracy : ± 0,004 mm
- in case/ box

Pcs. / Set: 48

Size mm:
0,4572 / 0,6096 / 0,7366 / 0,8128 / 1,016 / 1,143 /
1,397 / 1,6002 / 1,8288 / 2,0574 / 2,3368 / 2,7432/
3,0480 / 3,2258 / 3,6322 / 4,6990
