Digital three point internal micrometer 8 - 10 mm

Digital three point internal micrometer 8 - 10 mm IP 65 DIN 863

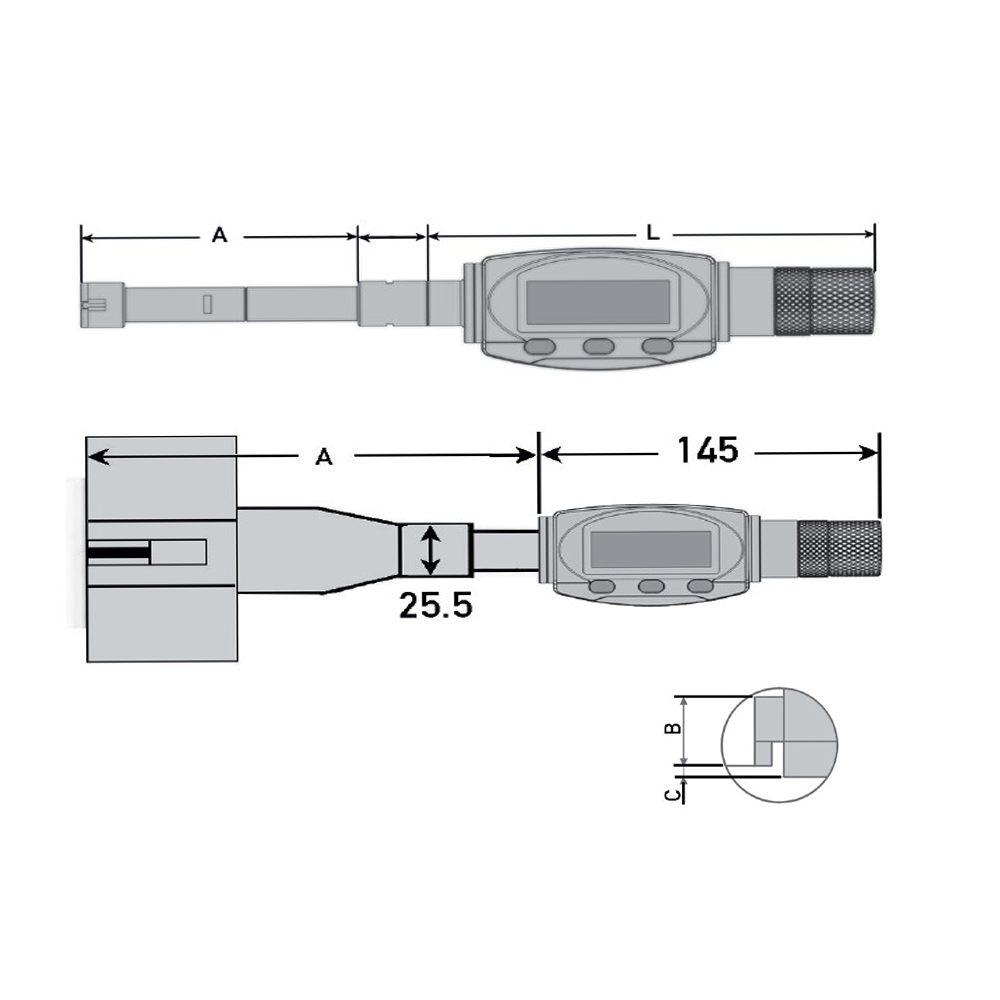

Technical drawing Digital three point internal micrometer 8 - 10 mm IP 65 DIN 863

€296.40 *

€352.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: 312.231.PN
Customs tariff number: 9017 3000
European article number: 4054469179070
Weight: 0,7 kg
In stock: 5

Digital three point internal micrometer 8 - 10 mm IP 65 - suitable for measuring blind... more

Close menu

Product information "Digital three point internal micrometer 8 - 10 mm IP 65 DIN 863"

Digital three point internal micrometer 8 - 10 mm IP 65

- suitable for measuring blind holes
- with setting ring 8 mm and extension L 101,6 x Ø 5,8
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- in case/box

Range 8 - 10 mm

Range:	8 - 10 mm
Type:	digital, IP 65
usable for measuring of:	blind hole
Reading:	0,001 mm
Accuracy:	0,004 mm
Data output:	RB 6

Related links to "Digital three point internal micrometer 8 - 10 mm IP 65 DIN 863"

Messbereich mm Range mm Einstellring mm Setting ring mm... more

Zurück

Messbereich mm Range mm	Einstellring mm Setting ring mm	Verlängerung mm Extension mm	A mm	B mm	C mm	L mm	Ablesung mm Reading mm	*Genauigkeit µm Accuracy* µm**
8 - 10	8	101,6 x Ø 5,8	55	20	1,5	128,8	0,001	0,004
* bei vollanliegenden Messflächen / at full contact of the measuring faces
