3-point internal micrometer set 6 - 12 mm digital IP 65 DIN 863
€810.00*
Available, delivery time: 1-3 workdays
Product information "3-point internal micrometer set 6 - 12 mm digital IP 65 DIN 863"
Digital 3-point internal micrometer set 6 - 12 mm IP 65
- three pieces per set
- with setting rings 8 mm, 10 mm and extension L 101,6 x Ø 5,8
- Digital-Display with on/preset, mm/inch and hold button
- water and dust protect (IP 65)
- with data output RB 6
- suitable for measuring blind holes
- in case/box
Range 6 - 12 mm
| Accuracy: | 0,004 mm |
|---|---|
| Data output: | RB 6 |
| Range: | 6 - 8 mm, 8 - 10 mm, 10 - 12 mm |
| Reading: | 0,001 mm |
| Set: | 3 pcs. |
| Type: | digital, IP 65 |
| usable for measuring of: | blind hole |

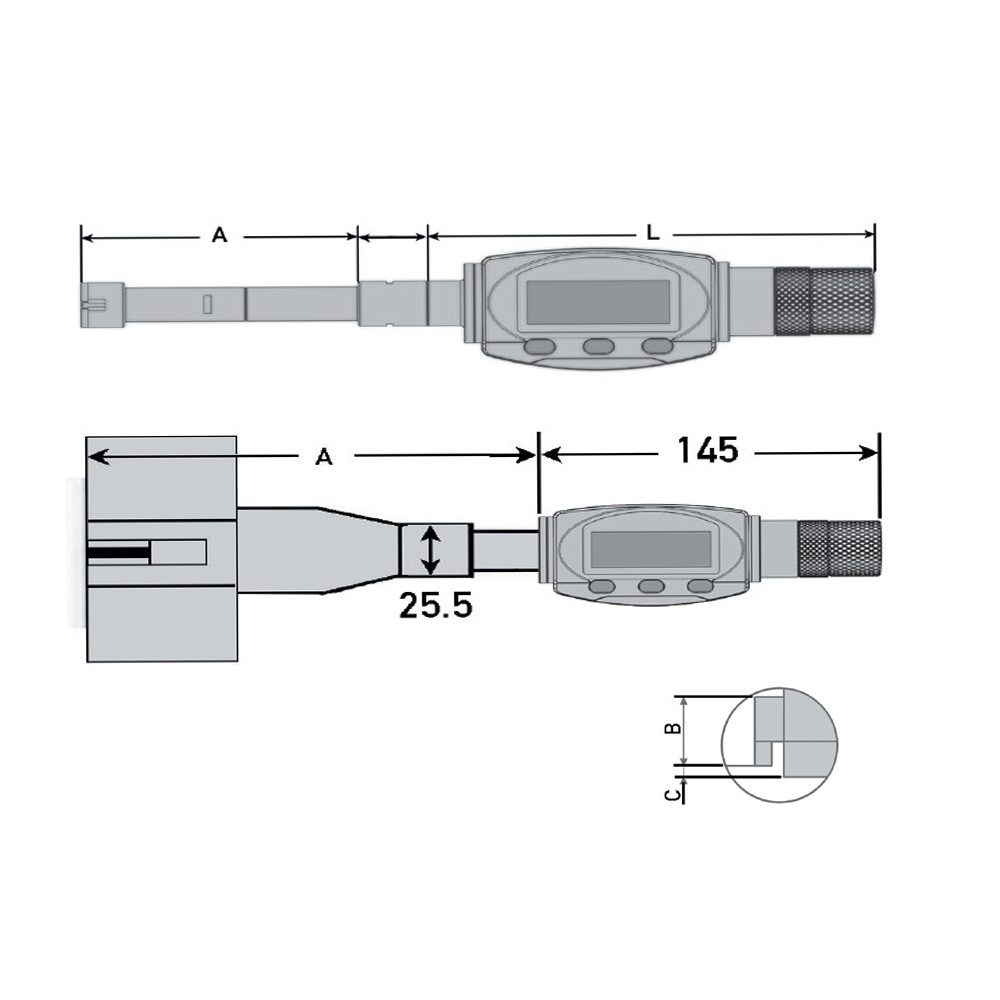

Technical Data
| Messbereich mm Range mm |
Einstellring mm Setting ring mm |
Verlängerung mm Extension mm |
C mm |
B mm |
A mm |
Ablesung mm Reading mm |
Genauigkeit* µm Accuracy* µm |
| 6 - 8 | 8 + 10 | 101,6 x Ø 5,8 | 1,0 | 3,0 | 55 | 0,001 | 0,004 |
| 8 - 10 | 1,5 | 3,0 | 55 | ||||
| 10 - 12 | 1,5 | 3,0 | 55 | ||||
| * bei vollanliegenden Messflächen / at full contact of the measuring faces | |||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification threepoint internal micrometer set until 12 mm - for analog and digital threepoint internal micrometer sets until range 12 mm - for sets with 3 threepoint micrometers and 3 setting rings- the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Extension length 101,6 mm Ø 5,8 mm for three point internal micrometer - for three point internal micrometer Art.-Nr. 312.230.PN - 312.242.PN, Art.-Nr. 312.283.PN - 312.289.PN, Art. -Nr. 312.274.PN- 312.277.PN und Art.-Nr. 312.324.O - 312.327.O - for measuring range 6 - 8 mm, 8 - 10 mm, 10 - 12 mm- length 101,6 mm, Ø 5,8 mm- thread M5
Similar products

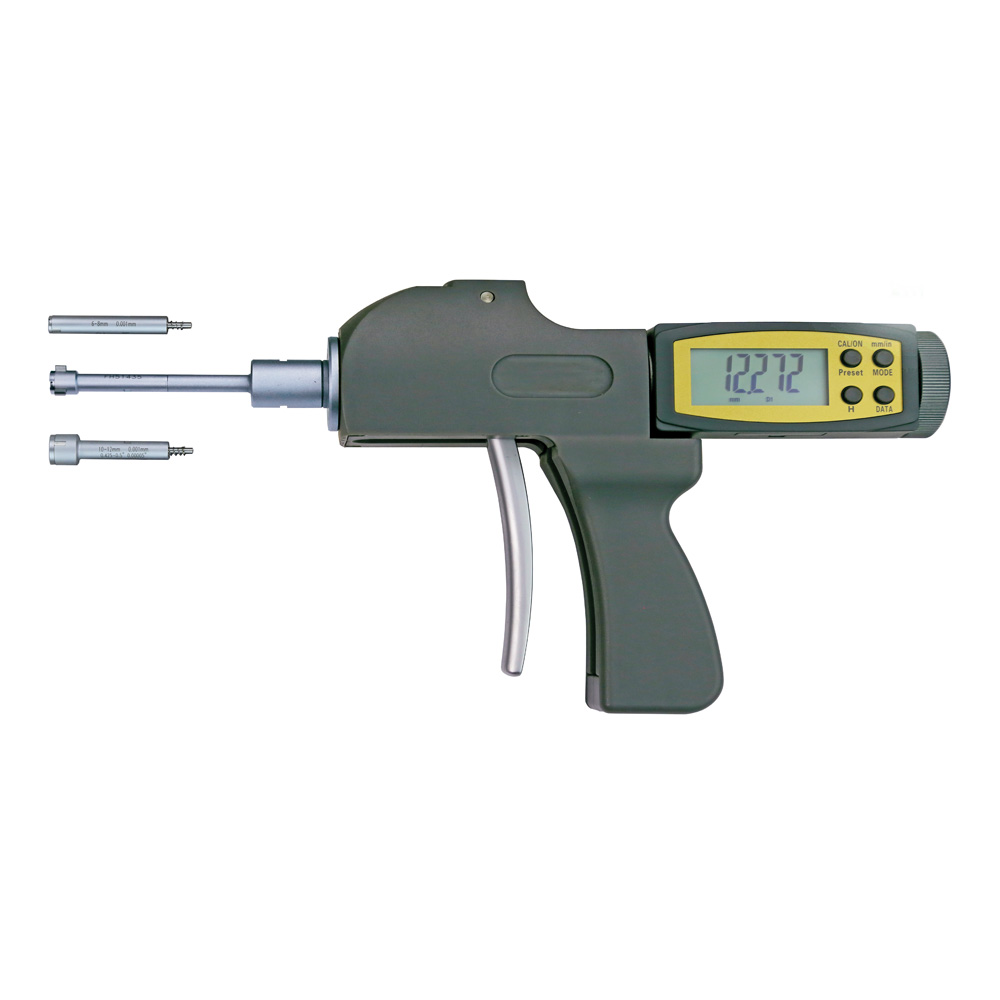

Digital pistol three point internal gauge - 3 pieces/ set- range 6 - 12 mm- for blind hole- display rotate 90°, with on/off/set, hold, mm/inch/Mode button- with bluetooth data output- in box/case Attention:Setting standard an extension are not included!
Digital three point internal micrometer 6 - 8 mm IP 65 - suitable for measuring blind holes- with setting ring 8 mm and extension L 101,6 x Ø 5,8- Digital-Display with on/preset, mm/inch and hold button- water and dust protect (IP 65)- with data output RB 6- in case/box Range 6 - 8 mm

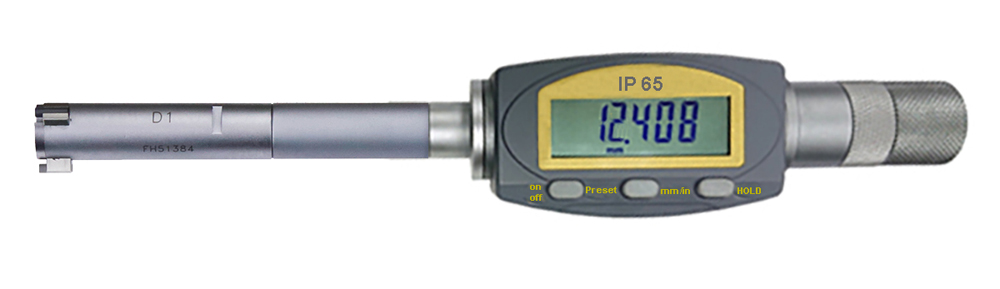

Digital three point internal micrometer 8 - 10 mm IP 65 - suitable for measuring blind holes- with setting ring 8 mm and extension L 101,6 x Ø 5,8- Digital-Display with on/preset, mm/inch and hold button- water and dust protect (IP 65)- with data output RB 6- in case/box Range 8 - 10 mm

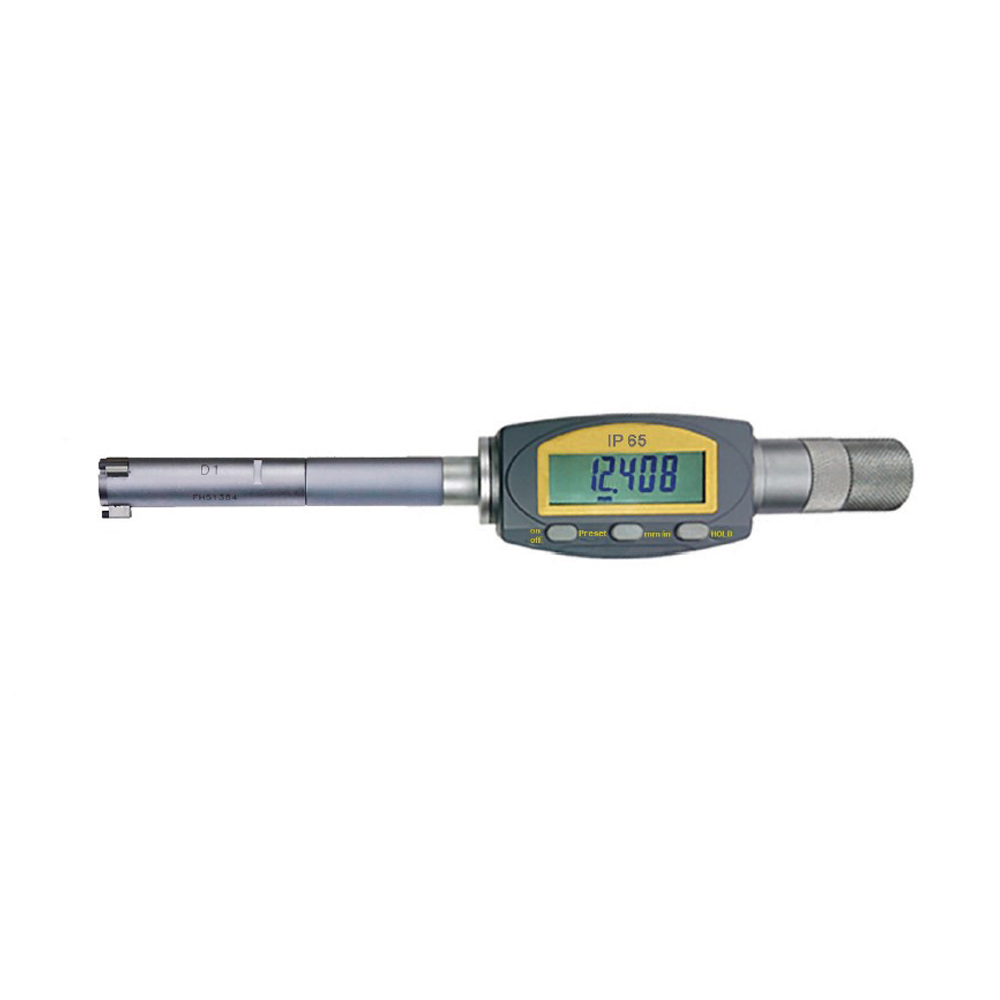

Digital three point internal micrometer 10 - 12 mm IP 65 - suitable for measuring blind holes- with setting ring 10 mm and extension L 101,6 x Ø 5,8- Digital-Display with on/preset, mm/inch and hold button- water and dust protect (IP 65)- with data output RB 6- in case/box Range 10 - 12 mm
