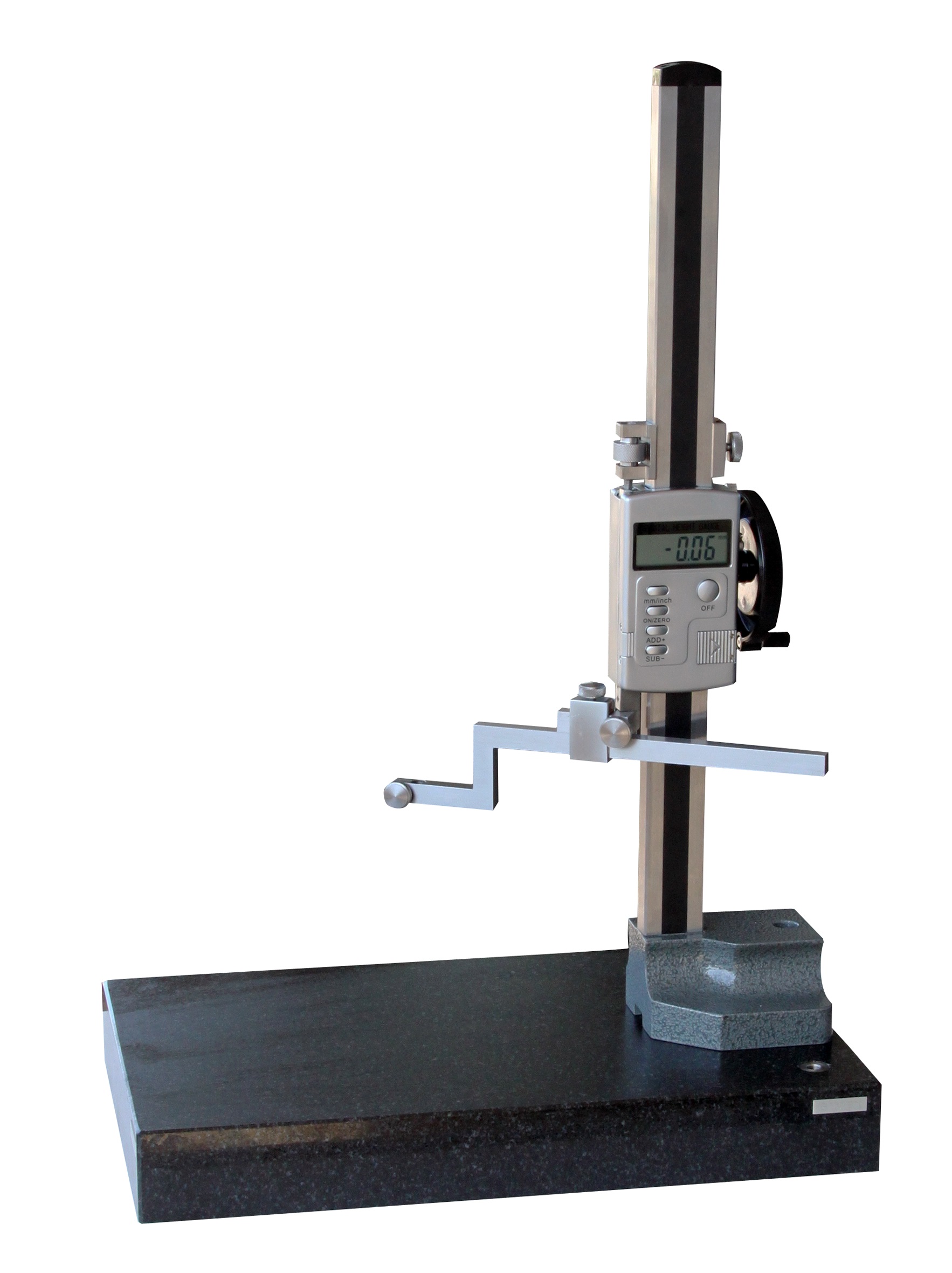

Precision measuring table with digital display

Precision dial bench gauge with digital display Granit measuring table - degree 0 - 400 x 250 x 50 mm Column with - digital display, reading 0,01 mm - display adjustable - drive wheel - fine adjustment - accuracy 0,03 mm Measuring arm - for dial indicator with shaft ø 8 mm - length 250 mm - cross section 12 x 10 mm - rotatable to 90° Range 280 mm Image 2: Example with dial indicator - for simple measuring direct reading at the display   on the column. Accuracy until 0,03 mm. - for exact measuring reading from dial indicator. (Display   on the column need to be adjusted with parallel gauge   before. The accuracy depends on the accuracy of the   dial indicator.)   Measuring value = value display (column) + value of indicator Image 3: Example with inductive probe - for exact measuring in range µm. (Display on the   column need to be adjusted with parallel gauge before.)   Measuring value = value display (column) + value of probe
