Checking mandrel HSK-E 50-32-250 to ISO 12164 / DIN 69893
€366.00*
€435.54 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
318.926
Customs tariff number
9017 3000
European Article Number
4054469183893
Weight
2,2 kg
Stock:
10
Related links:
Request Item
Product information "Checking mandrel HSK-E 50-32-250 to ISO 12164 / DIN 69893"
Checking mandrel HSK-E 50-32-250
- made of tool steel, hardened
- hardness: HRC 58
- for concentricity testing and alligment of machine spindles with HSK holder to ISO 12164 / DIN 69893
- cylindricity < 0,003 mm

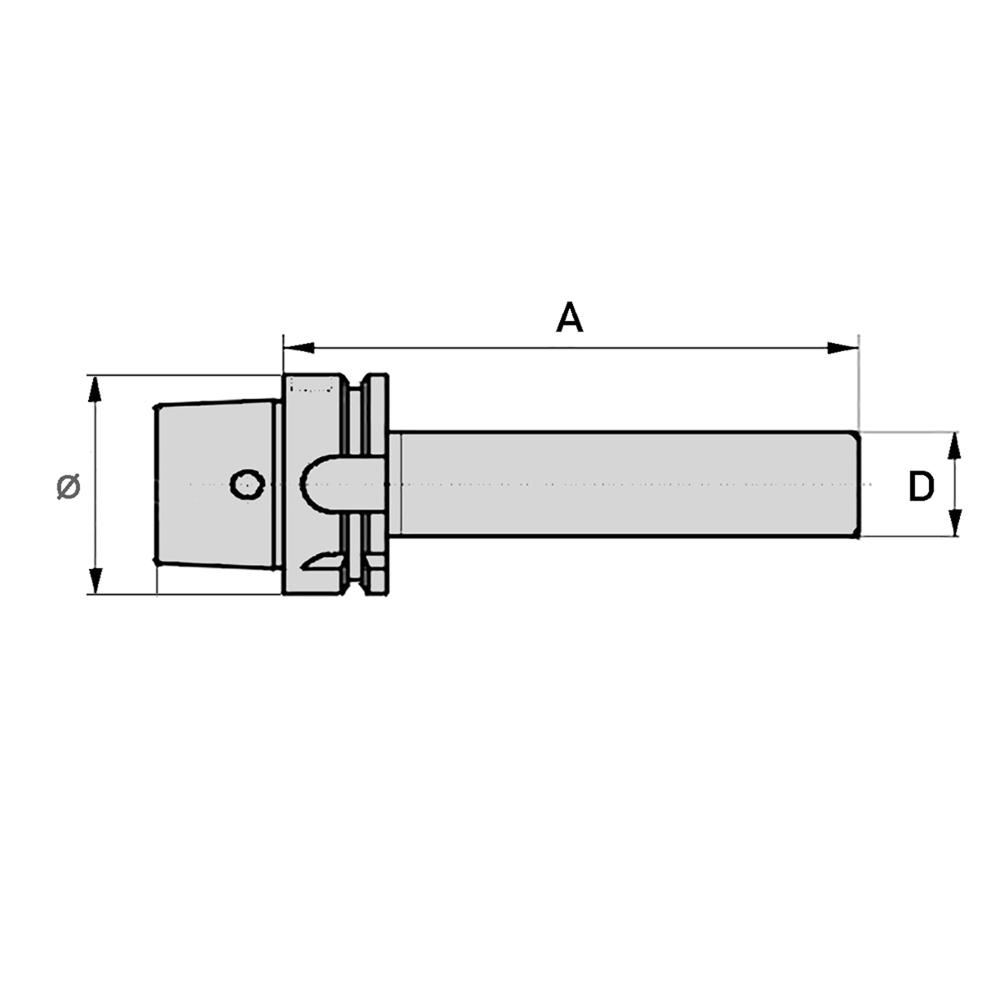

Technical Data
| Typ Type |
Form Form |
Ø mm |
D mm |
A mm |
Zylindrizität mm Cylindricity mm |
| HSK-E 50-32-250 | E | 50 | 32 | 250 | < 0,003 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Skip product gallery
Accessories
Certification for Checking mandrel
€135.60*
Certification Checking mandrel
- for checking mandrel HSK, MAS-BT, MK, SK and cylindrical- the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Stock: 0
