Precision control caliper 1000 x 300 mm with points manufacture standard
€699.00*
Available, delivery time: 1-3 workdays
Product information "Precision control caliper 1000 x 300 mm with points manufacture standard"
Control caliper 0 - 1000 mm with points
- made of stainless steel, hardened
- satin chrome finished
- monoblock
- for outside, inside and step measuring
- with fine adjustment
- reading 0,05 mm / 1/128"
- accuracy manufacture standard
- in case/box (for transport only)
Jaws 300 mm
Range 1000 mm
| Accuracy: | nach Werksnorm |
|---|---|
| Jaws: | 300 mm |
| Nonius: | 1/20 / 1/128" |
| Range: | 0 - 1000 mm |
| Type: | analogue, made of stainless steel, hardened, with fine adjustment, with points |

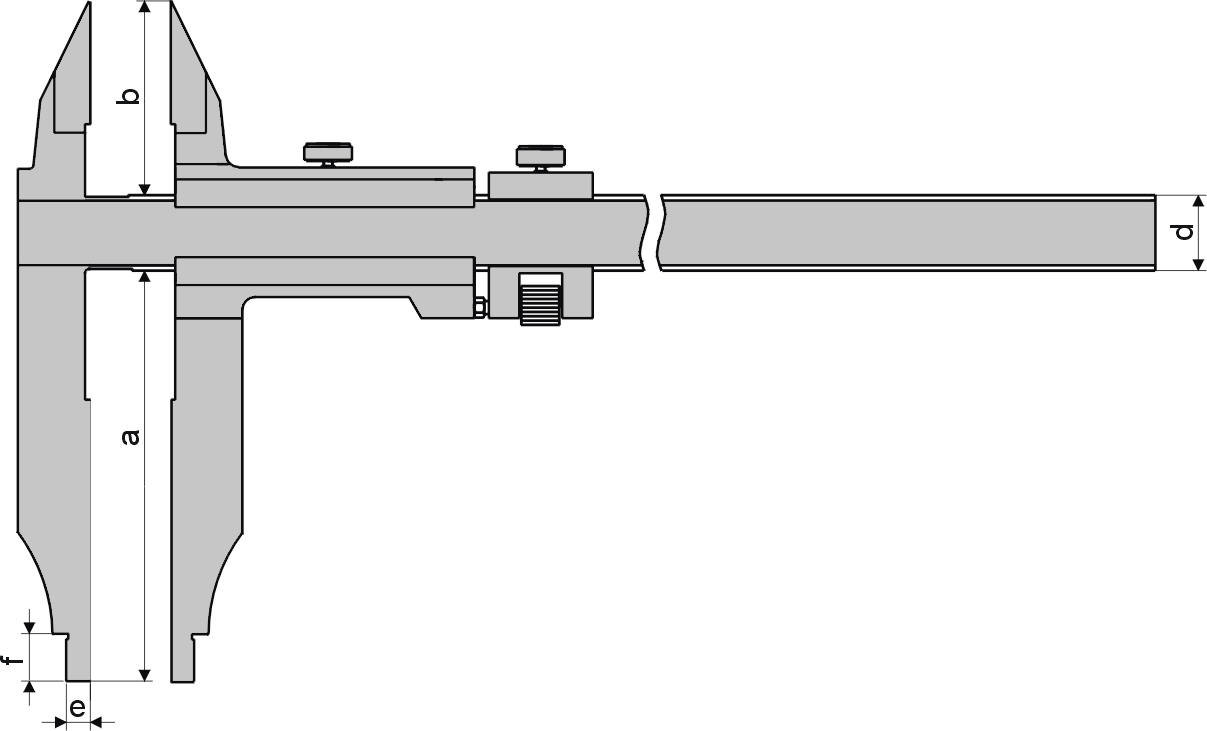

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
b mm | d mm | e mm | f mm |
| 1000 / 40" | 300 | 67 | 31 | 10 | 18 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 1000 mm - for analog and digital caliper untill range 1000 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
DAkkS certification for caliper > 500 - 1000 mm - for analog and digital caliper range > 500 - 1000 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618
