Precision control caliper 0 - 1500 mm without points
€1,089.00*
Available, delivery time: 1-3 workdays
Product information "Precision control caliper 0 - 1500 mm without points "
Precison control caliper 1500 mm without points
- made of stainless steel, hardened
- satin chrome finished
- monoblock
- for outside, inside and step measuring
- with fine adjustment
- reading 0,05 mm / 1/128"
- accuracy manufacture standard
- in case/box (for transport only)
Oversize/ overweight product !
| Accuracy: | manufacture standard |
|---|---|
| Jaws: | 300 mm |
| Nonius: | 1/20 / 1/128" |
| Range: | 0 - 1500 mm |
| Type: | analogue, made of stainless steel, hardened, with fine adjustment, without points |

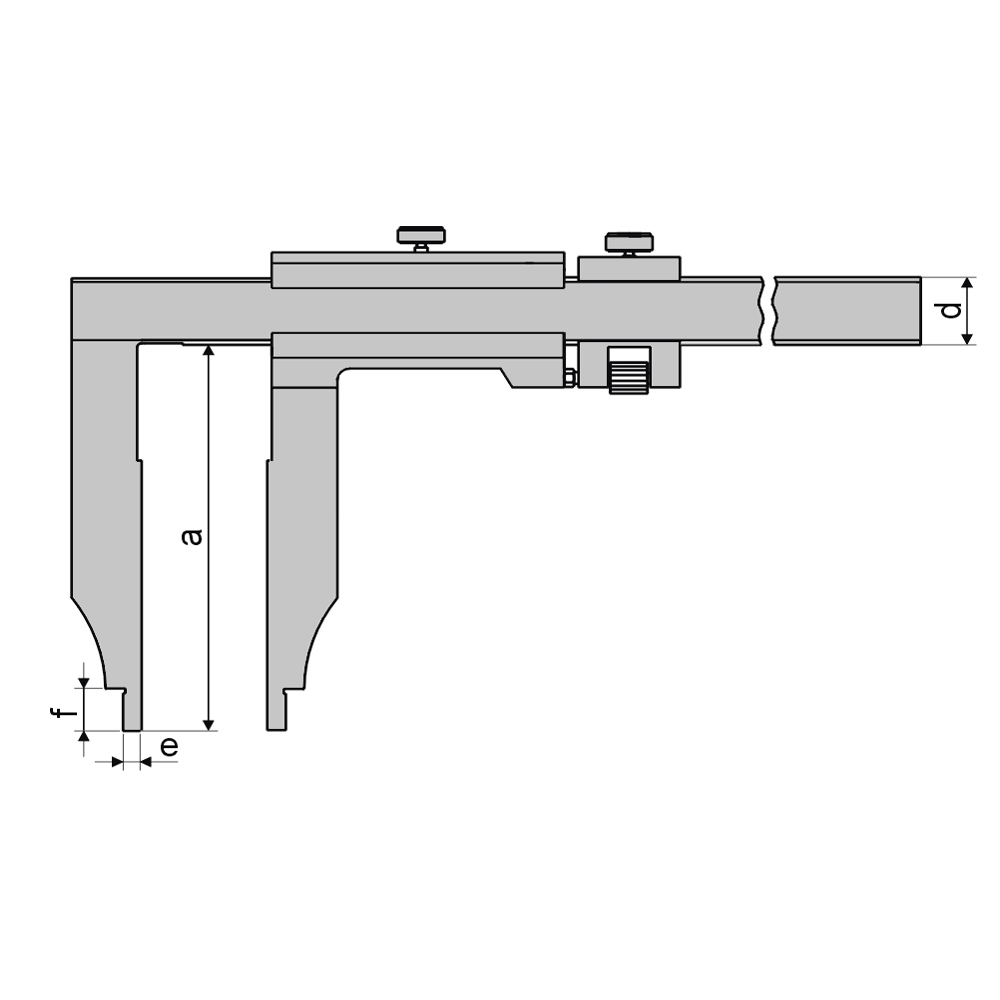

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
d mm | e mm | f mm |
| 1500 / 60" | 300 | 42 | 10 | 24 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 1500 mm - for analog and digital caliper until range 1500 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
