Control caliper 200 x 60 mm with points DIN 862
€45.84*
Available, delivery time: 1-3 workdays
Product information "Control caliper 200 x 60 mm with points DIN 862"
Control caliper 200 x 60 mm with points
- made of stainless steel
- without fine adjustment
- scale and nonius satin chrome finished
- reading 0,05 mm / 1/128"
- accuracy DIN 862
- in case/box (for transport only)
Jaws 60 mm
Range 200 mm
| Accuracy: | DIN 862 |
|---|---|
| Jaws: | 60 mm |
| Range: | 0 - 200 mm |
| Reading: | 0,05 mm |
| Type: | analogue, made of stainless steel, with points |

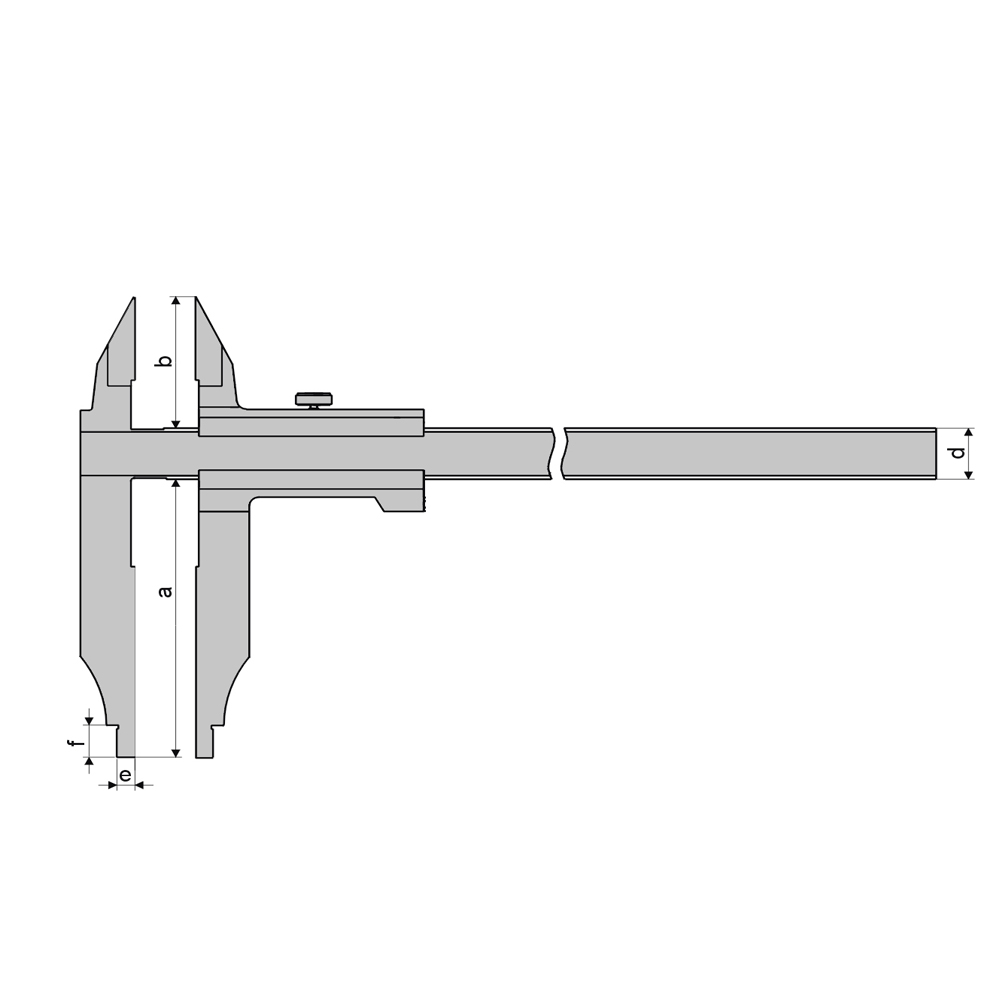

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
Ablesung mm Reading mm |
b mm | d mm | e mm | f mm |
| 200 | 60 | 0,05 | 40 | 20 | 5 | 12 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
DAkkS certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618
