Digital control caliper 300 x 150 mm with points IP 65
Product information "Digital control caliper 300 x 150 mm with points IP 65"
Digital control caliper 300 x 150 mm with points
- range 300 mm, jaws 150 mm
- with inductiv measuring system
- IP 65 protection, water and dust proof
- made of stainless steel, hardened
- with fine adjustment
- reading: 0,01 mm oder 0,0005”
- with mm/inch, hold, set, on/off, 0/inc und data button
- with data output RB 6
- in case/box (for transport only)
- range 300 mm
- jaws 150 mm
- accuracy 0,05 mm
- points 38 mm
| Accuracy: | 0,05 mm |
|---|---|
| Data output: | RB 6 |
| Jaws: | 150 mm |
| Protection class: | IP 65 |
| Range: | 0 - 300 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, with fine adjustment, with inductive measuring system, with points |

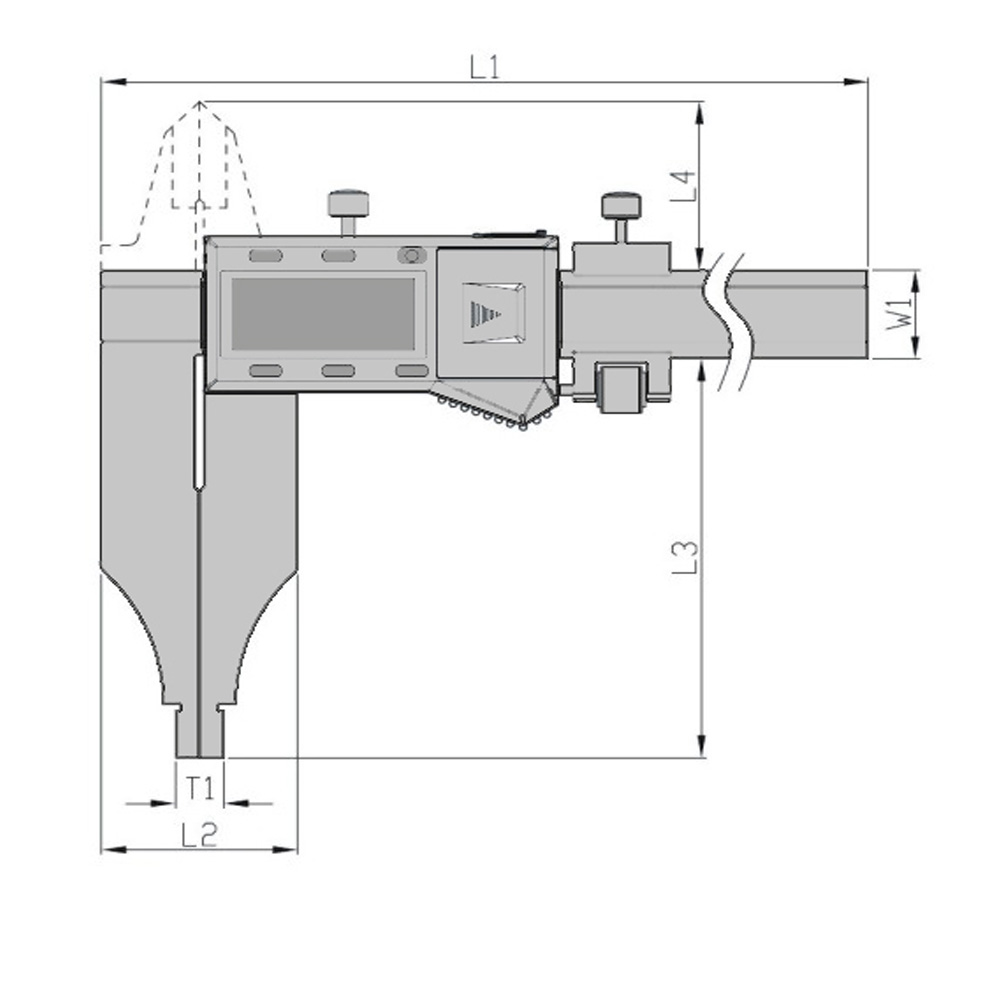

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
Genauigkeit mm Accuracy mm |
T1 mm | L2 mm | L3 mm | W1 mm |
| 300 | 150 | 0,05 | 10 | 40 | 150 | 20 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
