Digital control caliper 500 x 150 mm with points 3V
€213.00*
Delivery time upon request
Product information "Digital control caliper 500 x 150 mm with points 3V"
Digital control caliper 0 - 500 mm with points
- measuring system with 3V
- made of stainless steel, hardened
- with fine adjustment
- accuracy manufacture standard
- reading 0,01 mm oder 0,0005"
- with on/off, mm/inch, 0/abs, hold, tol and preset button
- Data output (RB 5)
- in case/box (for transport only!)
Accuracy 0,05 mm
Jaws 150 mm
Range 500 mm
| Accuracy: | 0,05 mm |
|---|---|
| Data output: | RB 5 |
| Jaws: | 150 mm |
| Range: | 0 - 500 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, Measuring system with 3 V, with fine adjustment, with points |

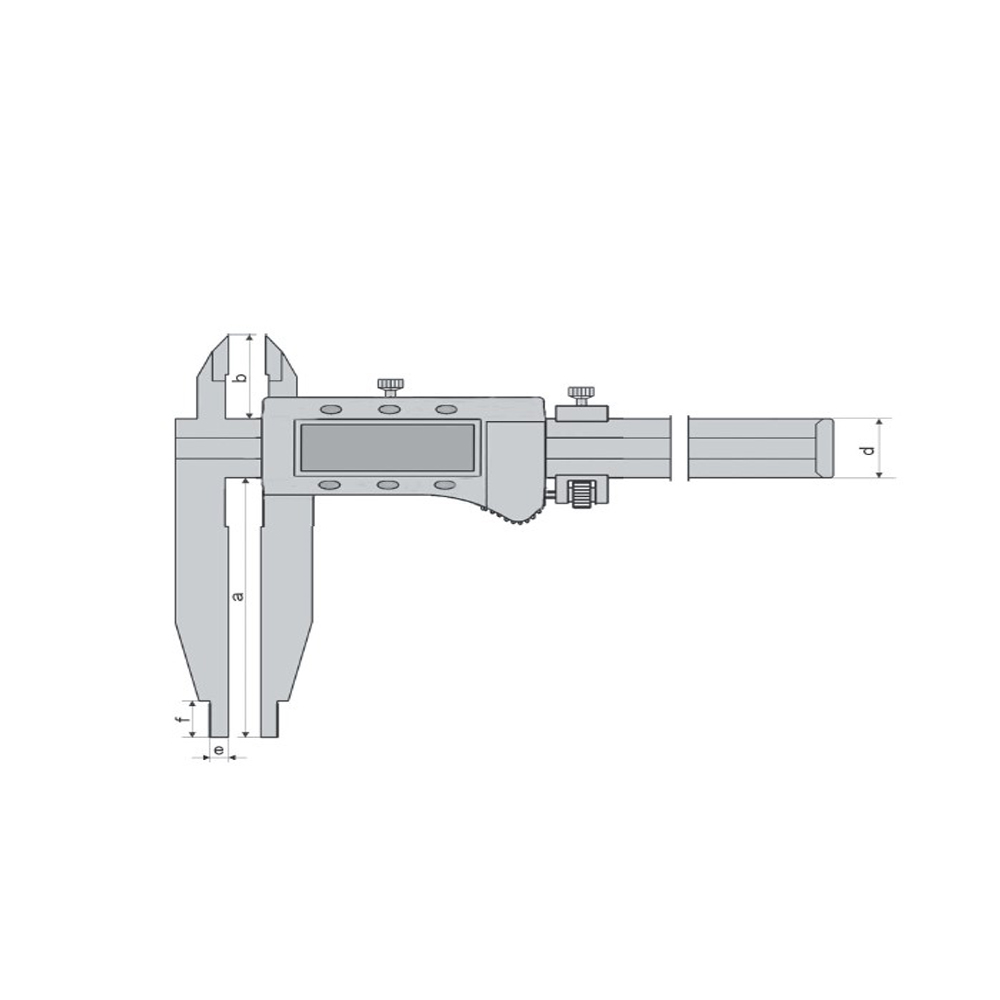

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
Genauigkeit mm Accuracy mm |
b mm | d mm | e mm | f mm |
| 500 | 150 | 0,05 | 56 | 24 | 10 | 18 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Measuring adapter for vernier caliper 500 mm - accessories for caliper - useable for the most caliper of our catalogue (thickness of jaws max. 5,5 mm) - shank for inserts Ø 5 mm - useable for caliper 500 mm
Certification for caliper > 200 - 500 mm - for analog and digital caliper until range > 200 - 500 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Connection cable for devices with RB 5 data output - length about 100 cm- connection cable RB 5 / RB 5 for connecting the measuring device to the USB interface no. 220.250.2
DAkkS certification for caliper 200 - 500 mm - for analog and digital caliper range > 200 - 500 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618
