Digital control caliper 500 x 250 mm without points 3V
Product information "Digital control caliper 500 x 250 mm without points 3V"
Digital control caliper 500 x 250 mm without points
- measuring system with 3V
- made of stainless steel, hardened
- with fine adjustment
- accuracy manufacture standard
- reading 0,01 mm oder 0,0005"
- with on/off, mm/inch, 0/abs, hold, tol and preset button
- Data output (RB 5)
- in case/box (for transport only!)
Accuracy 0,05 mm
Jaws 250 mm
Range 500 mm
| Accuracy: | 0,05 mm |
|---|---|
| Data output: | RB 5 |
| Range: | 0 - 500 mm |
| Reading: | 0,01 mm |
| Type: | Measuring system with 3 V, digital, made of stainless steel, hardened, with fine adjustment, without points |

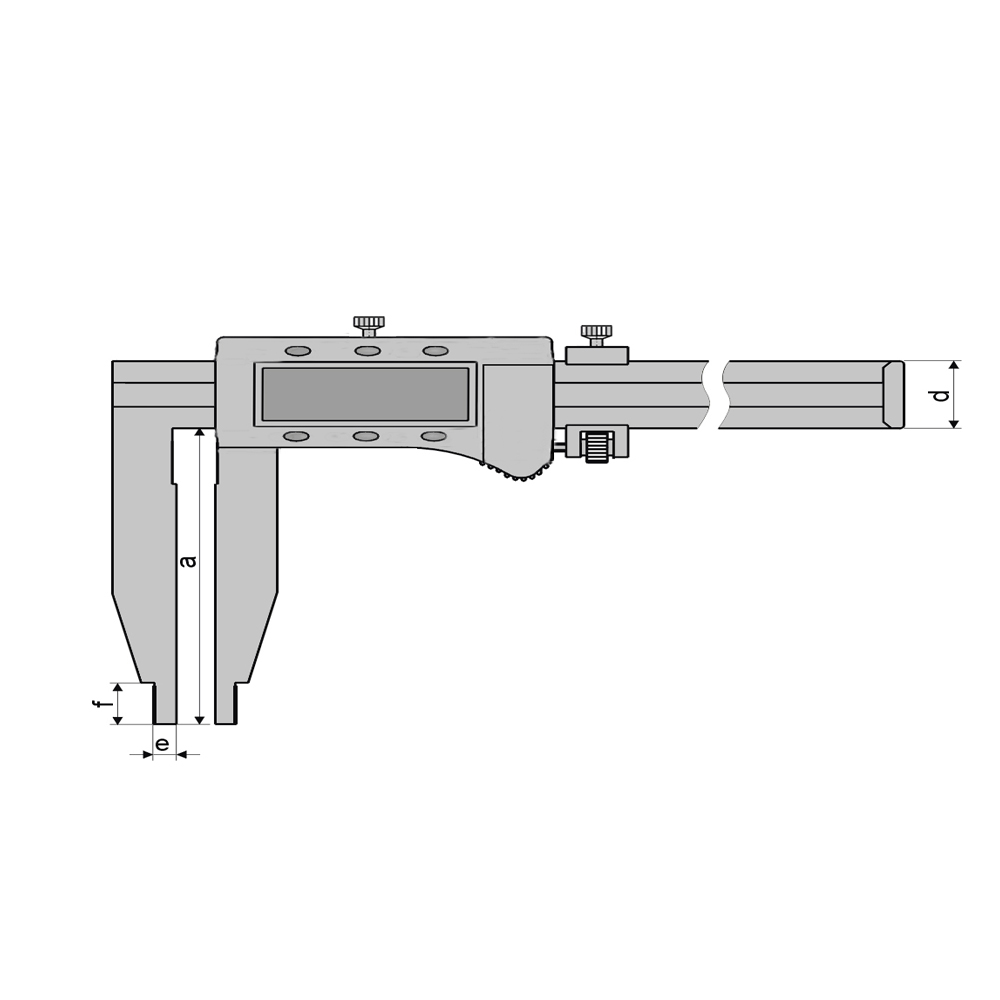

Technical Data
| Messbereich mm Range mm |
Schnabellänge a mm Jaws a mm |
Genauigkeit mm Accuracy mm |
d mm | e mm | f mm |
| 500 | 250 | 0,05 | 24 | 10 | 18 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
