Digital depth caliper 0 - 200 mm DIN 862 3V

Messwelt

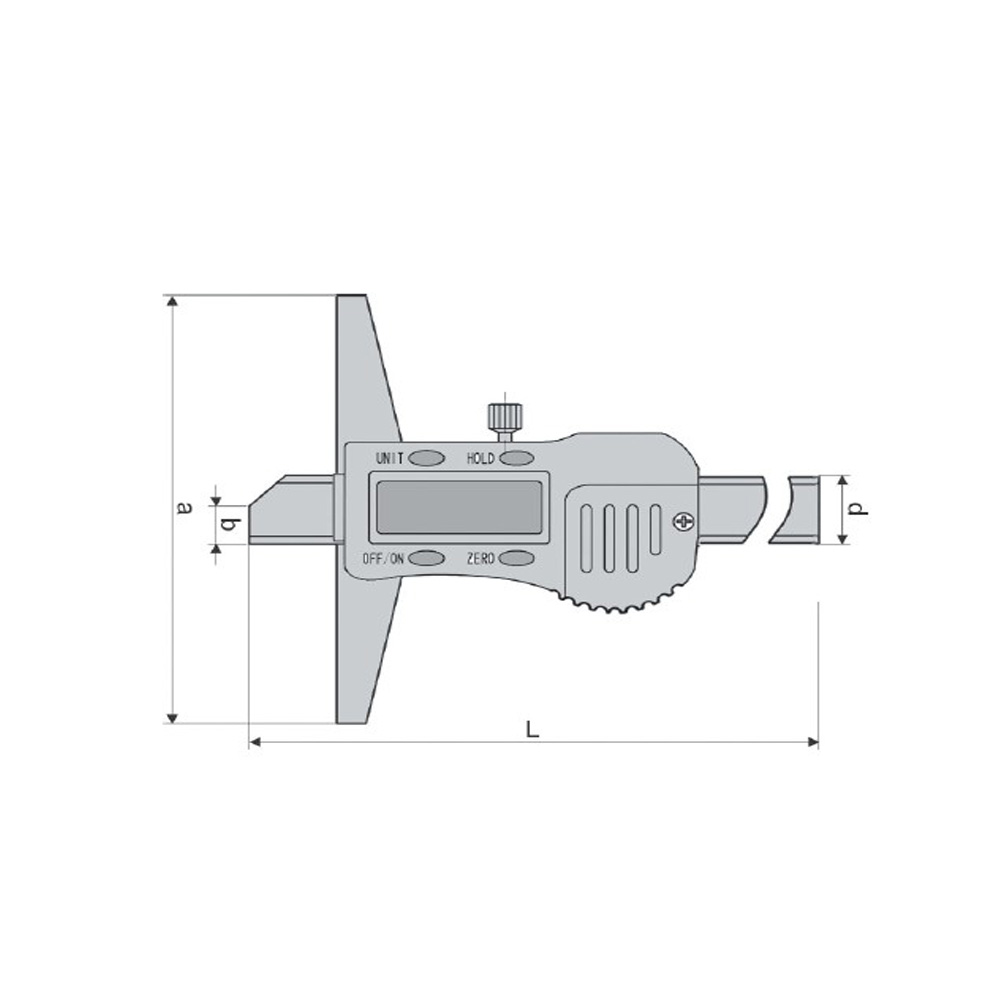

Drawing Digital depth caliper 1000 x 250 mm DIN 862

€46.12*

% €51.24* (9.99% saved)

€54.88 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 218.025.N

Customs tariff number 9017 3000

European Article Number 4054469160085

Weight 0,55 kg

Stock: 49

Related links:

Request Item

Product information "Digital depth caliper 0 - 200 mm DIN 862 3V"

Digital depth caliper 0 - 200 mm with metal casing

- made of stainless steel, hardened
- reading 0,01 mm or 0,0005"
- accuracy DIN 862
- electronic with 3 V system
- with metal casing
- with on/off, zero, unit and hold button
- with RS232C data output (RB5)
- base 100 mm
- in case/box

Range 0 - 200 mm

Accuracy:	DIN 862
Base:	100 mm
Data output:	RB 5
Range:	0 - 200 mm
Reading:	0,01 mm
Type:	digital, made of stainless steel, hardened, with metal casing

Technical Data

Messbereich mm Range mm	Brückenlänge a mm Base a mm	b mm	d mm
200	100	6	16

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.

Accessories

Connection cable for measuring devices with RB 5 data output about 100 cm

Connection cable for devices with RB 5 data output - length about 100 cm- connection cable RB 5 / RB 5 for connecting the measuring device to the USB interface no. 220.250.2

€11.94*

Stock: 5

Certification for depth caliper until 200 mm range

Certification for depth caliper until 200 mm - for analog and digital depth caliper untill range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard

€13.10*

Stock: -14
