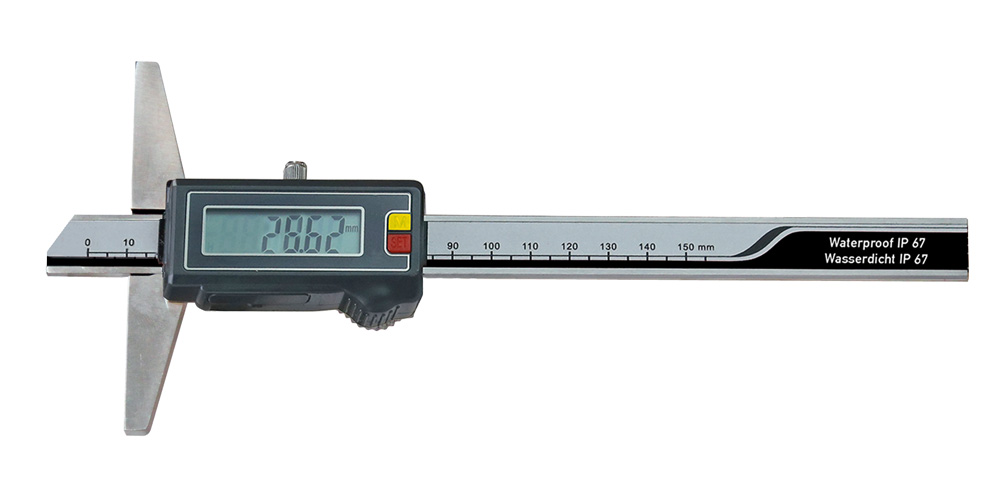

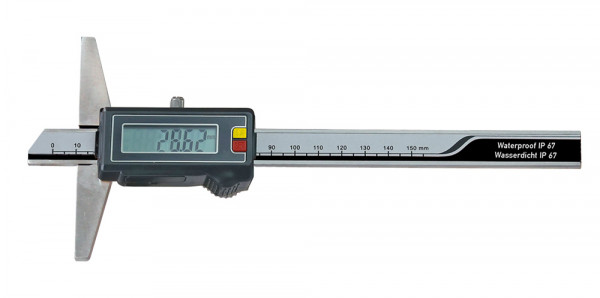

Digital depth caliper 0 - 200 mm IP 67 protection
€92.40*
Available, delivery time: 1-3 workdays
Product information "Digital depth caliper 0 - 200 mm IP 67 protection"
Digital depth caliper 0 - 200 mm IP 67 DIN 862
- IP 67 protection, water and dust proof
- made of stainless steel, hardened
- accuracy DIN 862
- with mode and set button
- reading 0,01 mm or 0,0005'', switchable, auto power off
- in case/box
Range: 0 - 200 mm
| Accuracy: | DIN 862 |
|---|---|
| Base: | 100 mm |
| Calibriation certificate: | without (optional as accessory) |
| Protection class: | IP 67 |
| Range: | 0 - 200 mm |
| Reading: | 0,01 mm |
| Type: | digital |

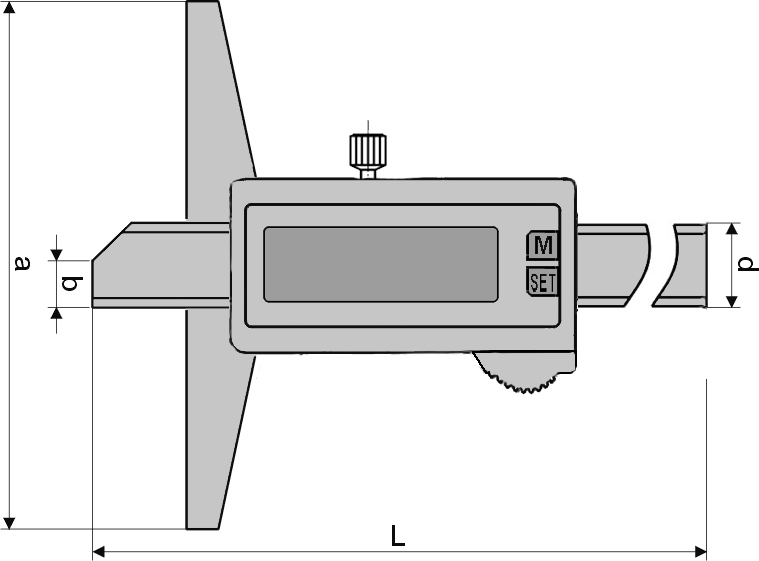

Technical Data
| Messbereich mm Range mm |
Brückenlänge a mm Base a mm |
b mm |
d mm |
| 0 - 200 | 100 | 6 | 14 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for depth caliper until 200 mm - for analog and digital depth caliper untill range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Extension base 420 mm - length 420 mm - suitable for digital depth caliper until 300 mm
