Depth vernier caliper 200 x 100 mm with double hook DIN 862
€62.40*
Available, delivery time: 1-3 workdays
Product information "Depth vernier caliper 200 x 100 mm with double hook DIN 862"
Depth vernier caliper 200 x 100 mm with double hook
- Nonius 1/50, with double hook
- measuring rod convertable
- made of stainless steel
- scale and nonius satin chrome finished
- accuracy DIN 862
- base 100 mm
- in case/box
Range 200 mm
| Accuracy: | DIN 862 |
|---|---|
| Base: | 100 mm |
| Nonius: | 1/50 |
| Range: | 0 - 200 mm |
| Type: | analogue, made of stainless steel, measuring rod convertable, with double hook |

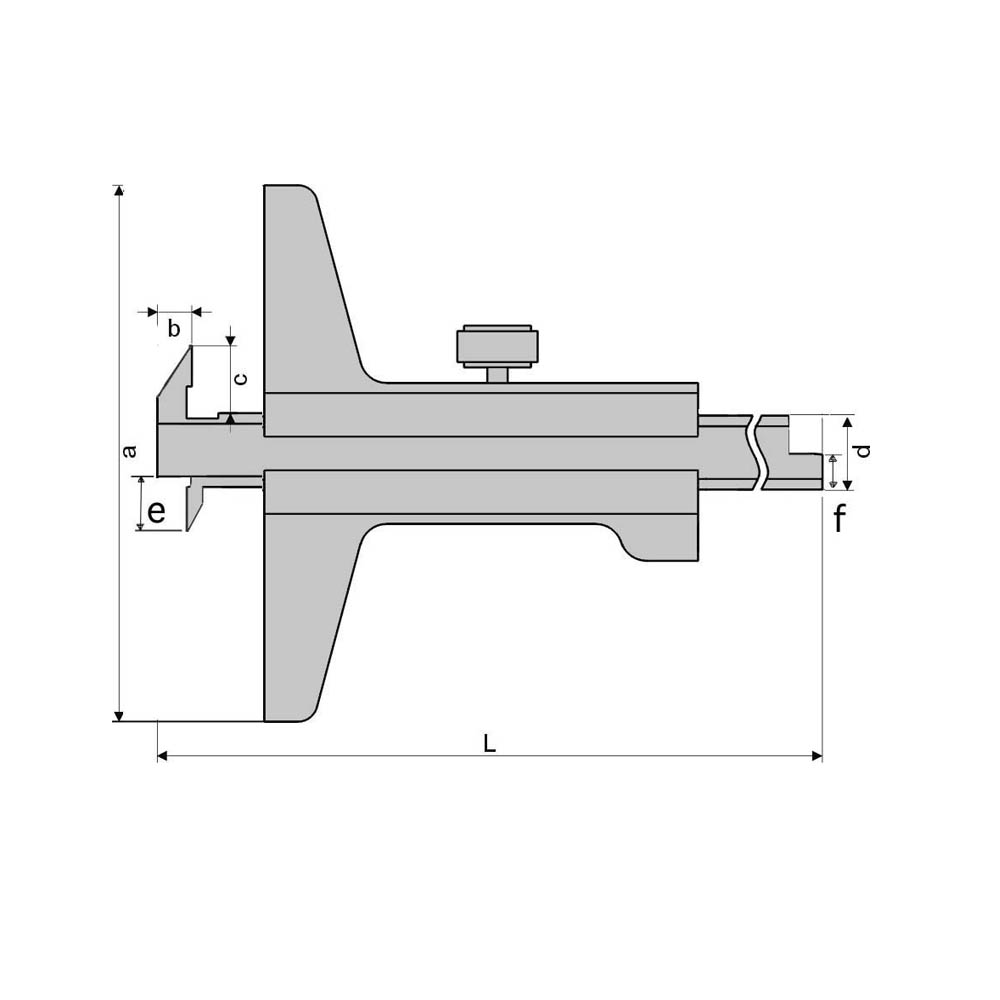

Technical Data
| Messbereich mm Range mm |
Brückenlänge a mm Base a mm |
b mm | c mm | d mm | e mm | f mm |
| 200 | 100 | 5,2 | 4,8 | 10 | 5,8 | 6,3 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
