Digital depth caliper 500 x 160 mm with changeable measuring points
€414.00*
Available, delivery time: 1-3 workdays
Product information "Digital depth caliper 500 x 160 mm with changeable measuring points"
Digital depth caliper 500 x 160 mm
- with changeable measuring points, as hook, double hook, needle point and measuring disc
- base 160 mm, with fix device for moveable measuring base (accessorie)
- stainless steel, hardened and grounded
- display with on/off/pre, tol. hold, dir, zero/abs and mm/inch button
- reading 0,01 mm / 0,0005"
- accuracy DIN 862
- with data output RB5
- in case/box
Range 0 - 500 mm
| Accuracy: | DIN 862 |
|---|---|
| Base: | 160 mm |
| Calibriation certificate: | without (optional as accessory) |
| Data output: | RB 4 |
| Range: | 0 - 500 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel |

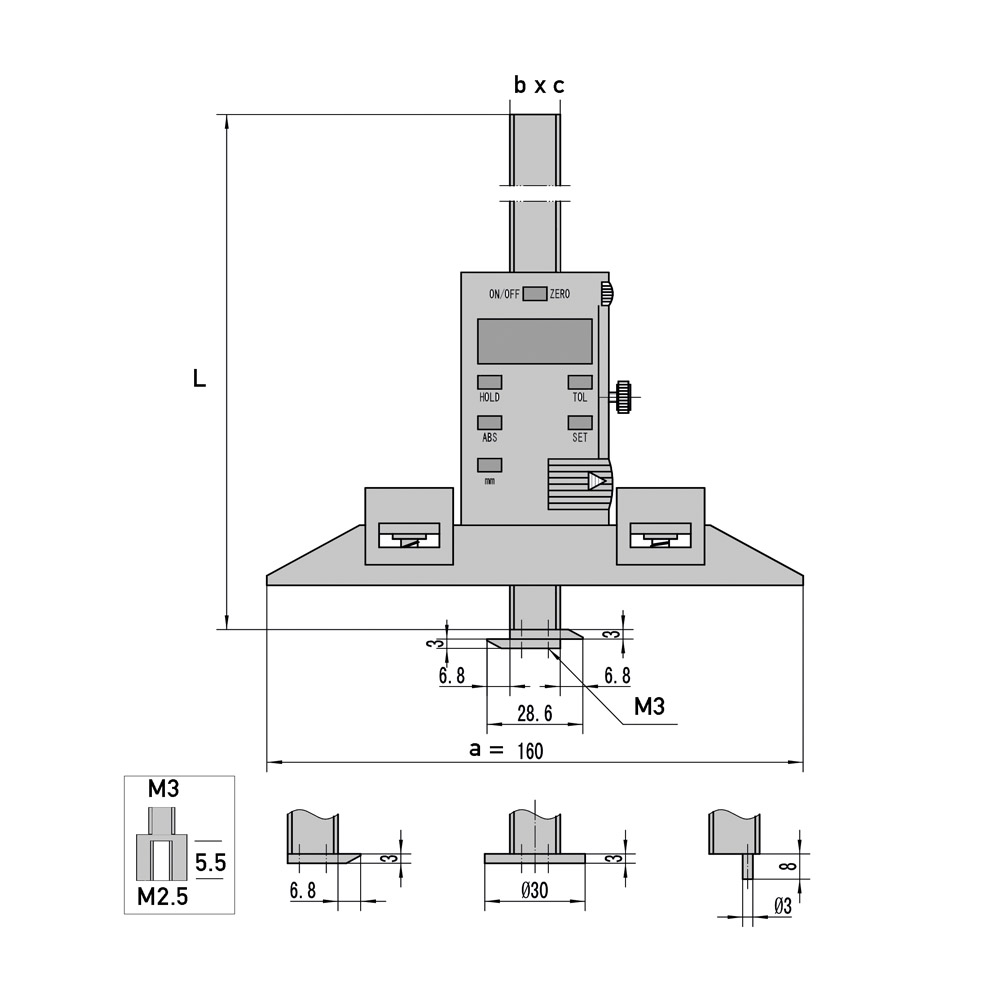

Technical Data
| Messbereich mm Range mm |
a mm |
b mm |
c mm |
| 0 - 500 | 160 | 15 | 6 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
