Digital depth caliper 100 mm for inside groove measurement
Product number:
218.040
Customs tariff number
9017 3000
European Article Number
4054469146188
Weight
0,6 kg
Stock:
0
Related links:
Request Item
Product information "Digital depth caliper 100 mm for inside groove measurement"

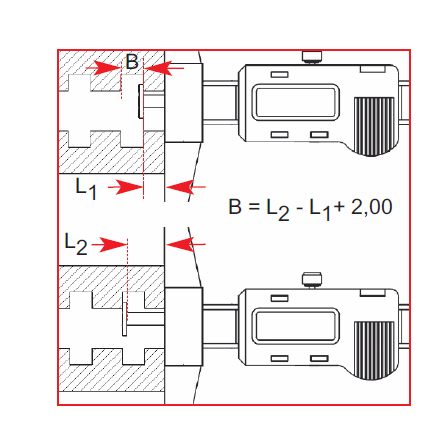

Digital depth caliper for inside groove measurement

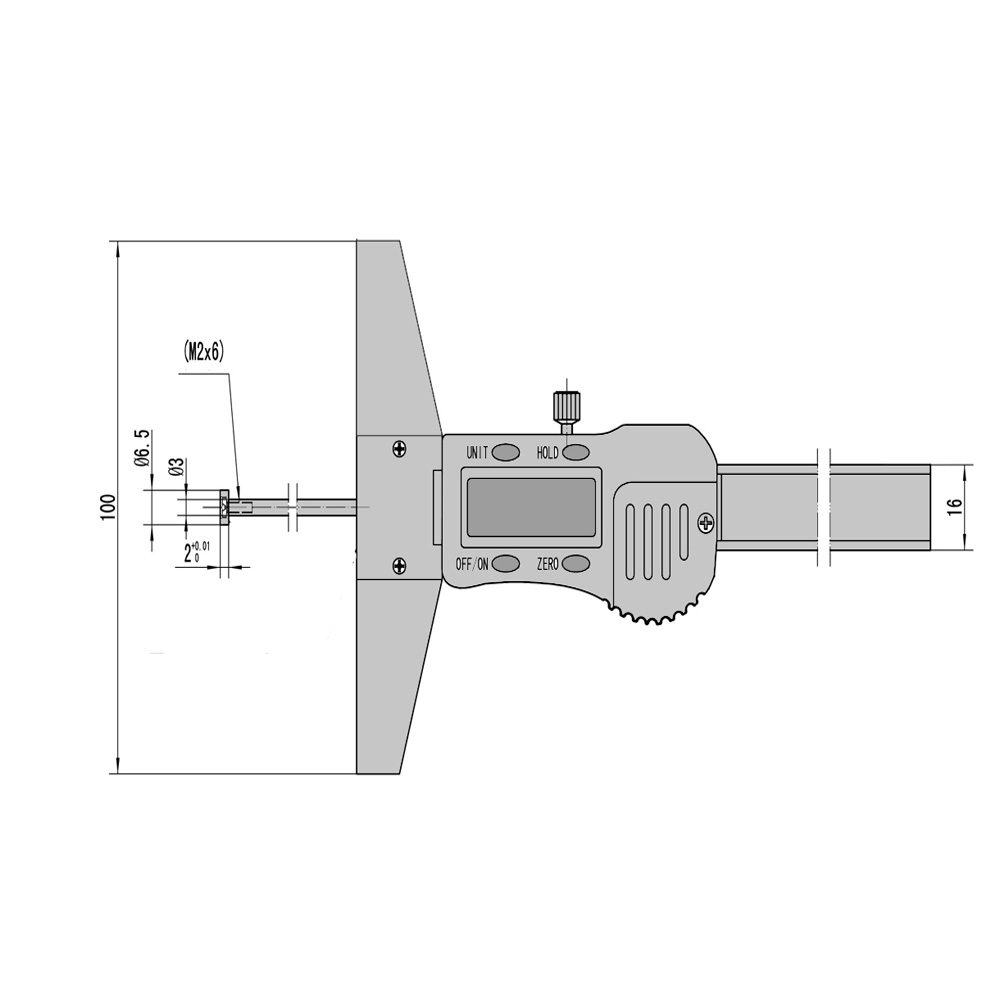

- with measuring disk Ø 6,5 x 2 mm
- made of stainless steel, hardened
- electronic with 3 V system
- metal casing
- reading 0,01 mm or 0,0005"
- with on/off, zero, unit and hold button
- with RS232C data output (RB5)
- in case/box
Range 100 mm
| Accuracy: | 0,10 mm |
|---|---|
| Base: | 100 mm |
| Data output: | RB 5 |
| Range: | 0 - 100 mm |
| Reading: | 0,01 mm |
| Type: | digital, for inside groove measurement, made of stainless steel, hardened, with metal casing |
Technical Data
| Messbereich mm Range mm |
Brückenlänge a mm Base a mm |
Genauigkeit mm Accuracy mm |
| 100 | 100 | 0,1 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
