Depth vernier caliper 80 x 50 mm with needle point Ø 1,6 DIN 862
€30.06*
Available, delivery time: 1-3 workdays
Product information "Depth vernier caliper 80 x 50 mm with needle point Ø 1,6 DIN 862 "
Depth vernier caliper 80 x 50 mm with needle point Ø 1,6 mm
- measuring rod convertable
- made of stainless steel
- scale and nonius satin chrome finished
- nonius 1/20, accuracy DIN 862
- base 50 mm
- in case/box
Range 80 mm
| Accuracy: | DIN 862 |
|---|---|
| Base: | 50 mm |
| Nonius: | 1/20 |
| Range: | 0 - 80 mm |
| Type: | analogue, made of stainless steel, measuring rod convertable, with needle point |

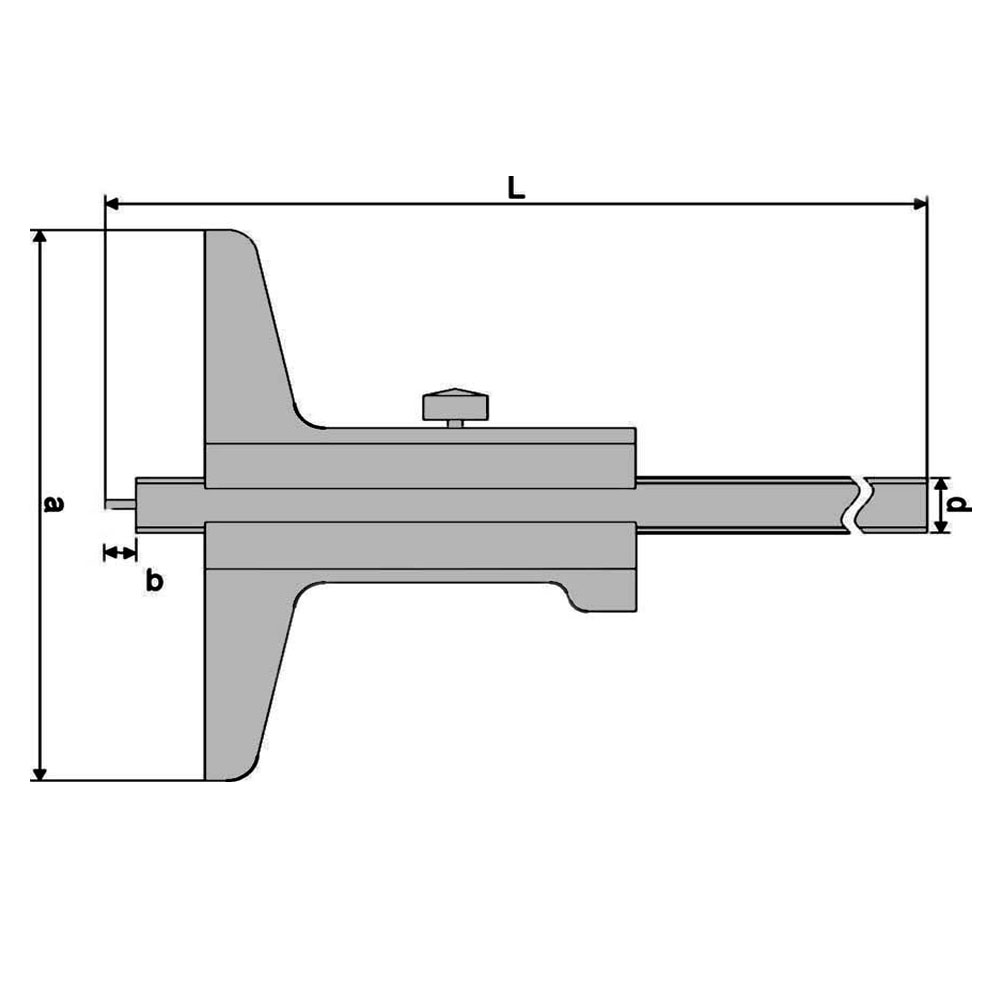

Technical Data
| Messbereich mm Range mm |
Brückenlänge a mm Base a mm |
b mm | d mm |
| 80 | 50 | 5 | 10,0 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
