Depth micrometer 0 - 300 mm analogue with flat measuring face
€177.00*
€210.63 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
309.072
Customs tariff number
9017 3000
European Article Number
4054469117768
Weight
1,1 kg
Stock:
19
Related links:
Request Item
Product information "Depth micrometer 0 - 300 mm analogue with flat measuring face"

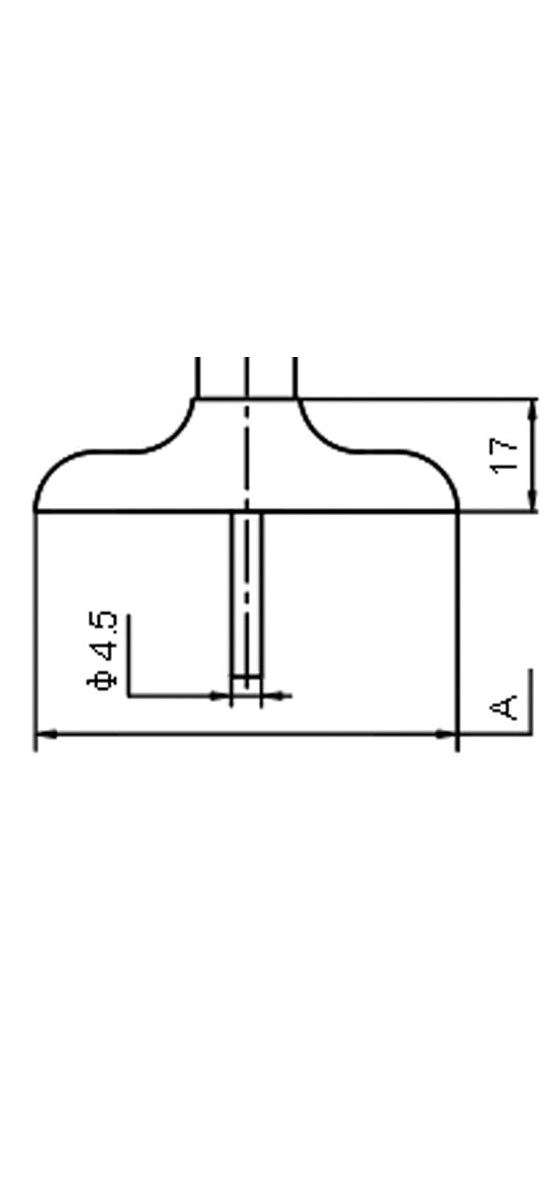

Depth micrometer 0 - 300 mm with flat measuring face
- analogue, with flat measuring face
- base 100 x 16 mm
- with ratchet
- measuring inserts ø 4,5 mm
- inserts simply exchangeable
- reading 0,01 mm
- in case/box
Range: 0 - 300 mm
Accuracy: 0,007 mm
Measuring robs: 12
Technical Data
| Messbereich mm Range mm |
Messbrücke (LxD) mm Base (LxD) mm |
Messstange Meas. robs |
Genauigkeit mm Accuracy mm |
| 0 - 300 | 100 x 16 | 12 | 0,007 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Skip product gallery
Accessories
Certification for depth micrometer 0 - 300 mm
€152.70*
Certification depth micrometer 0 - 300 mm
- for analog and digital depth micrometer range 0 - 300 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Stock: 0
