Dial caliper 0 - 150 mm DIN 862 TOP
€35.10*
Available, delivery time: 1-3 workdays
Product information "Dial caliper 0 - 150 mm DIN 862 TOP"
Dial caliper 0 - 150 mm dial Ø 38 mm
- made of stainless steel, hardened
- usable to 4- way measurement
- backside with screw table
- in case/box
- Reading 0,01 mm
Range 0 - 150 mm
| 1 point round: | 1 mm |
|---|---|
| Accuracy: | DIN 862 |
| Dial Ø: | 38 mm |
| Range: | 0 - 150 mm |
| Reading: | 0,01 mm |
| Type: | analogue, made of stainless steel, hardened |

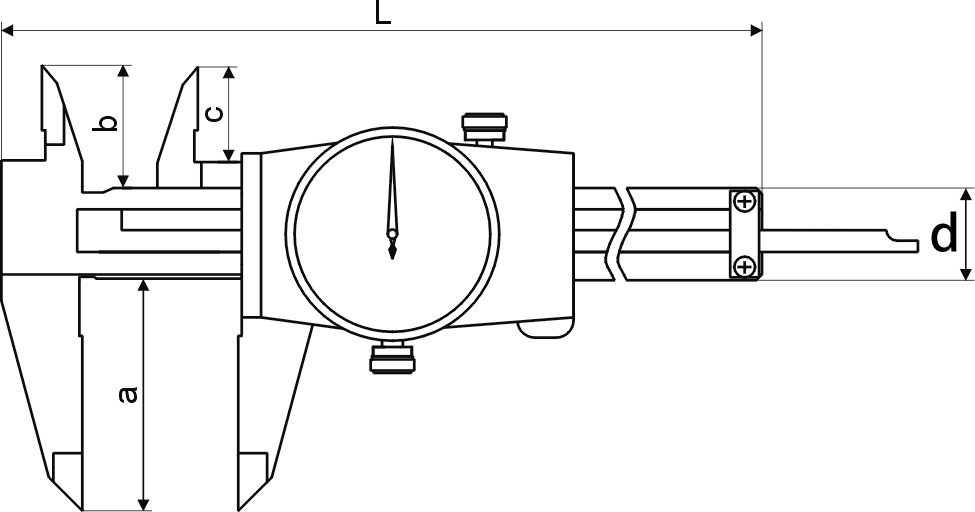

Technical Data
| Messbereich mm Range mm |
Ablesung mm Reading mm |
1 Zeigerdrehung mm 1 Point round mm |
a mm | b mm | d mm | Uhr Ø mm Dial Ø mm |
| 150 | 0,01 | 1 | 40 | 20 | 16 | 38 |
