Dial caliper 0 - 200 mm reading 0,01 DIN 862 TOP
€45.84*
Available, delivery time: 1-3 workdays
Product information "Dial caliper 0 - 200 mm reading 0,01 DIN 862 TOP"
Dial caliper 0 - 200 mm reading 0,01
- made of stainless steel, hardened
- usable to 4- way measurement
- backside with screw table
- in case/box
- Reading 0,01 mm
Range 0 - 200 mm
| 1 point round: | 1 mm |
|---|---|
| Accuracy: | DIN 862 |
| Dial Ø: | 38 mm |
| Range: | 0 - 200 mm |
| Reading: | 0,01 mm |
| Type: | analogue, made of stainless steel, hardened |

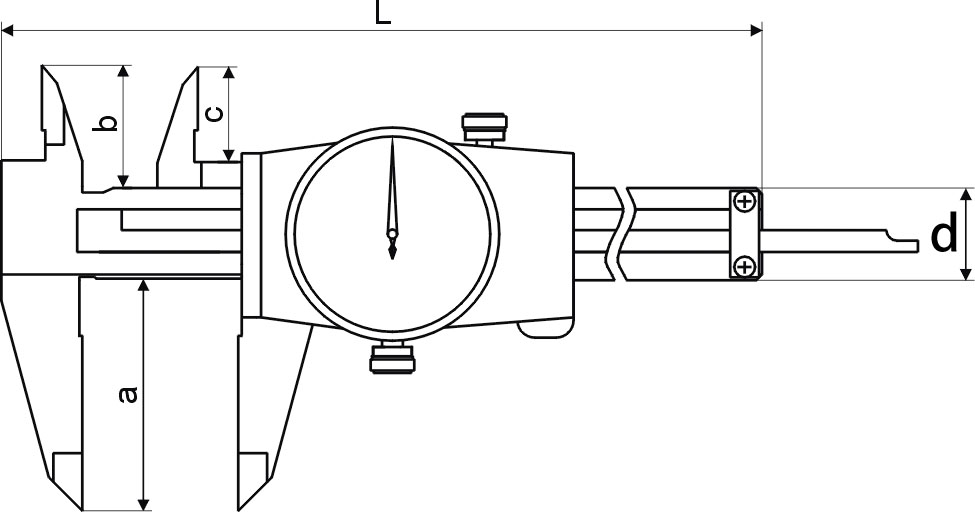

Technical Data
| Messbereich mm Range mm |
Ablesung mm Reading mm |
1 Zeigerdrehung mm 1 Point round mm |
a mm | b mm | d mm | Uhr Ø mm Dial Ø mm |
| 200 | 0,01 | 1 | 50 | 24 | 16 | 38 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
DAkkS certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618
