Dial caliper 300 x 0,01 mm DIN 862 TOP
€86.40*
Available, delivery time: 1-3 workdays
Product information "Dial caliper 300 x 0,01 mm DIN 862 TOP"
Dial caliper 300 x 0,01 mm TOP dial Ø 45 mm
- made of stainless steel, hardened
- usable to 4- way measurement
- backside with screw table
- in case/box
- Reading 0,01 mm
Range 0 - 300 mm
| 1 point round: | 1 mm |
|---|---|
| Accuracy: | DIN 862 |
| Dial Ø: | 45 mm |
| Range: | 0 - 300 mm |
| Reading: | 0,01 mm |
| Type: | analogue, made of stainless steel, hardened |

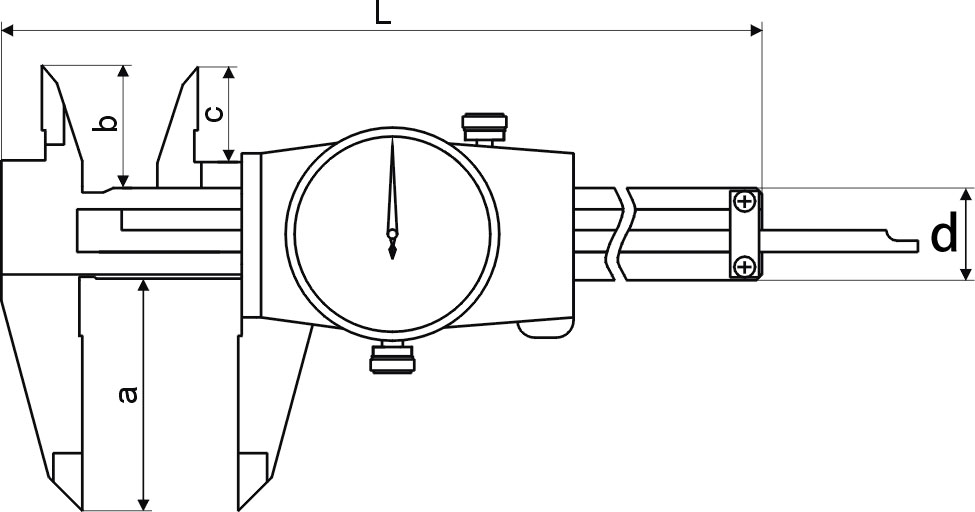

Technical Data
| Messbereich mm Range mm |
Ablesung mm Reading mm |
1 Zeigerdrehung mm 1 Point round mm |
a mm | b mm | d mm | Uhr Ø mm Dial Ø mm |
| 300 | 0,01 | 1 | 60 | 25 | 17 | 45 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
