Digital pocket caliper 0-200 mm with set/preset button DIN 862

Messwelt

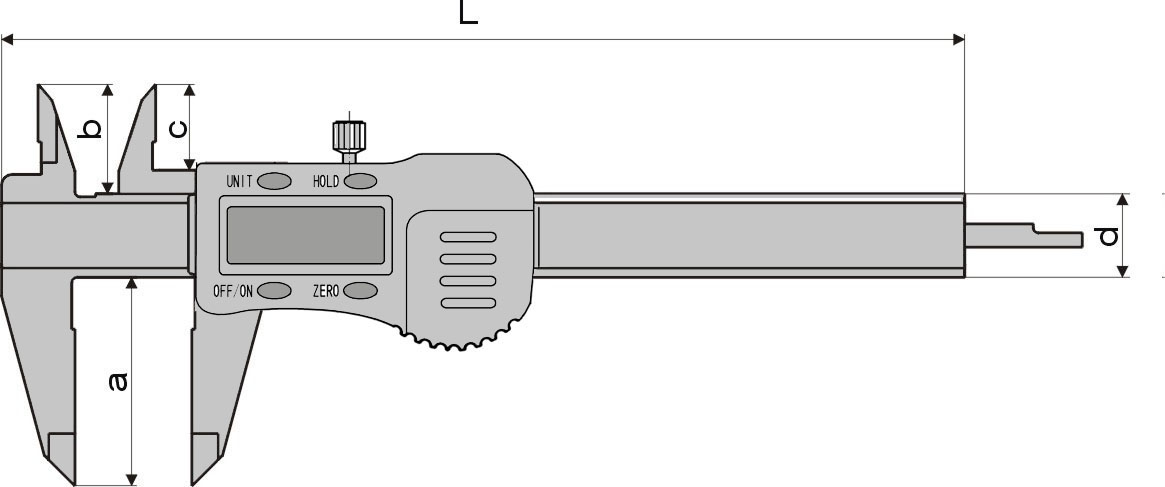

Technical drawing Digital pocket caliper 0 - 150 mm DIN 862

€63.60*

€75.68 incl. Vat.

Prices plus VAT plus shipping costs

Available, delivery time: 1-3 workdays

Product number: 216.126.P

Customs tariff number 9017 3000

European Article Number 4054469167893

Weight 0,52 kg

Stock: 89

Related links:

Request Item

Product information "Digital pocket caliper 0-200 mm with set/preset button DIN 862"

Digital pocket caliper 0-200 mm with set/preset button

- DIN 862, measuring system with 3 V
- electronic in metal casing
- scale with glass rail for precision sampling
- made of stainless steel, hardened
- usable to 4- way measurement
- with ON/OFF, SET/PRESET button
- data output (RB 5)
- usable with or without roll (fitting included)
- in case/box

Range 0 - 200 mm

Accuracy:	0,03 mm
Data output:	RB 5
Range:	0 - 200 mm
Type:	Measuring system with 3 V, digital, made of stainless steel, hardened, with metal casing

Technical Data

Messbereich mm Range mm	Genauigkeit mm Accuracy mm	a mm	b mm	d mm
200	0,03	50	24	16

Product Safety Information:

Suitable only for technically skilled users familiar with the product and for craftsmen.
Intended solely for the designated purpose.
Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
