Digital pocket caliper antimagnetic 0-200 mm DIN 862
€102.60
Available, delivery time: 1-3 workdays
Product information "Digital pocket caliper antimagnetic 0-200 mm DIN 862"
Digital pocket caliper antimagnetic 0-200 mm
- made of stainless non magnetic steel
- with round depth bar Ø 3 mm
- 4- way measurement
- measuring system with 3 V
- with ON/OFF, ZERO,UNIT and HOLD buttons
(with HOLD button the measuring value can be memorized for later analysis)
- data output RB5
- accuracy 0,03 mm
- in case/box
Range 0 - 200 mm
| Accuracy: | 0,03 mm |
|---|---|
| Data output: | RB 5 |
| Range: | 0 - 200 mm |
| Type: | antimagnetic, digital, made of stainless steel, with round depth gauge |

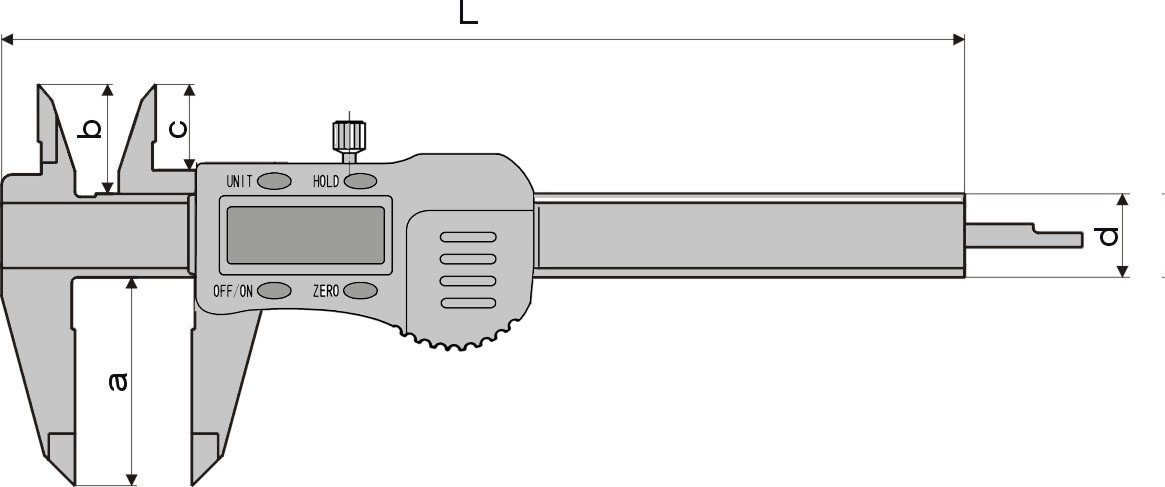

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |

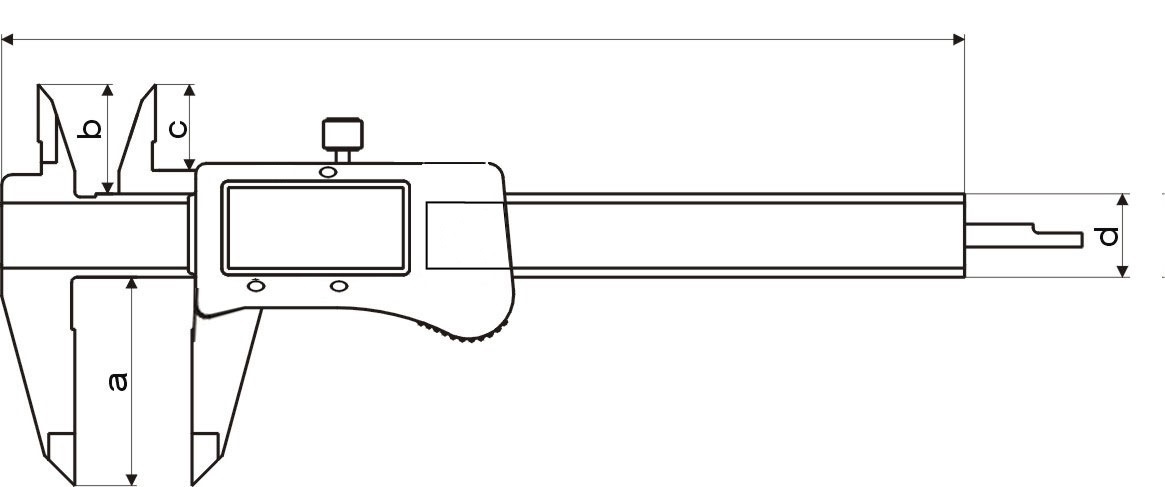

a mm | b mm | d mm |
| 200 | 0,03 | 50 | 24 | 16 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Connection cable for devices with RB 5 data output - length about 100 cm- connection cable RB 5 / RB 5 for connecting the measuring device to the USB interface no. 220.250.2
DAkkS certification for caliper until 200 mm - for analog and digital caliper until range 200 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618
