Digital pocket caliper IP 67 0 - 200 mm DIN 862

Product information "Digital pocket caliper IP 67 0 - 200 mm DIN 862"

Digital pocket caliper IP 67 0 - 200 mm

- IP 67 protection, water and dust proof
- DIN 862, made of stainless steel, hardened
- 4-way measurement
- with INC-, MODE- HOLD- and ON/0-button
- reading 0,01 mm or 0,0005''
- in case/box

Accuracy: 0,03 mm
Protection class: IP 67
Range: 0 - 200 mm
Reading: 0,01 mm
Type: digital, made of stainless steel, hardened

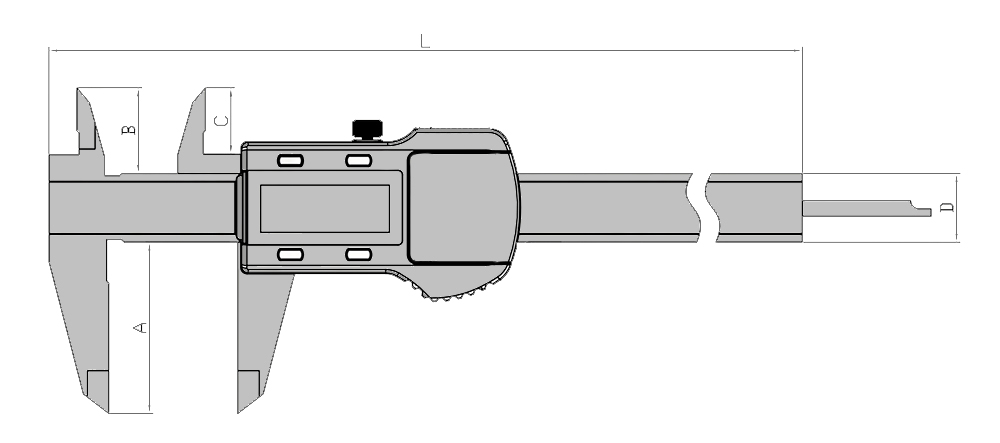

Technical Data

Messbereich mm
Range mm
Genauigkeit mm
Accuracy mm
a mm b mm d mm
200 0,03 50 19,5 16

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
