Digital twist drill caliper 130° lead angle
€132.60
Available, delivery time: 1-3 workdays
Product information "Digital twist drill caliper 130° lead angle"
Digital twist drill caliper 130°
- for precision measuring of knife length of twist drill with lead angle 130°
- measuring system with 3 V
- electronic in metal casing
- made of stainless steel, hardened
- with on/off, zero, unit and hold button
(with hold button the measuring value can be memorized for later reading)
- data output RB 5
- in case/box

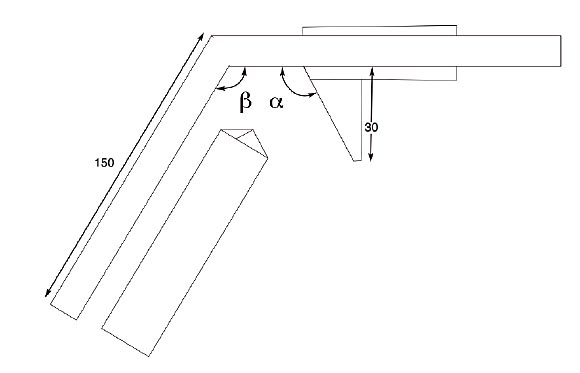

Lead angle α: 130° / β: 115°
Range 0 - 50 mm
Technical Data
| Messbereich mm Range mm |
Einschnittwinkel ° lead angle ° |
α | ß | Genauigkeit mm Accuracy mm |
a mm | b mm | d mm |
| 50 | 130° | 130° | 115° | 0,05 | 30 | 21 | 16 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
