Digital scale unit 150 mm vertical DIN 862
€55.74*
Available, delivery time: 1-3 workdays
Product information "Digital scale unit 150 mm vertical DIN 862"

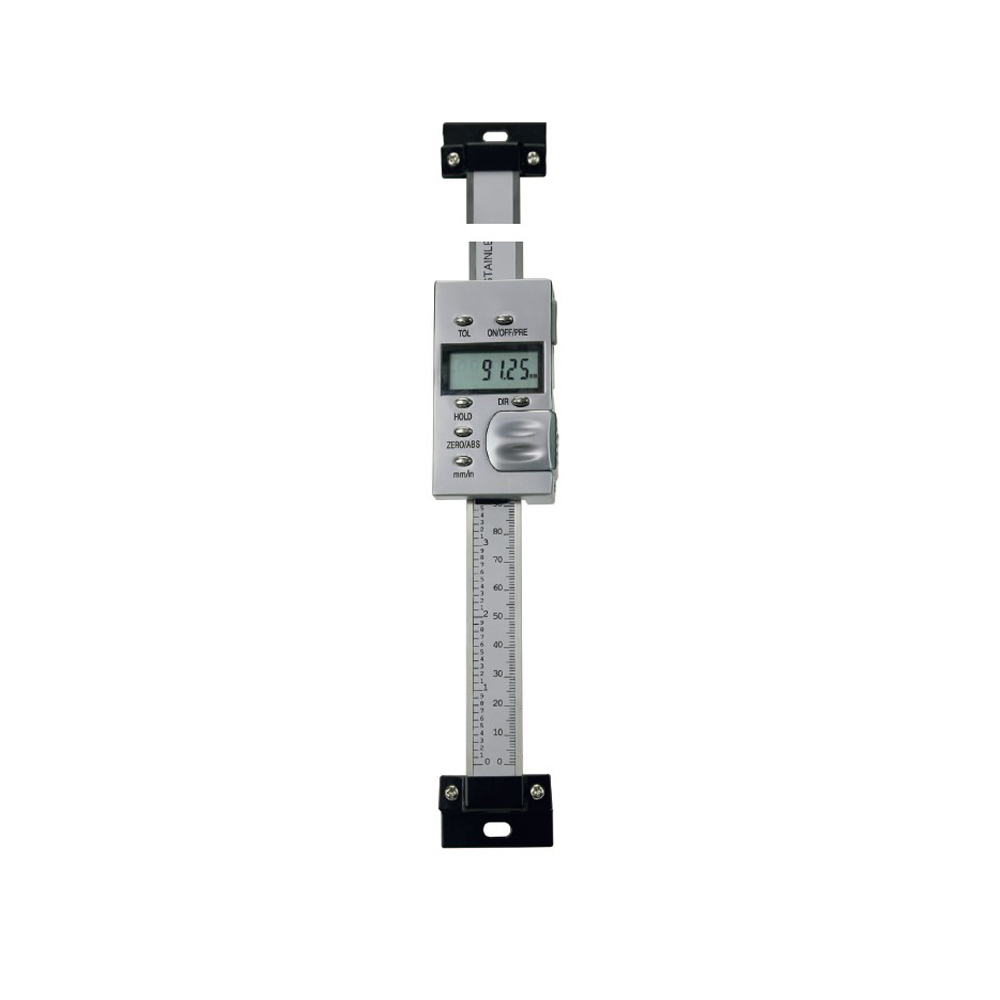

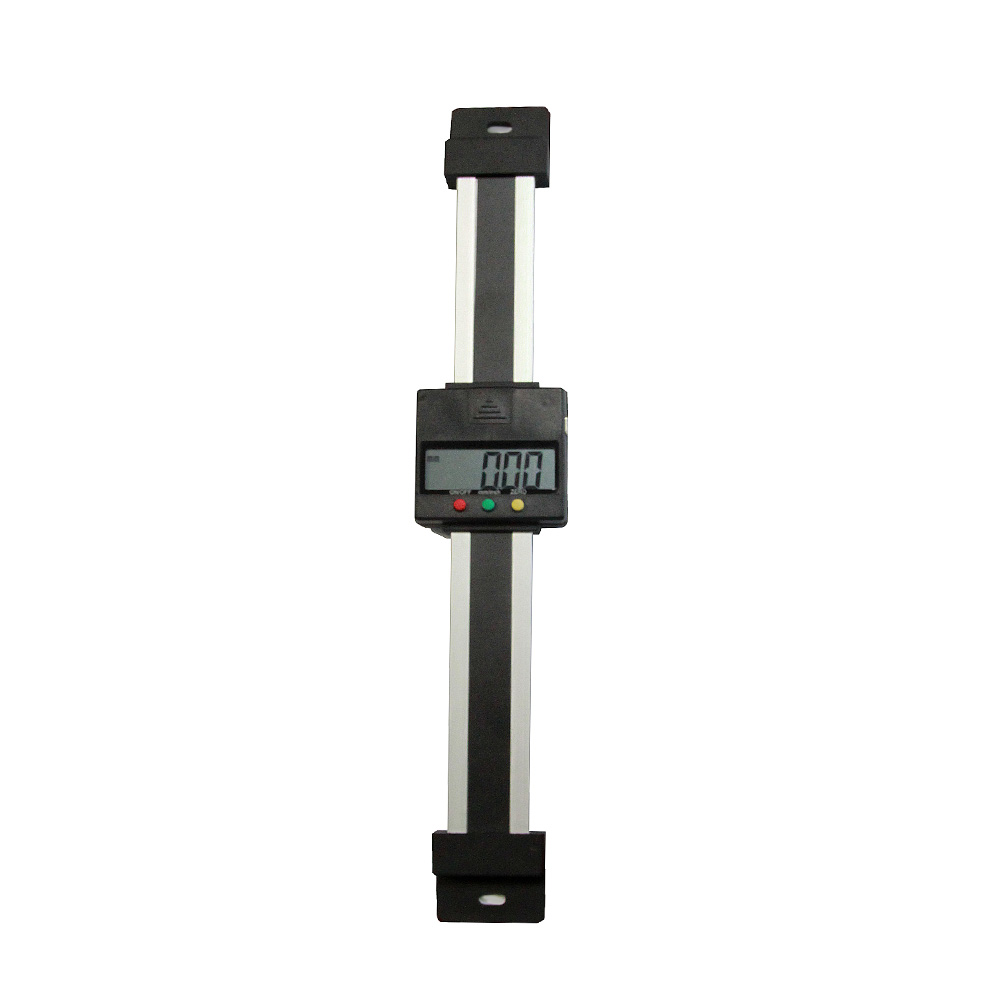

Digital scale unit 150 mm vertical
- capacitive measuring system
- reading 0,01 mm or 0,0005"
- with RS232C data output RB 5
- with on/off/pre, mm/inch, zero/ABS, tol, dir and hold button
- accuracy 0,03 mm
Range 0 - 150 mm
| Accuracy: | 0,03 mm |
|---|---|
| Data output: | RB 5 |
| Range: | 0 - 150 mm |
| Reading: | 0,01 mm |
| Type: | vertical |

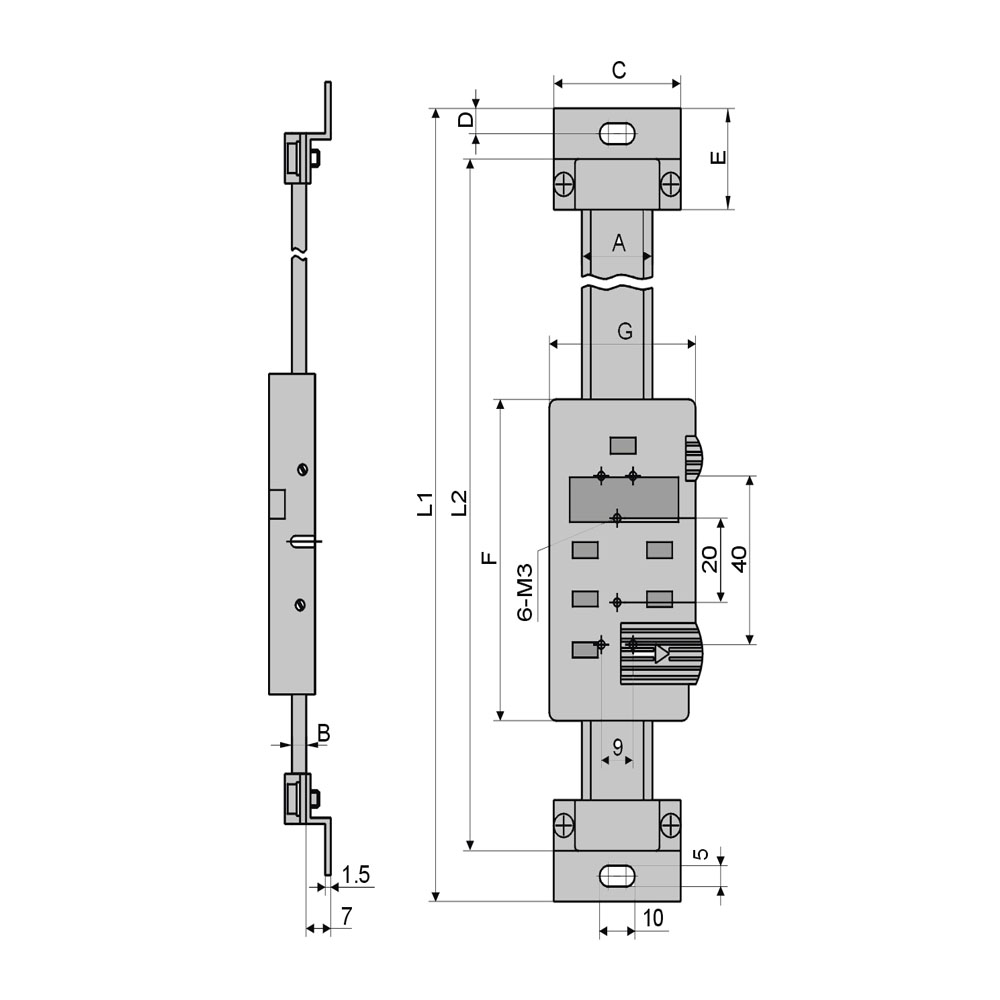

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
A mm | B mm | C mm | D mm | E mm | F mm | G mm | L1 mm | L2 mm |
| 150 | 0,03 | 20 | 4 | 40 | 6 | 24 | 80 | 45 | 298 | 275 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
