Digital universal caliper 0 - 500 mm range
€204.00
Delivery time upon request
Product information "Digital universal caliper 0 - 500 mm range"
Digital universal caliper 0 - 500 mm
- for inside, outside, wall thickness or hole distance measuring
- made of stainless steel, hardened
- measuring tips can be mounted on above or down side
- numerous measuring inserts (optional)
- with ON/OFF, mm/inch, ABS/INC and ZERO/PRESET button
- data output (RB 2)
- reading 0,01 mm
- accuracy 0,06 mm
- in box (for transport only!)
Range 0 - 500 mm
Images 3 - 5: application examples
Delivery: base caliper without measuring tips,
matching size tips please order separate!
| Accuracy: | 0,06 mm |
|---|---|
| Data output: | RB 2 |
| Range: | 0 - 500 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, Measuring system with 3 V |

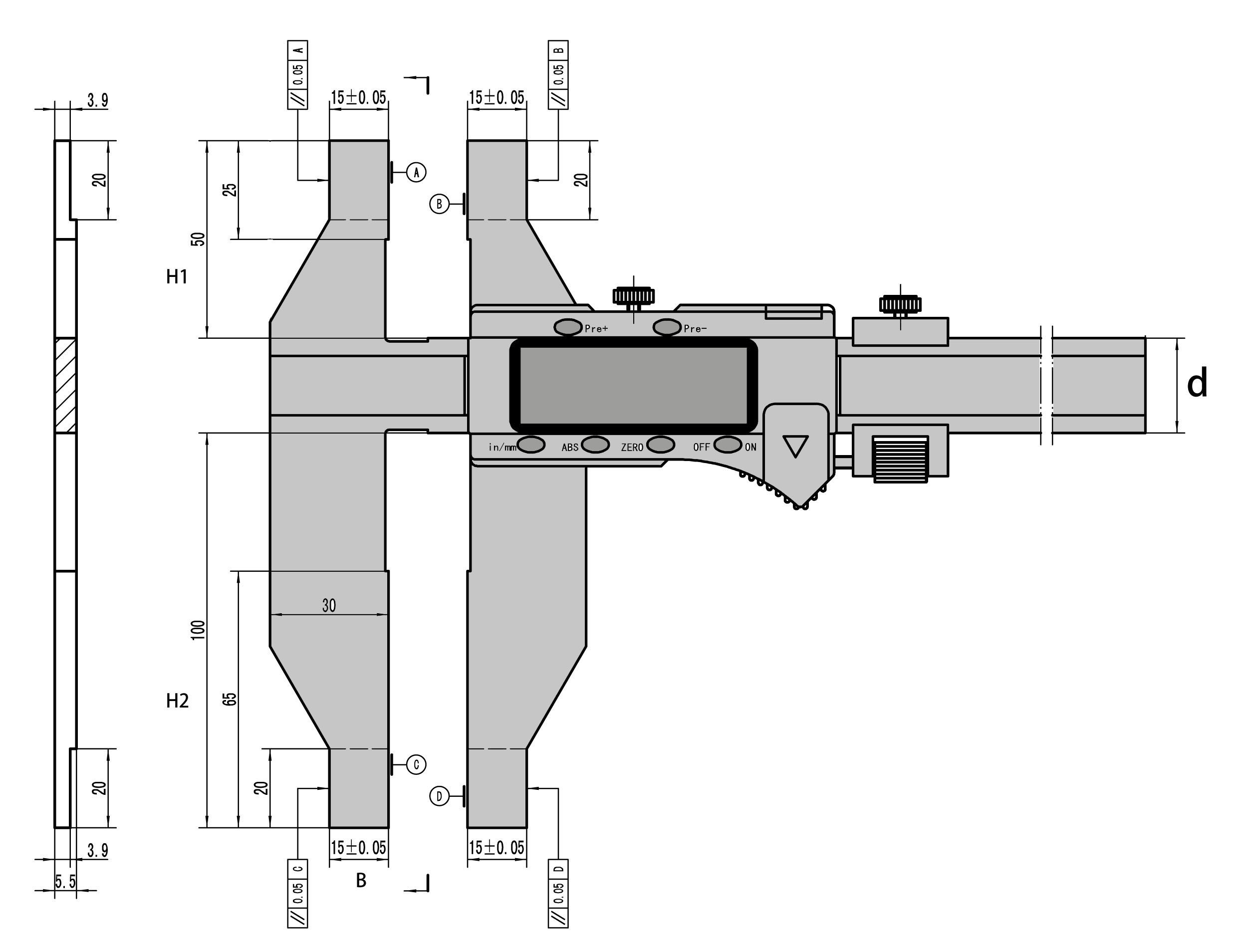

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
H1 mm | H2 mm | B mm | d mm |
| 0 - 500 | 0,06 | 50 | 100 | 15 | 24 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Measuring insert with needle point measuring faces L 5 x Ø 2 mm - for groove measurement- specially for digital universal caliper Art.-Nr. 240.201-240.204- made of stainless steel- delivery pairwise Range inside: 20 - XRange outside: 0 - X
Measuring insert with flat measuring faces 5 x 0,6 mm - with flat measuring faces for groove measurement- specially for digital universal caliper Art.-Nr. 240.201-240.204- made of stainless steel- delivery pairwisee Range inside: 15 - XRange outside: 1 - X
Measuring insert L = 60 mm for outside measuring - specially for digital universal caliper Art.-Nr. 240.201-240.204- made of stainless steel- delivery pairwise
Connection cable for devices with RB 2 data output - length about 40 cm- connection cable RB 5 / RB 2 for connecting the measuring device to the USB interface no. 220.250.2
Measuring insert L = 70 mm with round measuring pin Ø 5 - specially for digital universal caliper Art.-Nr. 240.201-240.204- made of stainless steel- delivery pairwise
Certification for caliper > 200 - 500 mm - for analog and digital caliper until range > 200 - 500 mm - the calibration will be done by an external calibration laboratory - certification rule VDI/VDE/DGQ 2618 or manufacture standard
Measuring insert for measuring tips with thread - specially for digital universal caliper Art.-Nr. 240.201-240.204- made of stainless steel- delivery pairwise- measuring tips see accessories for dial indicator Length 60 mm
