Digital universal caliper 300 mm range 3V
€101.40*
Delivery time upon request
Product information "Digital universal caliper 300 mm range 3V"
Digital universal caliper 0 - 300 mm
- for inside, outside, wall thickness or hole distance measuring
- made of stainless steel, hardened
- measuring tips can be mounted on above or down side
- numerous measuring inserts (optional)
- measuring system with 3 V
- metal casing
- with ON/OFF and SET/PRESET button
- data output (RB 5)
- reading 0,01 mm
- accuracy 0,05 mm

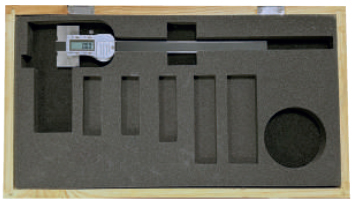

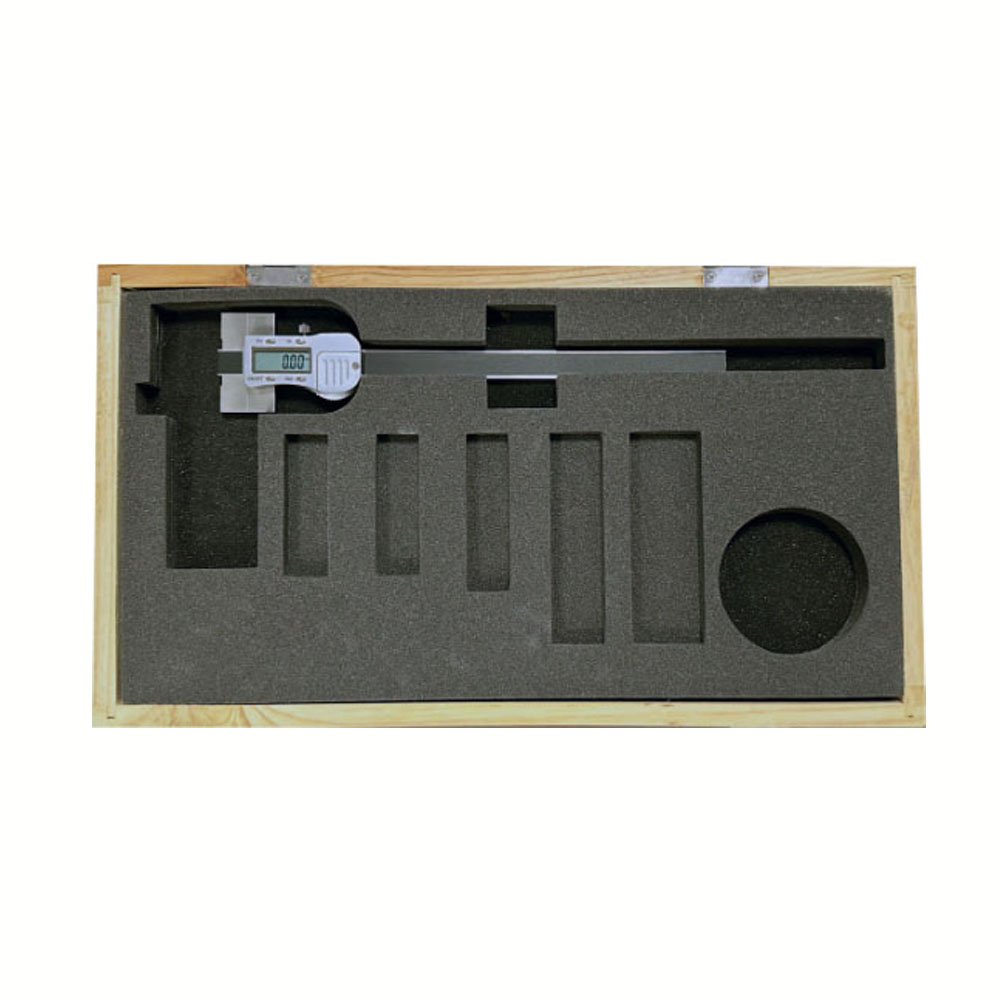

- with large wooden box with recesses for additional accessories
Range 0 - 300 mm

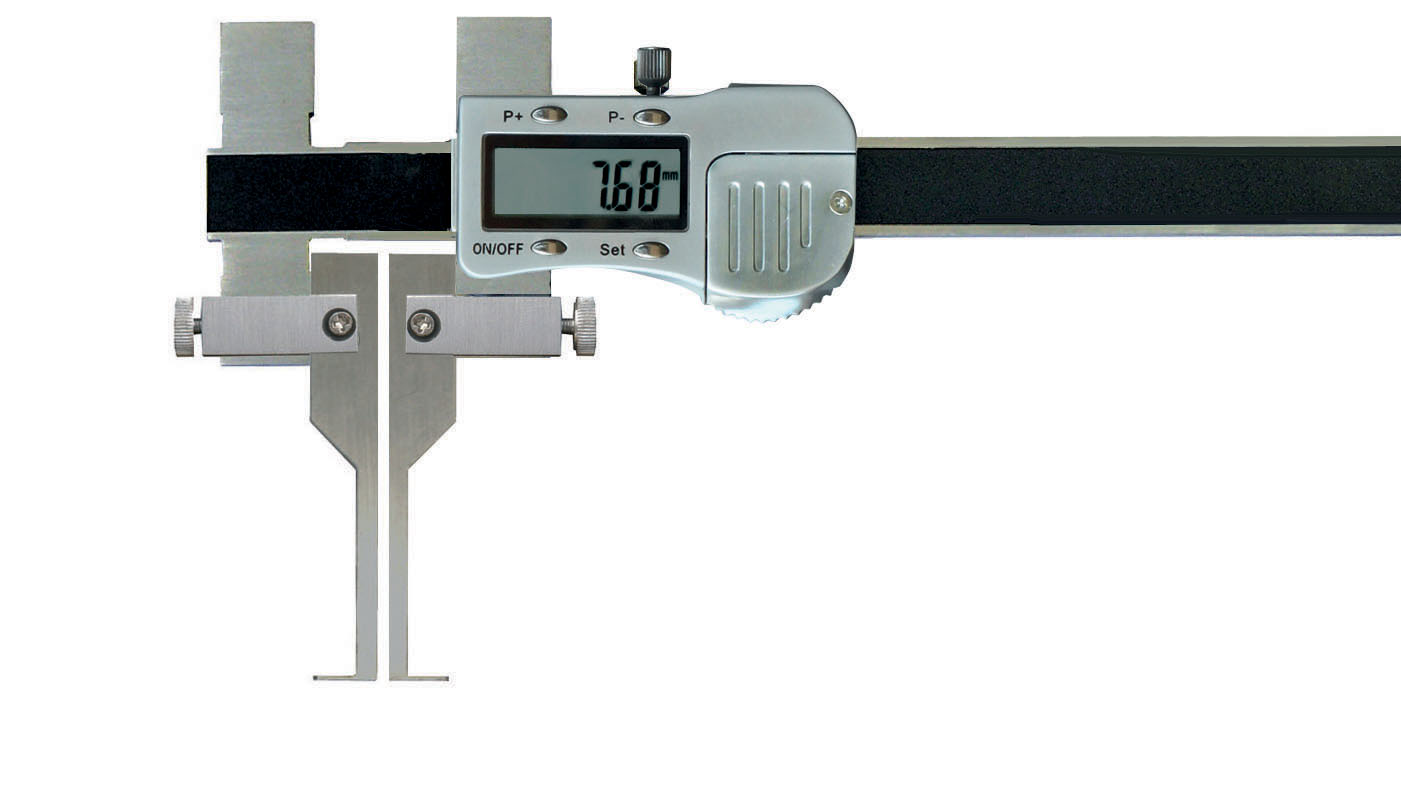

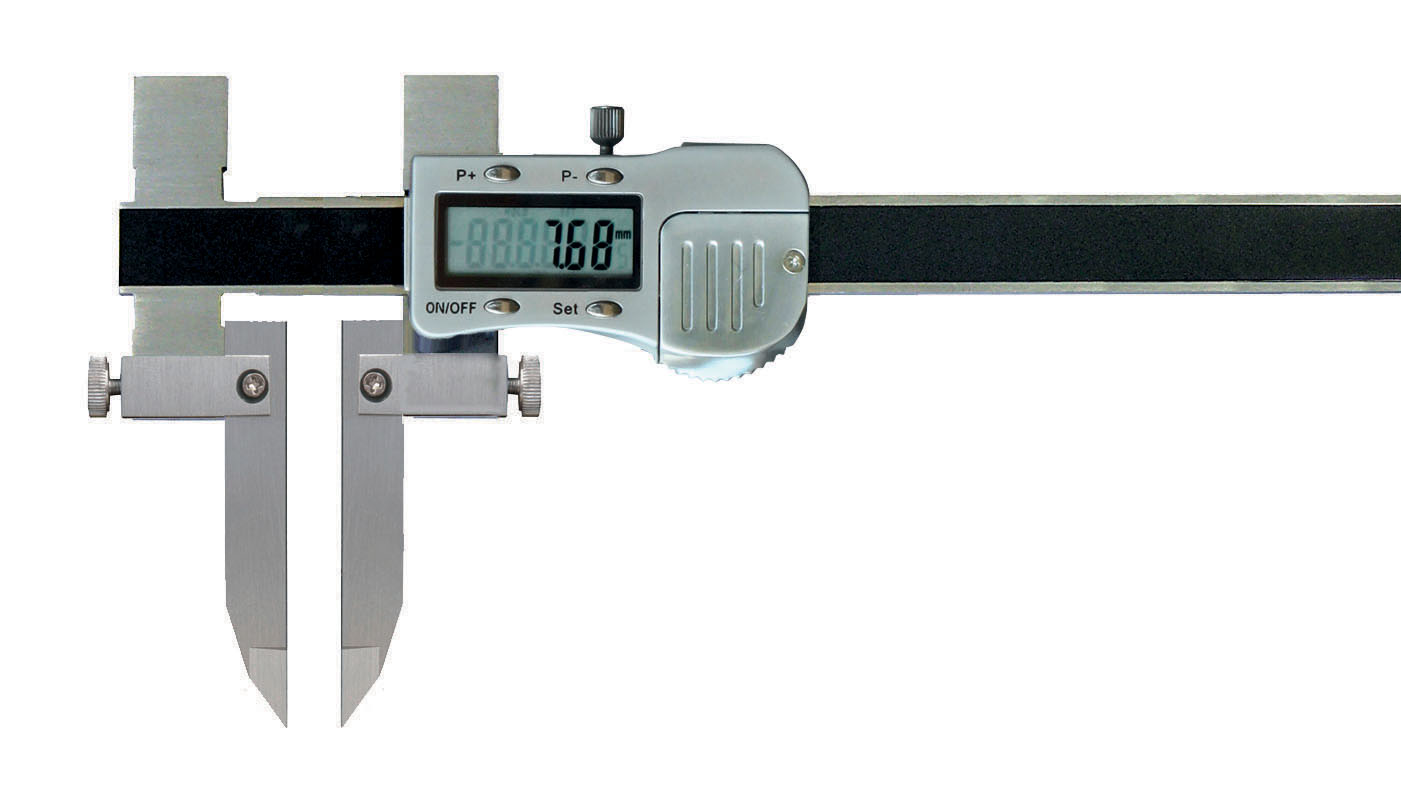

Images 4 - 6: application examples
Delivery: base caliper without measuring tips,
matching size tips please order separate!
| Accuracy: | 0,05 mm |
|---|---|
| Data output: | RB 5 |
| Range: | 0 - 300 mm |
| Reading: | 0,01 mm |
| Type: | digital, made of stainless steel, hardened, Measuring system with 3 V, with metal casing |

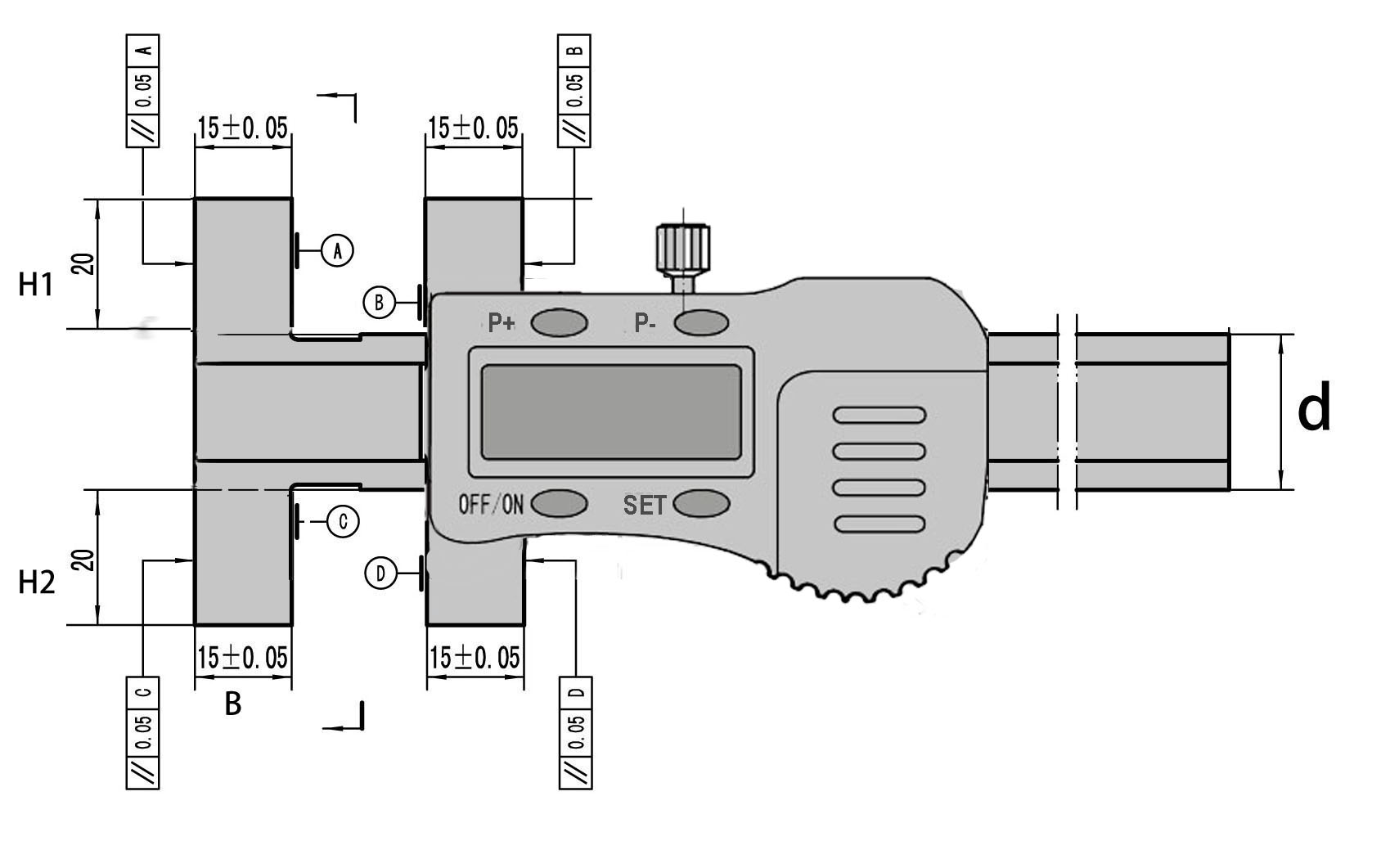

Technical Data
| Messbereich mm Range mm |
Genauigkeit mm Accuracy mm |
H1 mm | H2 mm | B mm | d mm |
| 0 - 300 | 0,05 | 20 | 20 | 15 | 17 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
