Magnetic dial support column total height 345 mm with central clamping
€23.70
Available, delivery time: 1-3 workdays
Product information "Magnetic dial support column total height 345 mm with central clamping"
Magnetic dial support column total height 345 mm
- with central clamping, thread M8, without magnetic base
- with fine adjustment, for dials 8 mm shank
- total height 345 mm
| Total height: | 345 mm |
|---|
Technical Data
| Gesamthöhe mm Total height mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
Fuß (LxBxH) mm Base (LxBxH) mm |
Magnetkraft kg Clamping force kg |
| 345 | 160 | 125 | 46 | 14 | - | - |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
Accessories
Granit plate 150 x 150 x 40 mm with thread M8 - made of dark granit- with M8 thread for dial supports- accuracy DIN 876/0 Dimensions : 150 x 150 x 40 mmThread : 1 x M8

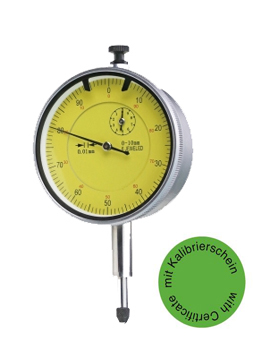

Dial indicator analog range 0 - 10 mm - with bearing jewels - accuracy according to DIN 878 - metal casing - with tolerance marks - shank Ø 8 H6- with certificate Reading 0,01 mmRange 10 mm
