Digital micrometers head 0-50 mm range DIN 863
Product information "Digital micrometers head 0-50 mm range DIN 863"
Digital micrometers head 0-50 mm range
- with carbide measuring face Ø 6,5 mm
- flat measuring face
- with ratchet
- shank 12 h7
- reading 0,001 mm or 0,00005''
- display with on/off, abs/inc, unit and set button
- accuracy 0,006 mm, DIN 863
Technical Data
| Messbereich mm Range mm |
Messfläche Meas. Face |
Genauigkeit mm Accuracy mm |

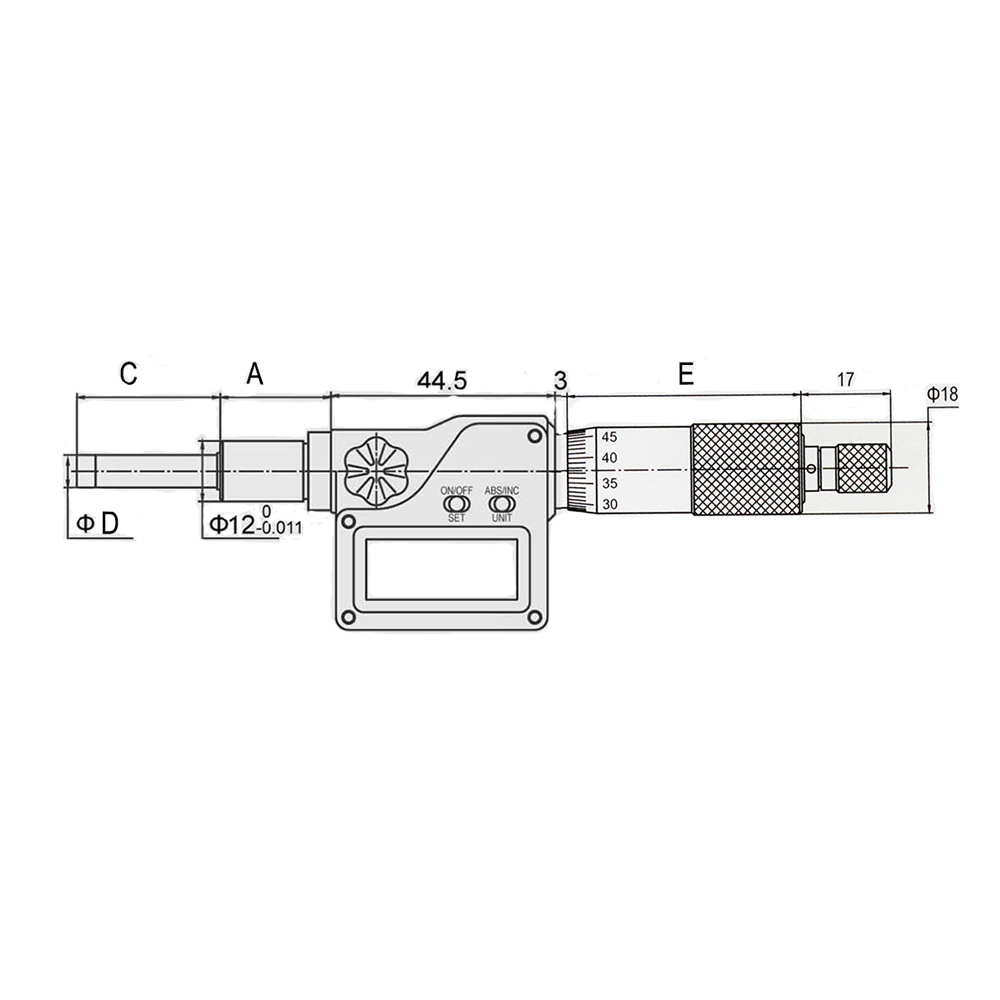

A mm | C mm | D mm | E mm |
| 0- 50 | planparallel flat |
0,006 | 35,5 | 53 | 7,5 | 72 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
