Disc micrometer 50 - 75 mm with non-rotating spindle
€92.40*
Available, delivery time: 1-3 workdays
Product information "Disc micrometer 50 - 75 mm with non-rotating spindle"
Disc micrometer 50 - 75 mm
- disc Ø 20 mm
- with non-rotating spindle, frame coated
- thimble chrome finished
- reading 0,01 mm
- with ratchet
- in case/box
Range 50 - 75 mm
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 50 - 75 mm |
| Reading: | 0,01 mm |
| Type: | analogue, with disc Ø 20 mm, with ratchet |

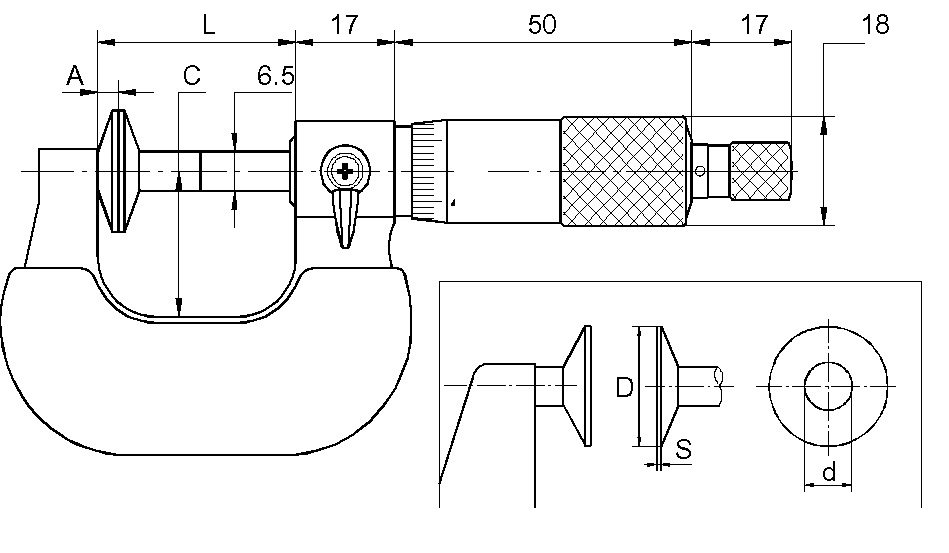

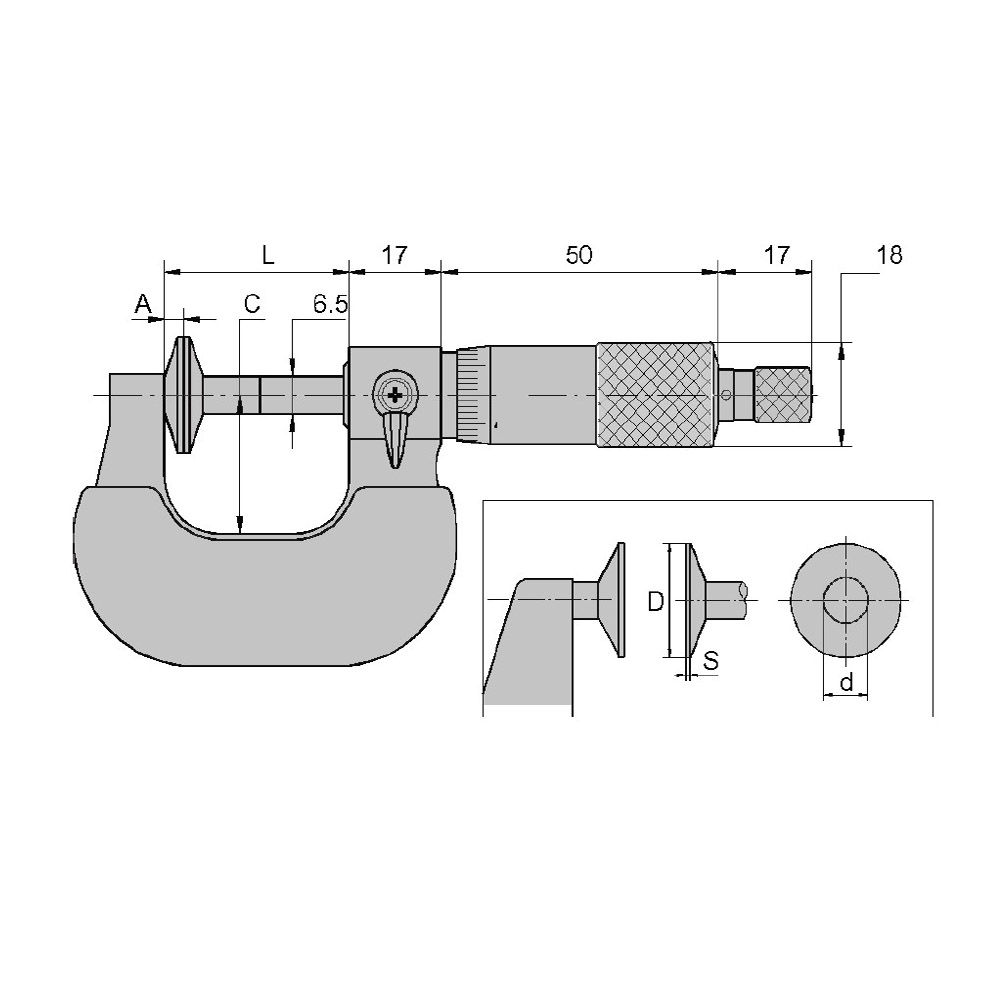

Technical Data
| Messbereich mm Range mm |
Messteller mm Disc mm |
Genauigkeit mm Accuracy mm |
A mm | C mm | L mm | d mm | S mm |
| 50 - 75 | 20 | 0,005 | 8 | 57 | 93 | 8 | 0,7 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
