Disc micrometer 75-100 mm with non-rotating spindle analogue
Product information "Disc micrometer 75-100 mm with non-rotating spindle analogue"
Disc micrometer 75-100 mm analogue with non-rotating spindle
- disc Ø 30 mm
- frame coated
- thimble chrome finished
- reading 0,01 mm
- with ratchet
- in case/box
Range 75 - 100 mm
| Accuracy: | 0,005 mm |
|---|---|
| Range: | 75 - 100 mm |
| Reading: | 0,01 mm |
| Type: | analogue, with disc Ø 30 mm, with ratchet |

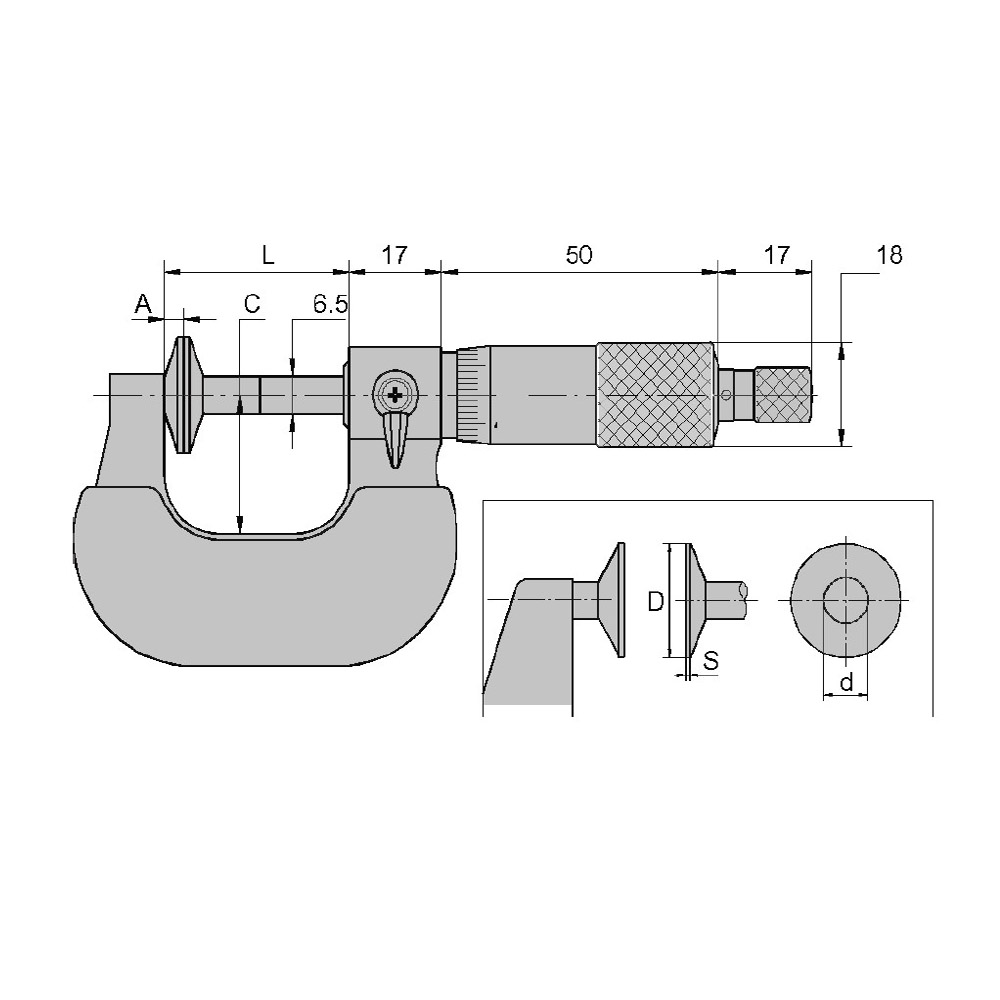

Technical Data
| Messbereich mm Range mm |
Messteller mm Disc mm |
Genauigkeit mm Accuracy mm |
A mm | C mm | L mm | d mm | S mm |
| 75 - 100 | 30 | 0,005 | 10 | 57 | 118 | 8 | 0,7 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
